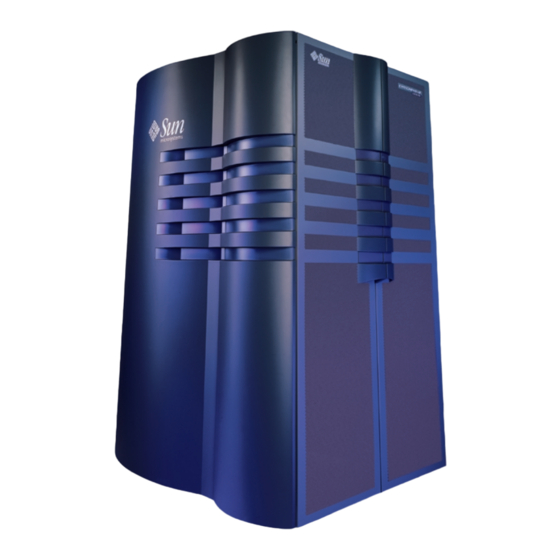

Sun Microsystems Sun Enterprise 10000 Instructions Manual
  1. Manuals
  2. Brands
  3. Sun Microsystems Manuals
  4. Storage
  5. Sun Enterprise 10000
  6. Instructions manual

Sun Microsystems Sun Enterprise 10000 Instructions Manual

Hide thumbs Also See for Sun Enterprise 10000:
Table of Contents

Advertisement

Quick Links

Download this manual
™
Sun Enterprise
10000
PCI Upgrade Instructions
For Use with Solaris 2.6 HW:3/98 or Subsequent
Compatible Versions and
SSP Version 3.1 or Subsequent Compatible Versions
Sun Microsystems, Inc.
4150 Network Circle
Santa Clara, CA 95054 U.S.A.
650-960-1300
Part No. 805-3831-12
March
2002, Revision A
Send comments about this document to: docfeedback@sun.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sun Enterprise 10000 and is the answer not in the manual?

Questions and answers

Related Manuals for Sun Microsystems Sun Enterprise 10000

Summary of Contents for Sun Microsystems Sun Enterprise 10000

  • Page 1 Sun Enterprise 10000 PCI Upgrade Instructions For Use with Solaris 2.6 HW:3/98 or Subsequent Compatible Versions and SSP Version 3.1 or Subsequent Compatible Versions Sun Microsystems, Inc. 4150 Network Circle Santa Clara, CA 95054 U.S.A. 650-960-1300 Part No. 805-3831-12 March 2002, Revision A Send comments about this document to: docfeedback@sun.com...
  • Page 2 Sun, Sun Microsystems, the Sun logo, AnswerBook2, docs.sun.com, et Solaris sont des marques de fabrique ou des marques déposées, ou marques de service, de Sun Microsystems, Inc. aux Etats-Unis et dans d’autres pays. Toutes les marques SPARC sont utilisées sous licence et sont des marques de fabrique ou des marques déposées de SPARC International, Inc.

  • Page 3: Table Of Contents

    Contents Preface ix Installing PCI Components on the Sun Enterprise 10000 System 1 Introduction 1 Powering Off a System Board 2 Removing a System Board 2 SBus Component Removal 3 Removing an SBus Card 3 Removing an SBus I/O Module 4...
  • Page 4 Sun Enterprise 10000 PCI Upgrade Instructions • March 2002...
  • Page 5 Figures SBus Card Removal 3 FIGURE 1 SBus I/O Module Removal 4 FIGURE 2 SBus Personality Plate Removal 5 FIGURE 3 Personality Plate Removal (Top View) 6 FIGURE 4 Personality Plate Identification 7 FIGURE 5 Personality Plate Installation (Top View) 7 FIGURE 6 PCI Personality Plate Installation 8 FIGURE 7...
  • Page 6 Sun Enterprise 10000 PCI Upgrade Instructions • March 2002...
  • Page 7 Tables Power Redundancy 16 TABLE 1...
  • Page 8 Sun Enterprise 10000 PCI Upgrade Instructions • March 2002...

  • Page 9: Preface

    Preface This document supplies the service provider with the information necessary to replace SBus components with PCI components on a system board. The procedures described here will require a senior service person with experience in major component disassembly and assembly. Read the procedures throughly before attempting to perform them.
  • Page 10 C shell superuser machine_name# Bourne shell and Korn shell Bourne shell and Korn shell superuser Accessing Sun Documentation Online A broad selection of Sun system documentation is located at: http://www.sun.com/products-n-solutions/hardware/docs x Sun Enterprise 10000 PCI Upgrade Instructions • March 2002...
  • Page 11 A complete set of Solaris documentation and many other titles are located at: http://docs.sun.com Sun Welcomes Your Comments Sun is interested in improving its documentation and welcomes your comments and suggestions. You can email your comments to Sun at: docfeedback@sun.com Please include the part number (805-3831-12) of your document in the subject line of your email.
  • Page 12 Sun Enterprise 10000 PCI Upgrade Instructions • March 2002...

  • Page 13: Installing Pci Components On The Sun Enterprise 10000 System

    This document contains the following sections to assist you with installing PCI components on your Sun Enterprise 10000 system. Powering off a system board Removing a system board...

  • Page 14: Powering Off A System Board

    5. Use the handles to extract the system board and place it on a flat, sturdy, grounded mat with the component side up. 6. Unscrew the Phillips screws from the system board cover and remove the cover. Sun Enterprise 10000 PCI Upgrade Instructions • March 2002...

  • Page 15: Sbus Component Removal

    3. Place the SBus card in an antistatic bag. SBUS 0 SLOT 0 SBUS 0 SLOT 1 SBUS 1 SLOT 0 SBUS 1 SLOT 1 Personality plate with EMI gasket SBus Card Removal FIGURE 1 Installing PCI Components on the Sun Enterprise 10000 System...

  • Page 16: Removing An Sbus I/O Module

    2. Unscrew the six 3/32-inch hex-head screws located on the compression connectors. 3. Remove the SBus I/O module ( FIGURE 2 After removal, place the Sbus I/O module into an antistatic bag. SBus I/O Module Removal FIGURE 2 Sun Enterprise 10000 PCI Upgrade Instructions • March 2002...

  • Page 17: Personality Plate Replacement

    System board faceplate Press personality plate and faceplate in this direction while installing or removing attachment screws SBus personality plate Remove attachment screws SBus Personality Plate Removal FIGURE 3 Installing PCI Components on the Sun Enterprise 10000 System...

  • Page 18: Installing A Pci Personality Plate

    Personality Plate Removal (Top View) FIGURE 4 Installing a PCI Personality Plate 1. Confirm that the type of personality plate that you are installing is correct for your application. See FIGURE 5 Sun Enterprise 10000 PCI Upgrade Instructions • March 2002...

  • Page 19: Figure 5 Personality Plate Identification

    FIGURE 6 Do not place the personality plate between the EMI gasket and face plate. Personality plate gasket Angled flange Front stiffener with notch Personality Plate Installation (Top View) FIGURE 6 Installing PCI Components on the Sun Enterprise 10000 System...

  • Page 20: Pci Component Installation

    PCI Personality Plate Installation FIGURE 7 PCI Component Installation Installing a PCI Front Bracket 1. Install the PCI front brackets. See FIGURE 8 Sun Enterprise 10000 PCI Upgrade Instructions • March 2002...

  • Page 21: Installing A Pci Riser Card

    PCI filler panel PCI Filler Panel Installation FIGURE 9 Installing a PCI Riser Card 1. Confirm that the riser card is the correct voltage for the PCI card to be installed. Installing PCI Components on the Sun Enterprise 10000 System...

  • Page 22: Figure 10 Pci Riser Card Installation

    FIGURE 10 Top PCI riser card Bottom PCI riser card Countersink screw Fastening hardware (bottom riser card only) Cone washer Fastening hardware for bottom riser only PCI Riser Card Installation FIGURE 10 Sun Enterprise 10000 PCI Upgrade Instructions • March 2002...

  • Page 23: Installing A Pci I/O Module

    2. Align the PCI I/O module with the system board compression connector locations. FIGURE 11 3. Align the standoffs on the system board with the PCI I/O module. System board PCI I/O module PCI I/O Module Installation FIGURE 11 Installing PCI Components on the Sun Enterprise 10000 System...

  • Page 24: Figure 12 Tightening Pattern For The Pci I/O Module

    5. Install discrete attachment hardware through the board and into the threaded standoff of the system board. for the proper orientation of the separate cone washer. FIGURE 13 Riser mounting bracket Cone washer Standoff Cone Washer and Standoff FIGURE 13 Sun Enterprise 10000 PCI Upgrade Instructions • March 2002...

  • Page 25: Installing A Pci Card

    3. Attach a wrist strap and take the PCI card out of the protective packaging. Inspect the connector to make sure that it is not damaged. 4. Confirm that the installed riser card is the correct voltage for the PCI card to be installed. Installing PCI Components on the Sun Enterprise 10000 System...

  • Page 26: Figure 15 Pci Card Installation

    0.8 Nm (7.1 inch-pounds). See FIGURE 15 8. Install the PCI front cover onto the front of the system board tightening to a torque setting of 0.8 Nm (7.1 inch-pounds). See FIGURE 16 Sun Enterprise 10000 PCI Upgrade Instructions • March 2002...

  • Page 27: Installing A System Board

    3. With the handles extended, slide the board into the slot until it begins to mate with the centerplane connector. 4. Apply firm pressure to the faceplate to engage the board with the centerplane connector. 5. Use the insertion handles to fully seat the board. Installing PCI Components on the Sun Enterprise 10000 System...

  • Page 28: Powering On A System Board

    N+1 AC Input Unit Redundancy single-phase circuits 1. If two supplies are failing, no AC module may be removed unless the two failed supplies are under the same AC module control. Sun Enterprise 10000 PCI Upgrade Instructions • March 2002...
  • Page 29 2. Turn on a system board by using hostview(1M) or by typing: ssp# power -on -sb x where x = 0–15. Refer to power(1M) for more information. Installing PCI Components on the Sun Enterprise 10000 System...
  • Page 30 Sun Enterprise 10000 PCI Upgrade Instructions • March 2002...
