Chapter 2: Controls and Indicators
Onboard Safety Fuse
04
EPIM Connector Pins
Flexible Network Bus Connection

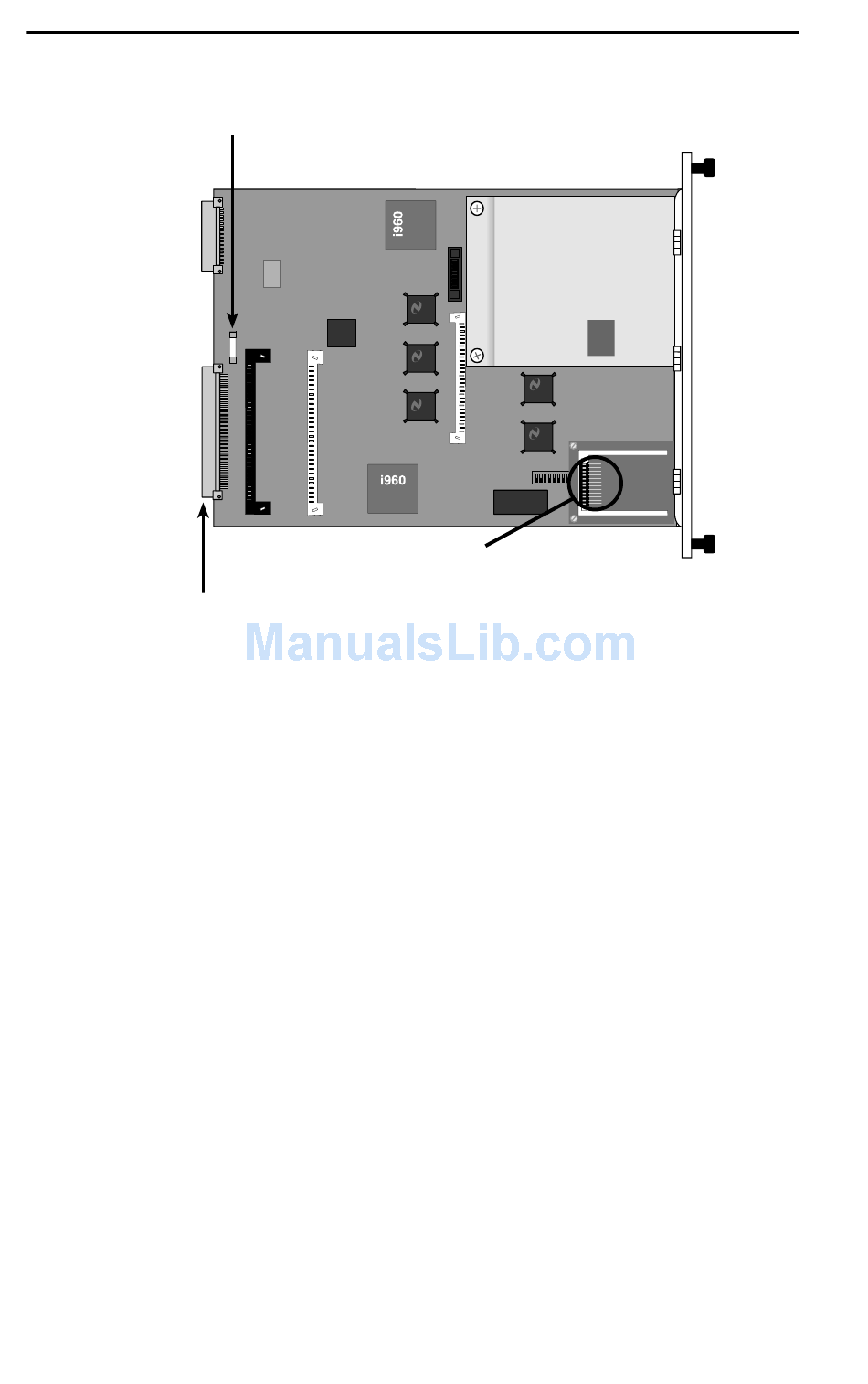

Figure 2-4 ESXMIM Internal Components
EPIM Connector
The EPIM connector is a set of built-in pins that connect the ESXMIM to
an optional EPIM module. The proper insertion of the EPIM will
automatically connect these pins to the connector located on the EPIM.
Onboard Safety Fuse
The onboard safety fuse protects the ESXMIM from potentially
damaging power spikes or surges. Under normal operation, the safety fuse
will not require customer concern.
Flexible Network Bus Connection
This multipin connector allows the ESXMIM to connect to Ethernet
Channel A of the MMAC Flexible Network Bus backplane.
2.1.3

LANVIEW LEDs

The LANVIEW LEDs on the ESXMIM faceplate provide diagnostic and
status monitoring information. The LEDs are identified by labels which
border the LED in question.
2-6 ESXMIM/ESXMIM-F2 Installation Guide
