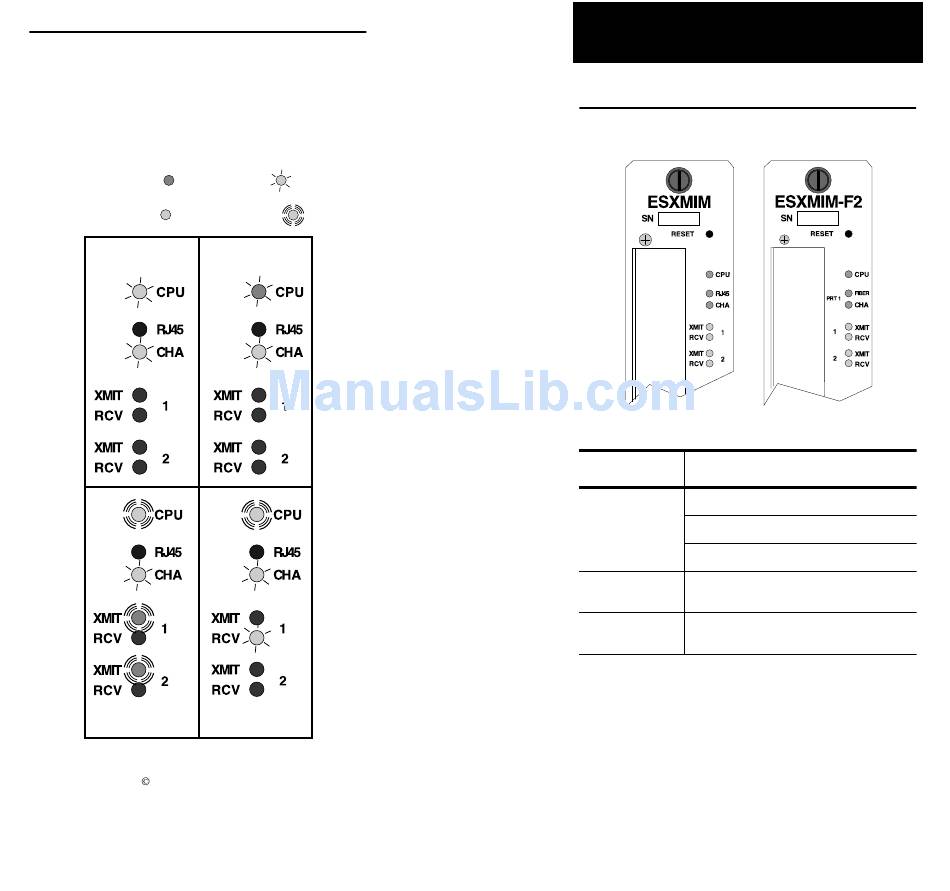

Boot-Up Sequence
When initially powered on or reset, the ESXMIM will
cycle through a series of diagnostics and startup
procedures. During this time, the LEDs will move
through the following conditions:
Amber: Steady:
Green: Flashing:
Step 1
Step 3
Copyright 1996 by Cabletron Systems, Inc.
PO Box 5005, Rochester, NH 03866-5005
All Rights Reserved. Printed in U.S.A.
9031868
April 1996
Step 2
Step 4
ESXMIM/ESXMIM-F2
Quick Reference Card
LANVIEW LEDs
LED
Green: Operating properly.
CPU Amber: Starting up.
Red: CPU error condition.
Green: Interface 1 assigned to faceplate
PRT1:RJ45
RJ45 port 1.
Green: Interface 1 assigned to faceplate
PRT1:FIBER
ST port pair 1.
Green: Interface 1 connected to MMAC
PRT1:CH A
backplane.
Green: Valid link from station to ESXMIM
interface.
RCV
Amber: Segment receiving.
Green: Segment transmitting.
XMIT
Red: Port in standby due to Spanning
Tree operation.
Description
