C.3

The ESXMIM allows memory upgrades for Shared DRAM, Local

DRAM, and FLASH EEPROM. This section explains how to locate and

add/replace a Single In-line Memory Module (SIMM) for any of these

memory types. For information on the available SIMM upgrades and

information on ordering them, contact your Cabletron Systems Sales

Representative.

C.3.1

Each memory type has a speciﬁc SIMM slot location on the ESXMIM

motherboard. When installing SIMM boards, make sure that you place

them in their proper slots. Figure C-3 illustrates the ESXMIM SIMM slot

locations and the direction (indicated by the white arrows) in which to

install the SIMMs.

ESXMIM/ESXMIM-F2 Installation Guide

ESXMIM

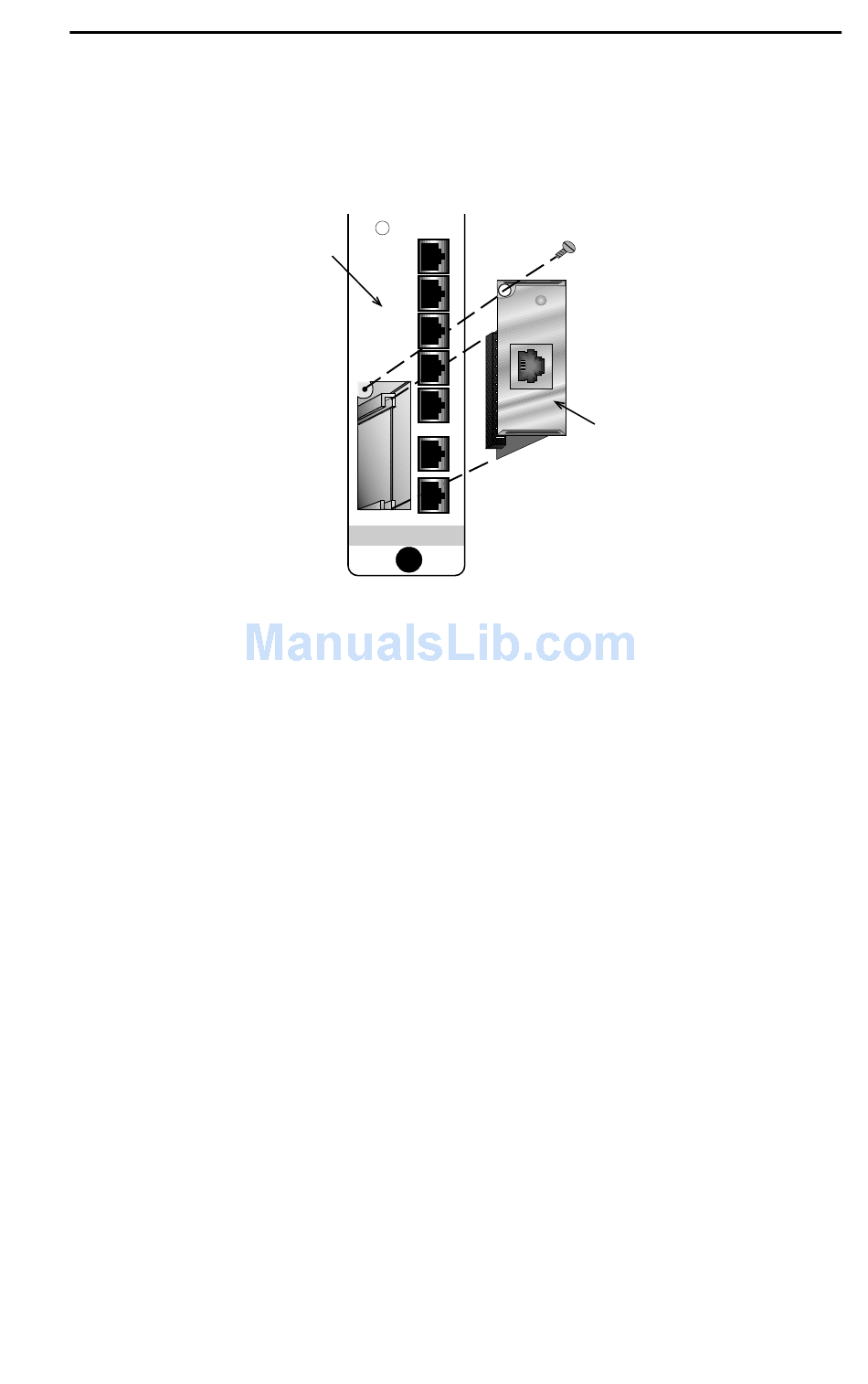

Figure C-2 Installing an EPIM

Mounting

Screw

EPIM

SIMM Upgrades

C-3
