Chapter 2: Controls and Indicators
2.1.2
Internal Components
The components listed in the following entries are all hidden inside the
MMAC chassis when the ESXMIM has been installed. These components
may be located by removing the ESXMIM from the chassis and holding
the module in the orientation shown in Figure 2-3 and Figure 2-4.
Power and Management Backplane Connection
SDRAM SIMM Slot
Dip Switch Bank
03
LDRAM SIMM Slot
FLASH Memory SIMM Slot

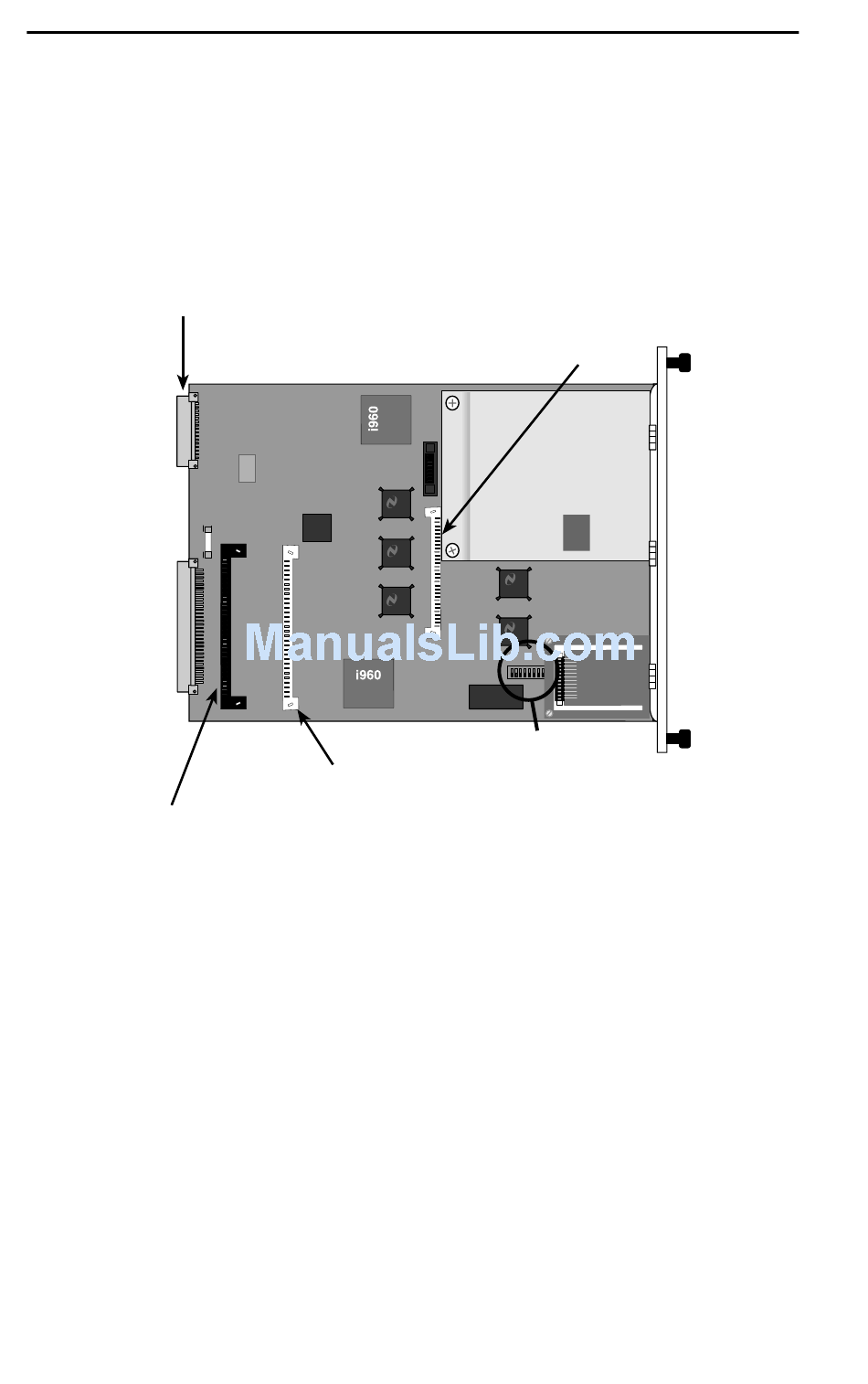

Figure 2-3 ESXMIM Internal Components
Power and Management Backplane Connection
The ESXMIM connects to the power and management backplane bus of
the MMAC chassis through this multipin connector.
2-4
ESXMIM/ESXMIM-F2 Installation Guide
