Locating Brim Connectors - Cabletron Systems ESXMIM Installation Manual

This appendix describes how to incorporate additional or expanded
capabilities into the ESXMIM. This appendix describes the procedures
for the addition of a BRIM or EPIM module and the addition of Single
In-line Memory Modules (SIMMs).
C.1

LOCATING BRIM CONNECTORS

This section points out Bridge Router Interface Module (BRIM)
connector locations on your ESXMIM board. Refer to your BRIM Guide
for specific installation procedures and additional information.

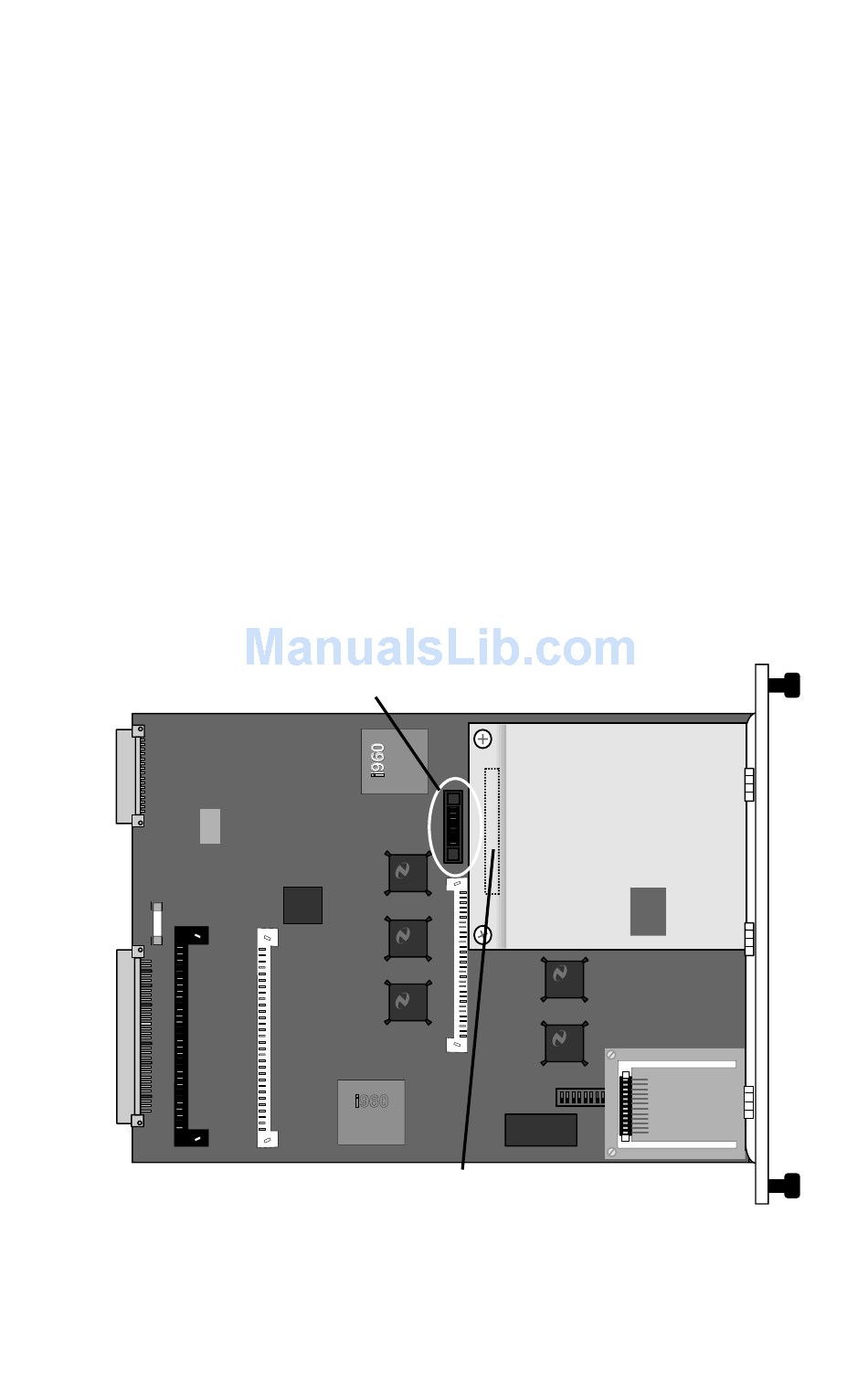

The following diagram (Figure C-1) shows BRIM connector locations for
the ESXMIM:
BRIM Ribbon Cable connector
Interface 7 BRIM Connector (under shield)
ESXMIM/ESXMIM-F2 Installation Guide
APPENDIX C
UPGRADING THE ESXMIM
i960 i960 i960
Figure C-1 BRIM Connector Locations
BRIM slot shield (removable)
