Appendix C: Upgrading the ESXMIM
C.3.2.2

Installing an SDRAM or LDRAM SIMM

Observe all antistatic precautions when handling sensitive
!
electronic equipment.
CAUT ION
1. Insert the SIMM, between the connector teeth in the SIMM slot.
2. Pivot the SIMM back until it locks into the clips in the SIMM slot, and
the SIMM holes fit over the SIMM slot posts. (See Figure C-5.)
SIMM Hole
Alignment Notch
SIMM Slot

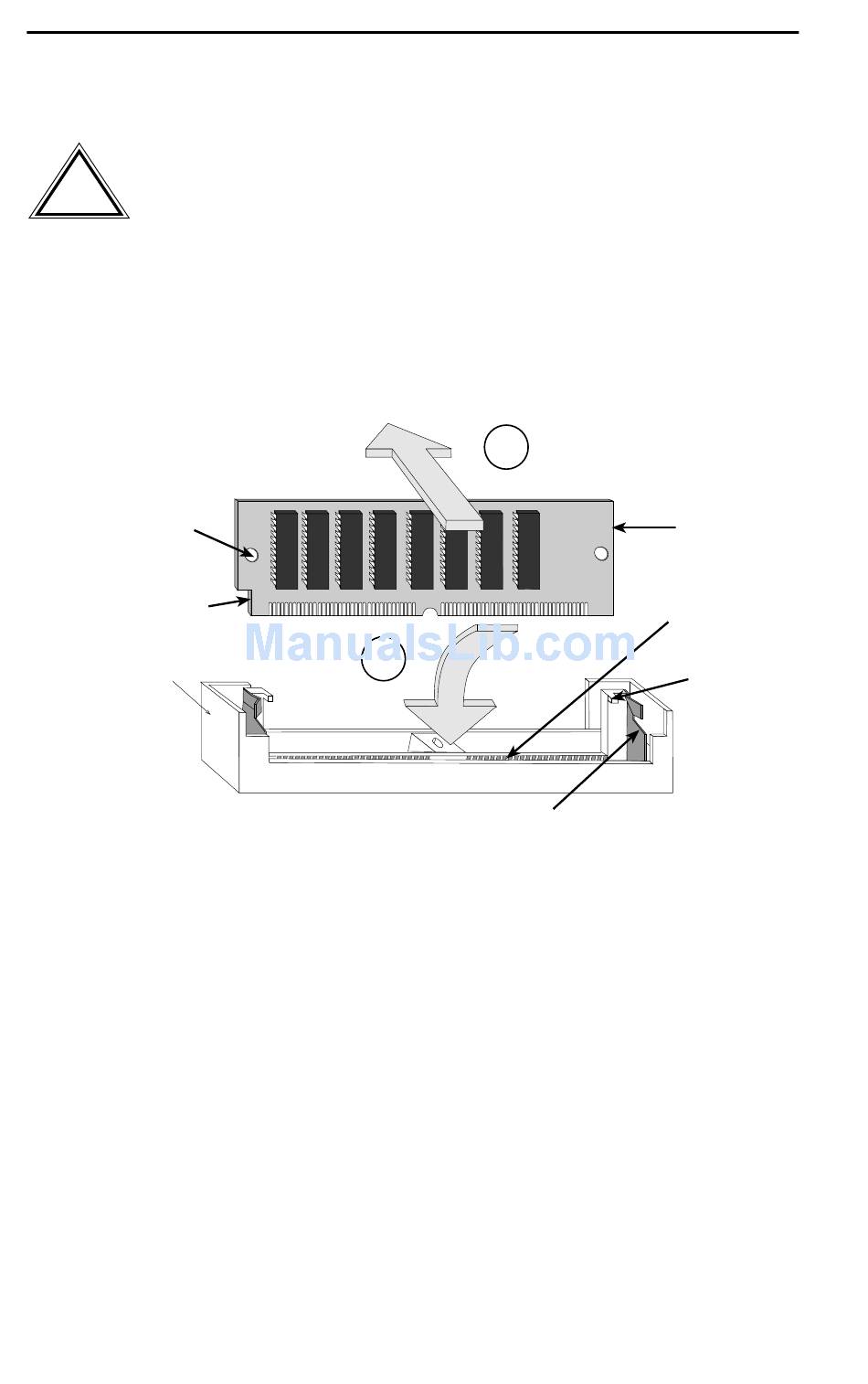

Figure C-5 Installing an SDRAM or LDRAM SIMM
C-6
2
1
Connector Clip
ESXMIM/ESXMIM-F2 Installation Guide
SIMM
Connector
Teeth
SIMM Slot
Post
