Chapter 3: Installation
8. Observe the status of the LANVIEW LEDs (Figure 3-4) on the
ESXMIM. When the CPU LED is amber, the module is in boot state.
During this approximately one minute period the ESXMIM cycles
through a series of internal diagnostics.
9. After the system boot procedure, the CPU LED should be flashing
green, indicating proper ESXMIM operation.
The ESXMIM defaults to Channel A operation on initial
NOTE
power-up. If there is no Ethernet repeater in the modular hub,
the ESXMIM must be configured to utilize the front panel
interface 1 port through LM.
Proceed to Section 3.5, Connecting to the Network, to connect the
appropriate network segments to the ESXMIM and individual EPIMs (for
connections to individual BRIMs see the appropriate BRIM Guides).
3-10

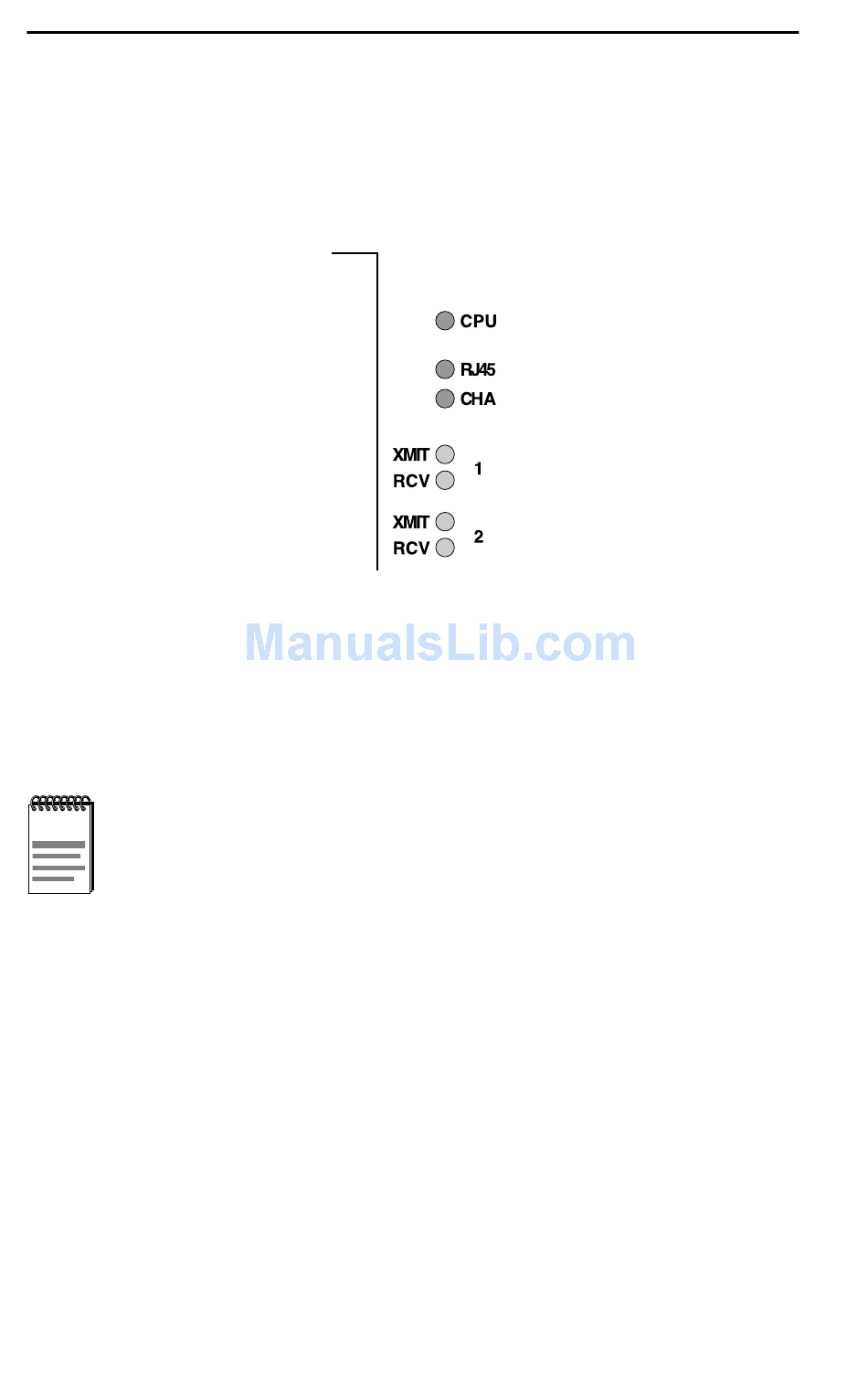

Figure 3-4 ESXMIM LANVIEW LEDs
ESXMIM/ESXMIM-F2 Installation Guide
