Chapter 3: Installation

3.5.1

Connecting a 10BASE-T Segment to the ESXMIM

Before connecting a segment to the ESXMIM, check each end of the

segment to verify wire crossover.

To establish a link, you must have an odd number of

NOTE

crossovers (preferably one) between 10BASE-T devices of the

same type (i.e., from repeater to repeater or switch to switch).

To connect a Twisted Pair Segment to the ESXMIM perform the

following steps:

1. Align the RJ45 connector with the socket of the RJ45 port. The

connector will only insert and lock if the raised locking clip of the

RJ45 connector is inserted into the correct location. Figure 3-5 shows

the RJ45 ports on the ESXMIM to which 10BASE-T cables may be

connected.

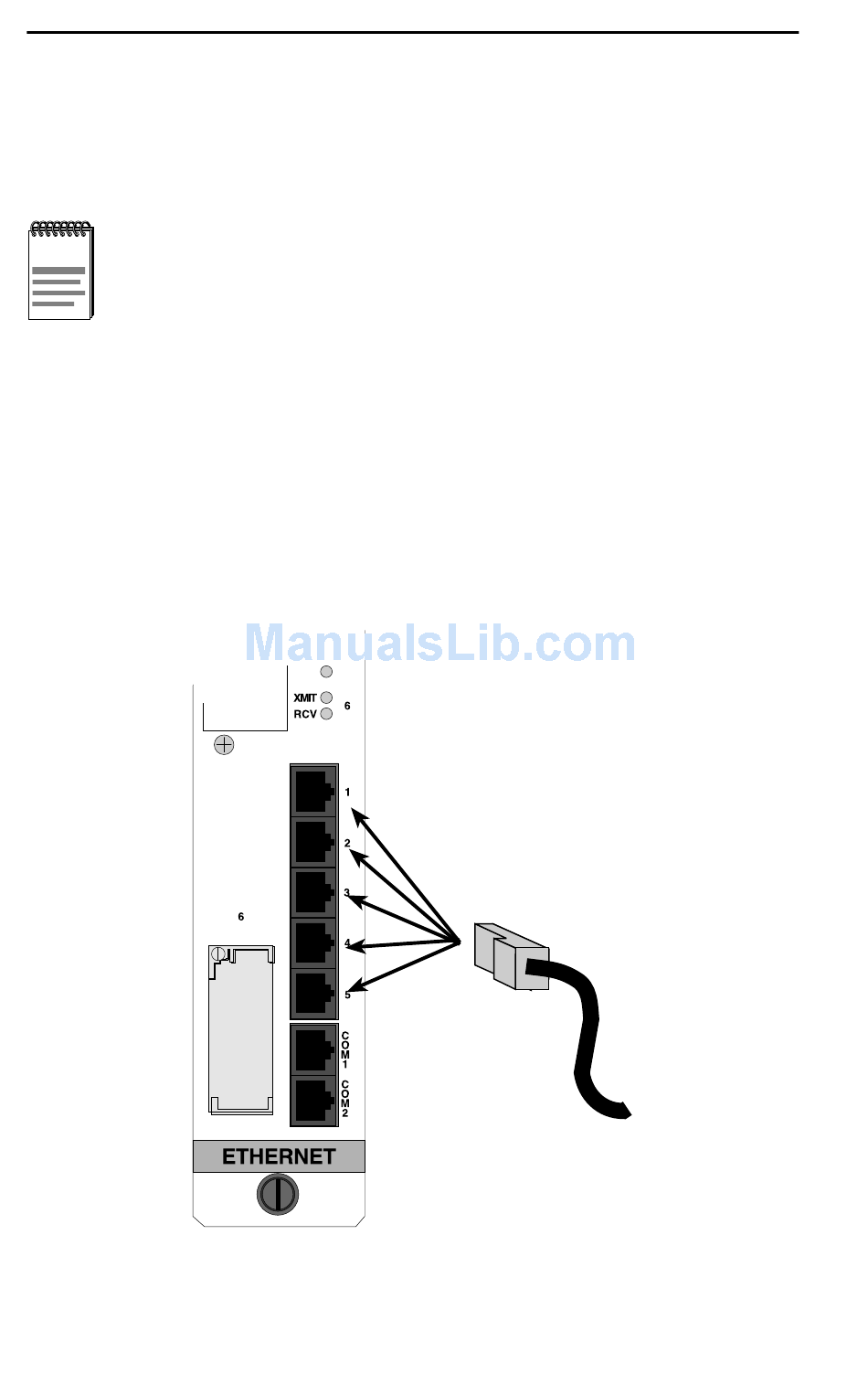

Figure 3-5 ESXMIM Twisted Pair Connection

3-12

ESXMIM/ESXMIM-F2 Installation Guide
