Cabletron Systems SmartSTACK ELS10-27TX Supplement Manual

Cabletron systems switch supplemental guide
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

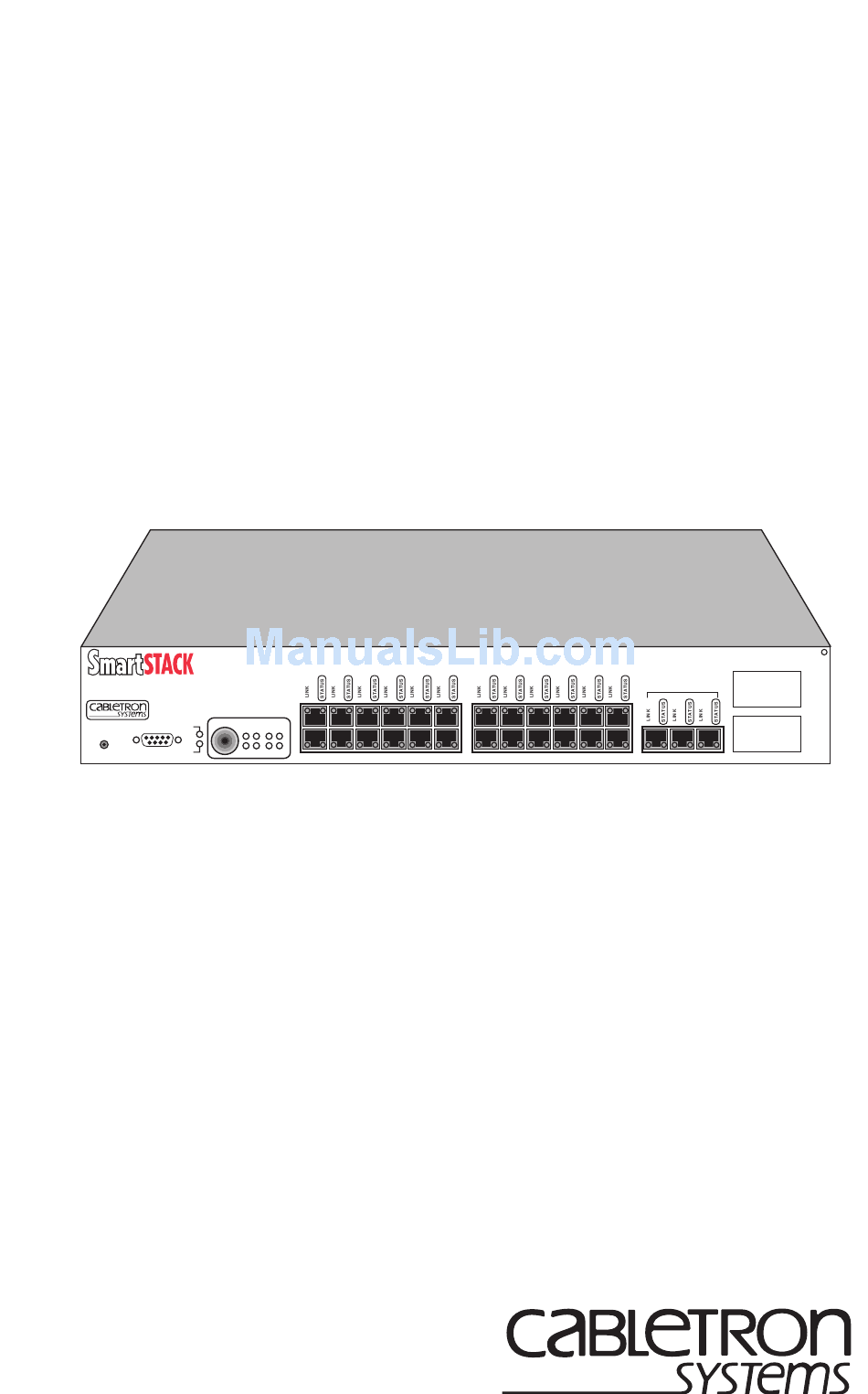

ETHERNET SWITCH
PORT STATUS MODE
STATUS
ELS10-27TX
PWR
COM
CPU
RESET
9033517
SmartSTACK ETHERNET
ELS10-27TX SUPPLEMENT
TX ACT
FDX MON
RX COL
100 USR
2X
4X
6X
8X
10X
12X
14X
16X
18X
20X
10BASE-T/100BASE-TX
22X
24X
25X
26X
27X
EPIM100
26
27

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartSTACK ELS10-27TX and is the answer not in the manual?

Questions and answers

Related Manuals for Cabletron Systems SmartSTACK ELS10-27TX

Summary of Contents for Cabletron Systems SmartSTACK ELS10-27TX

  • Page 1 SmartSTACK ETHERNET ELS10-27TX SUPPLEMENT ETHERNET SWITCH PORT STATUS MODE STATUS ELS10-27TX TX ACT FDX MON RESET RX COL 100 USR 9033517 EPIM100 10BASE-T/100BASE-TX...
  • Page 3 Only qualified personnel should perform installation procedures. Cabletron Systems reserves the right to make changes in specifications and other information contained in this document without prior notice. The reader should in all cases consult Cabletron Systems to determine whether any such changes have been made. The hardware, firmware, or software described in this manual is subject to change without notice.

  • Page 4: Industry Canada Notice

    Notice FCC NOTICE This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules.
  • Page 5 CABLETRON SYSTEMS, INC. PROGRAM LICENSE AGREEMENT IMPORTANT: THIS LICENSE APPLIES FOR USE OF PRODUCT IN THE FOLLOWING GEOGRAPHICAL REGIONS: CANADA MEXICO CENTRAL AMERICA SOUTH AMERICA BEFORE OPENING OR UTILIZING THE ENCLOSED PRODUCT, CAREFULLY READ THIS LICENSE AGREEMENT. This document is an agreement (“Agreement”) between You, the end user, and Cabletron Systems, Inc.
  • Page 6 Notice If the Program is exported from the United States pursuant to the License Exception TSR under the U.S. Export Administration Regulations, in addition to the restriction on transfer set forth in Sections 1 or 2 of this Agreement, You agree not to (i) reexport or release the Program, the source code for the Program or technology to a national of a country in Country Groups D:1 or E:2 (Albania, Armenia, Azerbaijan, Belarus, Bulgaria, Cambodia, Cuba, Estonia, Georgia, Iraq, Kazakhstan, Kyrgyzstan, Laos, Latvia, Libya, Lithuania, Moldova, North Korea, the People’s Republic of China,...
  • Page 7 CABLETRON SYSTEMS SALES AND SERVICE, INC. PROGRAM LICENSE AGREEMENT IMPORTANT: THIS LICENSE APPLIES FOR USE OF PRODUCT IN THE UNITED STATES OF AMERICA AND BY UNITED STATES OF AMERICA GOVERNMENT END USERS. BEFORE OPENING OR UTILIZING THE ENCLOSED PRODUCT, CAREFULLY READ THIS LICENSE AGREEMENT. This document is an agreement (“Agreement”) between You, the end user, and Cabletron Systems Sales and Service, Inc.
  • Page 8 Notice If the Program is exported from the United States pursuant to the License Exception TSR under the U.S. Export Administration Regulations, in addition to the restriction on transfer set forth in Sections 1 or 2 of this Agreement, You agree not to (i) reexport or release the Program, the source code for the Program or technology to a national of a country in Country Groups D:1 or E:2 (Albania, Armenia, Azerbaijan, Belarus, Bulgaria, Cambodia, Cuba, Estonia, Georgia, Iraq, Kazakhstan, Kyrgyzstan, Laos, Latvia, Libya, Lithuania, Moldova, North Korea, the People’s Republic of China,...
  • Page 9 CABLETRON SYSTEMS LIMITED PROGRAM LICENSE AGREEMENT IMPORTANT: THIS LICENSE APPLIES FOR THE USE OF THE PRODUCT IN THE FOLLOWING GEOGRAPHICAL REGIONS: EUROPE MIDDLE EAST AFRICA ASIA AUSTRALIA PACIFIC RIM BEFORE OPENING OR UTILIZING THE ENCLOSED PRODUCT, CAREFULLY READ THIS LICENSE AGREEMENT. This document is an agreement (“Agreement”) between You, the end user, and Cabletron Systems Limited (“Cabletron”) that sets forth your rights and obligations with respect to the Cabletron software program (“Program”) in the package.
  • Page 10 Notice If the Program is exported from the United States pursuant to the License Exception TSR under the U.S. Export Administration Regulations, in addition to the restriction on transfer set forth in Sections 1 or 2 of this Agreement, You agree not to (i) reexport or release the Program, the source code for the Program or technology to a national of a country in Country Groups D:1 or E:2 (Albania, Armenia, Azerbaijan, Belarus, Bulgaria, Cambodia, Cuba, Estonia, Georgia, Iraq, Kazakhstan, Kyrgyzstan, Laos, Latvia, Libya, Lithuania, Moldova, North Korea, the People’s Republic of China,...

  • Page 11: Safety Information

    CLASS 1 LASER TRANSCEIVERS THE FE-100F3 FAST ETHERNET INTERFACE MODULE, FPIM-05 AND FPIM-07 FDDI PORT INTERFACE MODULES, AND APIM-29 ATM PORT INTERFACE MODULE USE CLASS 1 LASER TRANSCEIVERS. READ THE FOLLOWING SAFETY INFORMATION BEFORE INSTALLING OR OPERATING THESE MODULES. The Class 1 laser transceivers use an optical feedback loop to maintain Class 1 operation limits. This control loop eliminates the need for maintenance checks or adjustments.

  • Page 12: Declaration Of Conformity

    Notice DECLARATION OF CONFORMITY Application of Council Directive(s): Manufacturer’s Name: Manufacturer’s Address: European Representative Name: European Representative Address: Conformance to Directive(s)/Product Standards: Equipment Type/Environment: We the undersigned, hereby declare, under our sole responsibility, that the equipment packaged with this notice conforms to the above directives. Manufacturer Mr.

  • Page 13: Table Of Contents

    1.3.3 802.1Q Trunk Ports ...1-4 1.3.3.1 Preserving Priority...1-4 1.3.3.2 Non-Preserving Priority ...1-5 1.3.4 Accessing Network Management Using VLANs...1-5 1.3.5 Switch Mode...1-6 1.3.6 Assigning Ports to a VLAN...1-6 1.3.7 Default Port VLAN ID ...1-6 1.3.8 Restricting VLANs (802.1Q Mode) ...1-7 1.3.9 Enable GVRP...1-7 1.4 Workgroups ...1-8...
  • Page 14 Contents 2.5.2 Route Command ...2-6 2.5.3 Port Command ...2-7 2.5.4 Switch Command...2-9 2.5.5 Trap Control Command ...2-10 2.5.6 VLAN Command...2-11 CHAPTER 3 CONFIGURING VLANS USING SNMP 3.1 Overview...3-1 3.2 The Config Table ...3-1 3.2.1 Modifying, Creating and Deleting VLANs ...3-2 3.2.1.1 Modifying a VLAN ...3-2...
  • Page 15 4.3.7 Name (VlanConfigName)...4-8 4.3.8 Status (VlanConfigStatus) ...4-9 4.3.9 Establish (VlanConfigEstablish) ...4-9 4.4 Device Entries...4-10 4.4.1 Active (VlanNumActiveEntries) ...4-10 4.4.2 Static Configured (VlanNumConfiguredEntries) ...4-10 4.4.3 Maximum Number (VlanMaxNumEntries) ...4-11 4.4.4 Configuration Table (VlanConfigTable) ...4-11 4.5 Egress Table ...4-12 4.5.1 Egress Table (VlanConfigEgressTable) ...4-12 4.5.2 Egress Entry (VlanConfigEgressEntry)...4-12 4.5.2.1 VlanConfigEgressEntry...4-13 4.5.3 Index (VlanEgressIndex) ...4-13...
  • Page 16 Contents CHAPTER 5 CONFIGURING WORKGROUPS USING LCM 5.1 Overview...5-1 5.2 Workgroup Configuration Examples...5-2 5.3 LCM Workgroup Commands ...5-4 CHAPTER 6 CONFIGURING WORKGROUPS USING SNMP 6.1 Overview...6-1 6.2 Workgroup Configuration Procedures...6-2 CHAPTER 7 WORKGROUP MIB OBJECTS 7.1 Overview...7-1 7.2 Workgroups Using SNMP ...7-1 7.2.1 Next Number (WorkGroupNextNumber)...7-1 7.2.2 Current Count (WorkGroupCurrentCount) ...7-2 7.2.3 MAX Count (WorkGroupMaxCount) ...7-2...

  • Page 17: About This Supplement

    • Chapter 7, Workgroup MIB Objects, provides a list of Workgroup MIB Objects used to configure Workgroups using SNMP. • Appendix A, Virtual LANs, describes how the switch uses VLANs to create isolated network domains, and provides illustrations of VLAN switch...

  • Page 18: Getting Help

    A description of any action(s) already taken to resolve the problem (e.g., changing mode switches, rebooting the unit, etc.) • The serial and revision numbers of all involved Enterasys Networks products in the network • A description of your network environment (layout, cable type, etc.) •...

  • Page 19: Document Conventions

    DOCUMENT CONVENTIONS The following conventions are used throughout this document: LCM commands, prompts, and information displayed by the computer appear in Courier typeface, for example: Current Number of Learned Addresses: 133 Information that you enter appears in Courier bold typeface, for example: ELS10-27>workgroup Information that you need to enter with a command is enclosed in angle brackets <...

  • Page 20: Related Documentation

    About This Supplement RELATED DOCUMENTATION This document should be used in conjunction with the following document to assist the user in using this product: Document Title SmartSTACK Ethernet ELS10-27TX User Guide xviii Part Number 9032800...

  • Page 21: Chapter 1 Introduction

    Version 1.00.xx and Version 1.01.00 of the SmartSTACK Ethernet ELS10-27TX product. 1.2 USING VLANS ON THE ELS10-27TX This section describes Virtual Local Area Networks (VLANs) support for the SmartSTACK Ethernet ELS10-27TX switch. This section describes support for the IEEE 802.1Q standard.

  • Page 22: Ieee 802.1Q Standard

    1.2.1 IEEE 802.1Q Standard IEEE 802.1Q is a standard for virtual bridged local area networks (VLANs). It provides an alternate method for forwarding packets through a switch. In an 802.1D (Spanning Tree) bridge, packets are forwarded in accordance with the spanning tree as dynamically created by the 802.1D protocol (Bridge Protocol...

  • Page 23: 802.1Q Mode On Els10-27Tx

    1.3.1 VLAN Hybrid Ports (802.1Q Mode) A VLAN Hybrid port is used to connect one or more VLAN-aware or VLAN- unaware devices to the switch. Both tagged and untagged frames can be received and transmitted on Hybrid ports. If a port on the ELS10-27TX is not configured as an Access port, it is a Hybrid port.

  • Page 24: 802.1Q Trunk Ports

    Introduction 1.3.3 802.1Q Trunk Ports An 802.1Q trunk port passes all packets with the tag in place. It will not strip the tag. The port must be a hybrid port. There is no explicit command to create 802.1Q trunks ports. The following are two ways of implementing trunk ports: •...

  • Page 25: Non-Preserving Priority

    VLAN. If multiple VLANs are configured on a switch, you can configure multiple IP addresses provided they are on separate subnets. Therefore, when an IP address is assigned to a switch, the VLAN ID for the subnet must be specified. When the network management processor issues a response to a network management packet, it selects the correct VLAN ID to use based on the IP subnet.

  • Page 26: Switch Mode

    The unit will not operate in a mixed mode. The default is to operate in 802.1D mode. For further information, refer to Switch Command in Chapter 2, Enhancements to LCM Commands.

  • Page 27: Restricting Vlans (802.1Q Mode)

    1.3.8 Restricting VLANs (802.1Q Mode) This command will allow you to specify a list of VLAN IDs that should not be dynamically learned by GVRP. When the management processor receives a GVRP packet, it checks this database to determine if the learning of this ID should be restricted.

  • Page 28: Workgroups

    Workgroup. The packet will then be forwarded or filtered based on that single Workgroup marking. When a packet leaves the switch, the packet will appear just as it did when it was received on the inbound port.

  • Page 29: Default Gateway

    1.5 DEFAULT GATEWAY A default gateway field was added to the router command to allow communication to a device on a subnet not configured on this switch. For information on configuring the Default Gateway, refer to Chapter 2, Enhancements to LCM Commands.

  • Page 31: Chapter 2 Enhancements To Lcm Commands

    The Local Console Manager (LCM) is a command-line interface built into the SmartSTACK Ethernet ELS10-27TX. The LCM enables you to monitor, manage, and configure the switch through the RS232C connection attached to any non- intelligent terminal or workstation running terminal emulation.

  • Page 32: Lcm Command Summary

    , you must select one of the displayed options. For To ... display this menu set or display IP addresses set or display port parameters reboot the unit after SECONDS set or display switch parameters configure IEEE Vlans set or display workgroups workgroups [name...

  • Page 33: Lcm Command Syntax

    2.3.2 LCM Command Syntax The following is a subset of LCM commands and syntax: switch [802.1d | 802.1Q] cut[-through] | store[-and-forward] [back[pressure] {on | off}] enable [PORT-RANGE [RIP] [TransmitPacing] [Address_Limit]] port [PORT-RANGE [speed {auto | 10[Mbps] | 100[Mbps]}] [vlan {name |VLAN-ID}] (The default VLAN ID for that port.)

  • Page 34: Basic Lcm Commands

    2.4 BASIC LCM COMMANDS To manage the SmartSTACK Ethernet ELS10-27TX using LCM, you first must connect the switch to an ASCII terminal or terminal emulator. To use LCM, begin by pressing the Enter key several times to get the LCM prompt (ELS10-27>).

  • Page 35: Lcm Commands

    The following is a list of commands that were modified for this release: • Enable Command • Route Command • Port Command • Switch Command • Trap Control Command • VLAN Command Commands are listed alphabetically in this chapter. 2.5.1 Enable Command (Address Limit) The address limit parameter was added to the enable command.

  • Page 36: Route Command

    2.5.2 Route Command A default gateway field was added to the route command to allow communication to a device on a subnet not configured on this switch. The gateway address must be for a subnet already configured on this switch. A VLAN ID is not necessary for the gateway as it will use the VLAN ID associated with the subnet address already configured.

  • Page 37: Port Command

    2.5.3 Port Command The Port command allows you to configure the port(s) on the unit in regards to speed, duplex mode, broadcast storm protection values, GVRP, access ports, control, and the default VLAN ID used on each port. If the default VLAN ID for a port was configured, the port will not automatically become a member of that VLAN.
  • Page 38 Enhancements to LCM Commands The following are examples of three port sub-commands on VLANs: [vlan {name |VLAN-ID}] ELS10-27>port 5-9 vlan 0x00B [GVRP {On | off}] ELS10-27>port 5-9 gvrp on [access {add | del[ete]}]] ELS10-27>port 5-9 access add...

  • Page 39: Switch Command

    The SmartSTACK Ethernet ELS10-27TX supports two forms of Virtual LANs. One is the IEEE 802.1Q standard (spanning tree) and the other is Workgroups. The switch command allows you to select the mode in which the SmartSTACK Ethernet ELS10-27TX operates. Prior to changing to 802.1Q mode, all Workgroups must NOTE be deleted.

  • Page 40: Trap Control Command

    NMS IP address that it learned. To avoid this, configure an IP address for the intended NMS. If the trap command is not used, the switch will continue to learn the IP address of the last NMS it heard from and will send traps only to that address.

  • Page 41: Vlan Command

    Refer to the port command to change the default VLAN ID for a port. If the restriction option is specified, the switch will not allow a VLAN to be established for that ID on the specified group of ports from either a user interface or GVRP.

  • Page 43: Chapter 3 Configuring Vlans Using Snmp

    CONFIGURING VLANS USING SNMP 3.1 OVERVIEW This chapter describes how to create, delete or modify VLANs on the SmartSTACK Ethernet ELS10-27TX using SNMP. This chapter describes the procedure for using the following VLAN Configuration MIBs: • The Config Table • The Config Egress List •...

  • Page 44: Modifying, Creating And Deleting Vlans

    Configuring VLANs Using SNMP 3.2.1 Modifying, Creating and Deleting VLANs VLAN information that is being modified, created or deleted will remain in local variables until the status variable is set. At that time, the local variables will be processed, the Global VLAN Table will be updated and the hardware configuration modified.

  • Page 45: Creating A Vlan

    • If the IP address was specified, the IP address is set. • If the switch is operating in 802.1Q mode, the following will be performed by the firmware: The hardware is informed of which ports on the VLAN to delete.

  • Page 46: The Config Egress List

    Configuring VLANs Using SNMP The selected ports are removed from the list of ports in the table entry. If there are no ports left on the VLAN, and the VLAN ID does not equal 0x001, then the BPDU addresses and the MP MAC address is deleted from the address database.

  • Page 47: Modifying A Config Egress List Entry

    The ports selected are added to the existing list of ports in the table entry. If the switch is operating in 802.1Q mode, the following will be performed by the firmware: • Inform the hardware of the new PVID for the port(s).

  • Page 48: The Filter Gvrp Table

    Configuring VLANs Using SNMP 3.4 THE FILTER GVRP TABLE The Filter GVRP Table can be used to inhibit VLANs from being learned via GVRP. It can also be used to inhibit a user from accidentally configuring a port on a VLAN they do not want. In the other tables, there are several local variables associated with the Filter GVRP Table, such as index, the VLAN ID, the list of ports, the status, and establish.

  • Page 49: Creating A Filter

    If all of these checks pass, the VLAN ID is copied into the table entry and the ports are added to the existing port mask. If the switch is operating in 802.1Q mode, the command is passed to the GVRP task, all of the learned addresses on the VLAN are deleted, and all ARP entries are flushed.

  • Page 50: The Static Mac Entry

    Configuring VLANs Using SNMP 3.5 THE STATIC MAC ENTRY Only three local variables are accessible, the VLAN ID; the MAC address, and the port to associate with this entry. MAC addresses added via this mechanism are not saved after a reboot, and will not age. For a list of Static MAC variables, refer to Chapter 3, Configuring VLANs Using SNMP.

  • Page 51: Chapter 4 Vlan Mib Objects

    4.1 OVERVIEW This chapter describes the MIB objects that relate to configuring 802.1Q VLANs. The MIB system groups described alphabetically in this chapter are as follows: • Bridge Configuration • Configuration Entries • Device Entries • Egress Table • Filter GVRP •...

  • Page 52: Operating Mode (Vlanoperatingmode)

    VLAN MIB Objects 4.2.2 Operating Mode (VlanOperatingMode) This object selects the mode of operation (802.1D = 1 or 802.1Q = 2). The switch can operate as an 802.1d switch, or as an 802.1d switch with IEEE VLAN capability (802.1Q). A read of this object will return the current operating mode.

  • Page 53: Gvrp Enable (Vlangvrpenable)

    4.2.4 GVRP Enable (VlanGVRPEnable) If the switch is operating in 802.1Q mode, it selects whether GVRP protocol messages should be processed and VLANs configured accordingly for each port on the switch. Each octet within the value of this object specifies a set of eight ports. This is a list of all ports within the VLAN.

  • Page 54: Access List (Vlanaccesslist)

    VLAN MIB Objects 4.2.5 Access List (VlanAccessList) A list of ports that should act as ‘Access Ports’. These ports strip all tags on egress and also make use of a shared database that will automatically be kept by the firmware. Each octet within the value of this object specifies a set of eight ports.

  • Page 55: Configuration Entries

    4.3 CONFIGURATION ENTRIES This section provides you with VLAN configuration entries. For instructions on configuring VLANs, refer to Chapter 3, Configuring VLANs Using SNMP. 4.3.1 Entry (VlanConfigEntry) This entry allows configuration of specific VLAN entries. Although this is configured as a table, there is only a single instance. Entries must be referenced as simple variables.

  • Page 56: Index (Vlanconfigindex)

    VLAN MIB Objects 4.3.2 Index (VlanConfigIndex) The VLANConfigIndex is the index into the table of VLANs. The table has 32 entries (0 - 31). An index value outside this range will reference the local variable. For example, if the index is set to -1 and the els10-27VlanConfigVID object is read, the local variable (not the table entry) is read.

  • Page 57: Ports (Vlanconfigports)

    4.3.4 Ports (VlanConfigPorts) A bit mask of the ports in this VLAN. Each octet within the value of this object specifies a set of eight ports. This is a list of all ports within the VLAN. From right to left, the first octet specifies ports 1-8, the second octet specifies ports 9- 16, the third octet specifies ports 17-24 and the fourth octet specifies ports 25-27.

  • Page 58: Ip Mask (Vlanconfigipmask)

    VLAN MIB Objects 4.3.6 IP Mask (VlanConfigIPMask) The IP subnet mask to be used with this IP address. els10-27VlanConfigIPMask OBJECT-TYPE SYNTAX IPADDRESS ACCESS read-write STATUS mandatory ::= { els10-27VlanConfigEntry 5 } The MIB OBJECT IDENTIFIER for accessing the VlanConfigIPMask is: OID 1.3.6.1.4.1.97.9.20.6.4.1.5 4.3.7 Name (VlanConfigName) The ASCII name associated with this VLAN.

  • Page 59: Status (Vlanconfigstatus)

    4.3.8 Status (VlanConfigStatus) A set with any value will create, modify or delete entries in the specified VLAN according to the value in els10-27VlanConfigEstablish. els10-27VlanConfigStatus OBJECT-TYPE SYNTAX INTEGER ACCESS read-write STATUS mandatory ::= { els10-27VlanConfigEntry 7 } The MIB OBJECT IDENTIFIER for accessing the VlanConfigStatus is: OID 1.3.6.1.4.1.97.9.20.6.4.1.7 4.3.9 Establish (VlanConfigEstablish) A set with the value create(1), causes an entry to be created in the els10-...

  • Page 60: Device Entries

    VLAN MIB Objects 4.4 DEVICE ENTRIES 4.4.1 Active (VlanNumActiveEntries) The number of active VLAN entries for the device. This includes the total number of both static and dynamic VLANs presently in use. els10-27VlanNumActiveEntries OBJECT-TYPE SYNTAX INTEGER ACCESS read-only STATUS mandatory ::= { els10-27VlanConfigVlan 1 } The MIB OBJECT IDENTIFIER for accessing the VlanNumActiveEntries is: OID 1.3.6.1.4.1.97.9.20.6.1...

  • Page 61: Maximum Number (Vlanmaxnumentries)

    4.4.3 Maximum Number (VlanMaxNumEntries) The maximum number of VLAN entries for the device. A value of 32 will be returned. els10-27VlanMaxNumEntries OBJECT-TYPE SYNTAX INTEGER ACCESS read-only STATUS mandatory ::= { els10-27VlanConfigVlan 3 } The MIB OBJECT IDENTIFIER for accessing the VlanMaxNumEntries is: OID 1.3.6.1.4.1.97.9.20.6.3 4.4.4 Configuration Table (VlanConfigTable) This table allows for the creation, deletion, and modification of specific VLANs.

  • Page 62: Egress Table

    VLAN MIB Objects 4.5 Egress Table 4.5.1 Egress Table (VlanConfigEgressTable) This table allows for the specifying of the default VLAN ID for a specific port. If NOT configured as an ‘Access’ port, then packets containing this VLAN ID will have the tag stripped on egress, if it matches the PVID. This will set the PVID for each port contained within the list.

  • Page 63: Vlanconfigegressentry

    4.5.2.1 VlanConfigEgressEntry Els10-27VlanConfigEgressEntry ::= SEQUENCE { els10-27VlanEgressIndex INTEGER, els10-27VlanEgressVID OCTET STRING, els10-27VlanEgressList OCTET STRING, els10-27VlanEgressStatus INTEGER 4.5.3 Index (VlanEgressIndex) The index into the VLAN table. A port must be a member of this VLAN prior to assigning this ID as the default. The table has 32 entries (0 - 31). An index value outside this range will reference the local variable.

  • Page 64: Vid (Vlanegressvid)

    VLAN MIB Objects 4.5.4 VID (VlanEgressVID) The 12-bit VLAN Identifier associated with the configured VLAN. The valid range is 1..4094. els10-27VlanEgressVID OBJECT-TYPE SYNTAX OCTET STRING (SIZE (1..8)) ACCESS read-write STATUS mandatory ::= { els10-27VlanConfigEgressEntry 2 } The MIB OBJECT IDENTIFIER for accessing the VlanEgressVID is: OID 1.3.6.1.4.1.97.9.20.6.5.1.2 4.5.5 List (VlanEgressList) The set of ports to which traffic destined for the VLAN specified by els10-...

  • Page 65: Status (Vlanegressstatus)

    4.5.6 Status (VlanEgressStatus) A set with any value will change all associated entries in the els10-27VlanEgressList to have the default VLAN ID set to the value in els10-27VlanEgressVID using the els10-27VlanEgressIndex value to index into the table. els10-27VlanEgressStatus OBJECT-TYPE SYNTAX INTEGER ACCESS read-write STATUS mandatory ::= { els10-27VlanConfigEgressEntry 4 }...

  • Page 66: Filter Gvrp

    VLAN MIB Objects 4.6 FILTER GVRP 4.6.1 GVRP (VlanFilterGVRPTable) This table allows for the specifying of VLAN ID’s that will be restricted from being learned by the device. If a GVRP packet is received specifying this VLAN ID, it will be ignored. els10-27VlanFilterGVRPTable SYNTAX SEQUENCE OF Els10-27VlanFilterGVRPEntry ACCESS not-accessible...

  • Page 67: Vlanfiltergvrpentry

    4.6.2.1 VlanFilterGVRPEntry Els10-27VlanFilterGVRPEntry ::= SEQUENCE { els10-27VlanFilterGVRPIndex INTEGER, els10-27VlanFilterGVRPVID OCTET STRING, els10-27VlanFilterGVRPList OCTET STRING, els10-27VlanFilterGVRPStatus INTEGER, els10-27VlanFilterGVRPEstablishVID INTEGER 4.6.3 VlanFilterGVRPIndex The index into the VLAN Filter table. A maximum of 32 VLAN IDs can be restricted from being learned via GVRP. The table has 32 entries (0 - 31). An index value outside this range will reference the local variable.

  • Page 68: Vid (Vlanfiltergvrpvid)

    VLAN MIB Objects 4.6.4 VID (VlanFilterGVRPVID) The 12-bit VLAN Identifier associated with the configured VLAN. The valid range is 1..4094. els10-27VlanFilterGVRPVID OBJECT-TYPE SYNTAX OCTET STRING (SIZE (1..8)) ACCESS read-write STATUS mandatory ::= { els10-27VlanFilterGVRPEntry 2 } The MIB OBJECT IDENTIFIER for accessing the VlanFilterGVRPVID is: OID 1.3.6.1.4.1.97.9.20.6.6.2 4.6.5 List (VlanFilterGVRPList) The set of ports that will be restricted from learning of a VLAN ID from a GVRP...

  • Page 69: Status (Vlanfiltergvrpstatus)

    4.6.6 Status (VlanFilterGVRPStatus) A set with any value enables all associated entries in els10-27VlanFilterGVRPVID table for the specified VLAN. els10-27VlanFilterGVRPStatus OBJECT-TYPE SYNTAX INTEGER ACCESS read-write STATUS mandatory ::= { els10-27VlanFilterGVRPEntry 4 } The MIB OBJECT IDENTIFIER for accessing the VLANFilterGVRPStatus is: OID 1.3.6.1.4.1.97.9.20.6.6.4 4.6.7 EstablishVID (VlanFilterGVRPEstablishVID) A set of the value create(1), will cause an entry to be created in the...

  • Page 70: Table (Vlanstatictable)

    VLAN MIB Objects 4.7 STATIC MAC ADDRESS ENTRIES 4.7.1 Table (VlanStaticTable) Allows for configuration of specific VLAN/MAC Address entries and to specify the port to which traffic destined for this address pair should be forwarded. These entries will not be aged out of the forwarding data base, but they will not be saved across a reboot.

  • Page 71: Vlanstaticentry

    4.7.2.1 VlanStaticEntry Els10-27VlanStaticEntry ::= SEQUENCE { els10-27VlanStaticVID OCTET STRING, els10-27VlanStaticMAC PhysAddress, els10-27VlanStaticPort INTEGER, els10-27VlanStaticEstablish INTEGER } 4.7.3 VID (VlanStaticVID) The 12-bit VLAN Identifier associated with the configured VLAN. The valid range is 1..4094. els10-27VlanStaticVID OBJECT-TYPE SYNTAX OCTET STRING (SIZE (1..8)) ACCESS read-write STATUS mandatory ::= { els10-27VlanStaticEntry 1 }...

  • Page 72: Mac (Vlanstaticmac)

    VLAN MIB Objects 4.7.4 MAC (VlanStaticMAC) The media dependent physical address. els10-27VlanStaticMAC OBJECT-TYPE SYNTAX PhysAddress ACCESS read-write STATUS mandatory ::= { els10-27VlanStaticEntry 2 } The MIB OBJECT IDENTIFIER for accessing the VLANStaticEntry is: OID 1.3.6.1.4.1.97.9.20.6.7.1.2 4.7.5 Port (VlanStaticPort) An integer designating the port number to associate this address to. els10-27VlanStaticPort OBJECT-TYPE SYNTAX INTEGER ACCESS read-write...

  • Page 73: Establish (Vlanstaticestablish)

    4.7.6 Establish (VlanStaticEstablish) A set of the value create(1), causes an entry to be created as specified by the instancing information of els10-27VlanStaticVID, els10-27VlanStaticMAC, and els10-27VlanStaticPort. A set of delete(2) causes the specified entry to be removed from the table. els10-27VlanStaticEstablish OBJECT-TYPE SYNTAX INTEGER { create(1),...

  • Page 75: Chapter 5 Configuring Workgroups Using Lcm

    Workgroup. The packet will then be forwarded or filtered based on that single Workgroup marking. When a packet leaves the switch, the packet will appear just as it did when it was received on the inbound port.

  • Page 76: Workgroup Configuration Examples

    Configuring Workgroups Using LCM 5.2 WORKGROUP CONFIGURATION EXAMPLES Figure 5-1 shows an example of a typical Workgroup configuration. In this example, two Workgroups are used: Workgroup Alpha and the Default Workgroup. Workgroup Alpha contains ports 3,5,7 and 9, and the Default Workgroup contains all ports not contained in Workgroup Alpha.
  • Page 77 Configuring Workgroups Using LCM It is also possible to overlap workgroups. Figure 5-2 shows how overlapping ports can communicate with ports in both Workgroups. For example, Workgroup Alpha 3-7 and Workgroup Omega 7-9. In this example, four workgroups would be created, Alpha, Omega, the default, and a superset workgroup containing all ports in Alpha and Omega.

  • Page 78: Lcm Workgroup Commands

    Configuring Workgroups Using LCM one of these ports, the MAC address and Workgroup pair is found in the database and sent to port 7. In our example, the packet was received on port 3 and paired with Workgroup Alpha (0x065). Conversely when packets are received on other ports (Port 3 in this example) they also will have additional entries placed into the database.
  • Page 79 ELS10-27>workgroup default add 1, 2, 10 -27 Name: default Workgroup ID: 0x001 Ports: 1, 2, 10 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27 To delete ports specify the range: ELS10-27>workgroup omega delete 8, 9 When deleting a workgroup, you must delete the entire NOTE workgroup.

  • Page 81: Chapter 6 Configuring Workgroups Using Snmp

    Workgroup. The packet will then be forwarded or filtered based on that single Workgroup marking. When a packet leaves the switch, the packet will appear just as it did when it was received on the inbound port.

  • Page 82: Workgroup Configuration Procedures

    Configuring Workgroups Using SNMP 6.2 WORKGROUP CONFIGURATION PROCEDURES You should have a familiarity with networking concepts and principles. In addition, a basic understanding of SNMP is helpful. SNMP Configuration information is shown on the following pages. To configure workgroups using SNMP, proceed as follows: Step Action Read els10-27WorkGroupCurrentCount.
  • Page 83 Configuring Workgroups Using SNMP If ports are added to an existing workgroup, the index into the workgroup table would be written to els10-27WorkGroupNumber. This would be obtained by first reading all of the entries in the workgroup table. The name of the workgroup you want to add ports to would be written to els10-27WorkGroupName.

  • Page 85: Chapter 7 Workgroup Mib Objects

    WORKGROUP MIB OBJECTS 7.1 OVERVIEW You can use a Cabletron Systems Network Management System (NMS), or a standard SNMP-based Network Management System, to manage the SmartSTACK Ethernet ELS10-27TX. This section describes Workgroup configuration using the Simple Network Management Protocol (SNMP). You should have a familiarity with networking concepts and principles.

  • Page 86: Current Count (Workgroupcurrentcount)

    Workgroup MIB Objects 7.2.2 Current Count (WorkGroupCurrentCount) The total number of workgroups currently defined. This will return a value between 0 and 8. els10-27WorkGroupCurrentCount OBJECT-TYPE SYNTAX INTEGER STRING (SIZE (1..8)) ACCESS read-only STATUS mandatory ::= { els10-27WorkGroup 2 } The MIB OBJECT IDENTIFIER for reading the VLANVersionNumber OID 1.3.6.1.4.1.97.9.14.2 7.2.3 MAX Count (WorkGroupMaxCount) The maximum number of workgroups allowed.

  • Page 87: Table (Workgrouptable)

    7.2.4 Table (WorkGroupTable) This table contains Workgroup definitions for the interfaces. els10-27WorkGroupTable OBJECT-TYPE SYNTAX Sequence of LxWorkGroupEntry ACCESS non-accessible STATUS mandatory ::= { els10-27WorkGroup 4 } The MIB OBJECT IDENTIFIER for reading the WorkGroupTable is: OID 1.3.6.1.4.1.97.9.14.4 Workgroup MIB Objects...

  • Page 88: Entry (Workgroupentry)

    Workgroup MIB Objects 7.2.5 Entry (WorkGroupEntry) Each entry in this table contains a definition of a Workgroup. els10-27WorkGroupNumber OBJECT-TYPE SYNTAX LxWorkGroupEntry ACCESS non-accessible STATUS mandatory ::= { els10-27WorkGroupTable 1 } INDEX { els10-27WorkGroupNumber } ::= { els10-27WorkGroupTable 1 } LxWorkGroupEntry ::= SEQUENCE { els10-27WorkGroupNumber INTEGER,...

  • Page 89: Number (Workgroupnumber)

    7.2.5.1 Number (WorkGroupNumber) An integer that identifies the work group, used as an index to this table. When creating a new Workgroup, the value returned from the els10- 27WorkGroupNextNumber variable is written here. els10-27WorkGroupNumber OBJECT-TYPE SYNTAX INTEGER STRING (SIZE (1..8)) ACCESS read-write STATUS mandatory ::= { els10-27WorkGroupEntry 1 }...

  • Page 90: Ports (Workgroupports)

    Workgroup MIB Objects 7.2.5.3 Ports (WorkGroupPorts) This is a list of all ports within the Workgroup. From left to right, the first octet specifies ports 1-8, the second octet specifies ports 9-16, the third octet specifies ports 17-32 and the fourth octet specifies ports 24-27. When create or add is used, you must provide a list of ports to be included in the Workgroup.

  • Page 91: Appendix A Virtual Lans (Vlans)

    The tag identifies which VLAN the frame belongs to. The tag may be added to the frame by the end station itself or by a network device, such as a switch. In the example in Figure A-1 below, the workstations attached to the top switch are members of the same two VLANs as the workstations attached to the bottom switch.
  • Page 92 VLAN tag. This tag may already be on the frame entering the switch, or it may be added to the frame by the switch. VLAN information already existing on frames entering the switch is automatically handled by the switch.

  • Page 93: Vlan Access Ports

    Access port. If a tagged frame enters the switch on an Access port, the switch will add the PVID to the frame and forward the frame based on it. Only end-user stations which do not support 802.1Q tags should be attached to ports on the switch configured as Access ports.
  • Page 94 ELS10-27TX VLAN Configuration Figure A-2. VLAN Access Ports...
  • Page 95 Numerics 802.1Q A-2, A-3 802.1Q Trunk Ports 1-4 Access Port A-1 Access Ports 1-3, A-3, A-4 Access Ports (802.1Q Mode) 1-3 a VLAN 3-2 a workgroup 5-4 Assigning Ports to a VLAN 1-6 basic LCM commands 2-4 Configuring VLANs Using LCM Configuring Workgroups Using LCM 5-1 Configuring Workgroups Using...
  • Page 96 Creating a Static MAC Entry Deleting a Static MAC Entry The Static MAC Entry 3-8 Support Getting Help xviii Switch Mode 1-6 syntax, LCM command 2-1 Trap Control Command 2-1, 2-10 IP address parameter 2-10 Trunk Ports 1-4 Non-Preserving Priority 1-4,...
  • Page 97 VLAN Access Ports A-2, A-3 VLAN Command 2-11 VLAN Hybrid ports 1-3 VLANs 802.1Q A-2 Restricting VLANs (802.1Q Mode) 1-7 Using VLANs on the ELS10-27TX 1-1 VLANs and Frame Tagging Workgroup Add a workgroup 5-4 Default Workgroup 5-5 Delete a workgroup 5-5 Display a Workgroup 5-5 Display all workgroups 5-4 LCM Command 2-1...
