CSX200 Configuration with QuickSET
Wide Area HDSL Time Slot Configuration Window
The Wide Area HDSL Time Slot configuration window shown in Figure 26 displays when you
click on the Next>> button in the Wide Area HDSL configuration window.

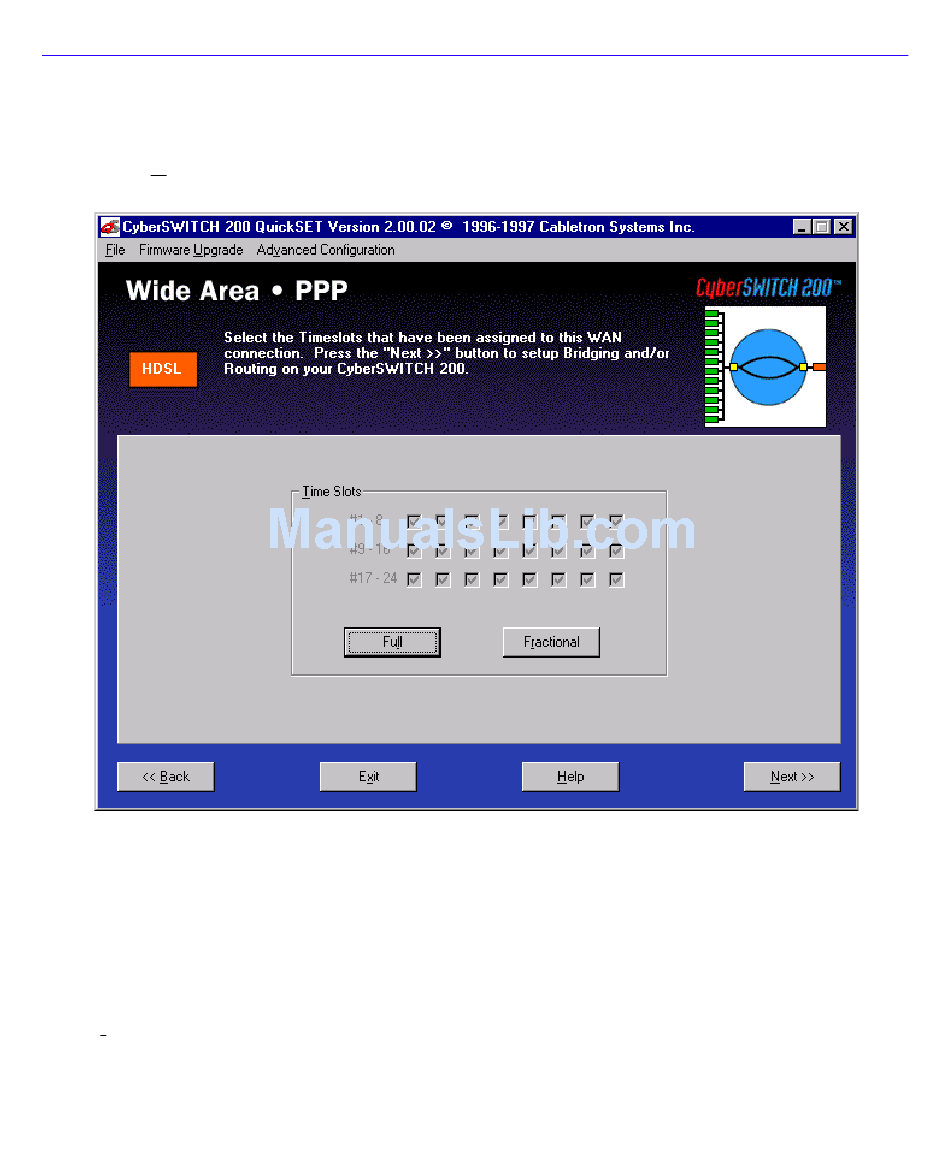

Figure 26 Wide Area HDSL Time Slot Configuration Window
The following section defines the Time Slots in the Wide Area HDSL Time Slot configuration
window.
A full line consists of 24 Time Slots, each capable of up to 64 Kbps throughput. If
Time Slots —
you are leasing two pair from your wiring provider, you may select all the Time Slots by clicking
the Full button. A "check mark" displays in the selected box. If you have leased one pair, click on
the Fractional button to select the first 12 Time Slots.
CSX200 Family User's Guide 63
