CSX200 Configuration with QuickSET
The Local Ethernet IP Address displays the IP address for the
Local Ethernet IP Address —
Ethernet interface. Place the cursor in this field and type the preferred IP address in Dotted
Decimal Notation (DDN) format. The IP address must be in this field to continue.
The Subnet Mask takes the same form as an IP address; four
Local Ethernet Subnet Mask —
groups of three decimal digits, separated by periods. Each group must be in the numerical range of
0 to 255. The first time you use QuickSET, the Subnet Mask field displays a default Subnet Mask,
based on the IP address entered, when it is clicked on. If you wish to use a different Subnet Mask,
enter it at this time in DDN format.
The Secondary IPs window shown in Figure 16 displays after clicking on the
Secondary IPs —
Secondary IPs... button, and shows the list of current Secondary IP addresses. The CSX200 can
support multiple IP Subnets, therefore, there can be multiple Secondary IP Addresses assigned to
an Ethernet interface. To add a Secondary IP address, click on the Add IP button and enter the IP
Address, and Subnet Mask in their corresponding fields.
When you have finished making changes, click on the Apply Changes button. Click on the Done
button when you are finished.

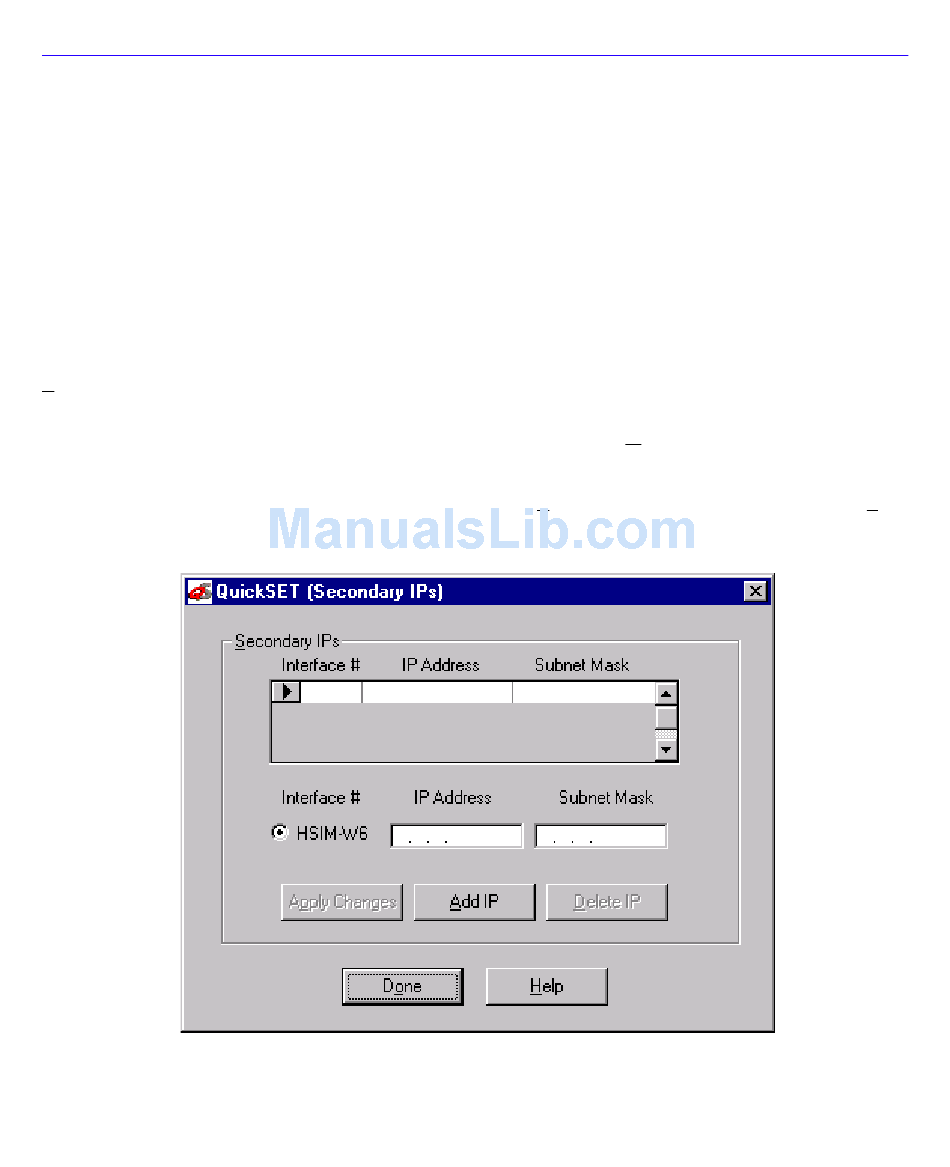

Figure 16 Secondary IPs Window
