CSX200 Configuration with QuickSET
Advanced IP Routing Settings
This section describes the fields for the Advanced IP Routing Settings of the Advanced Routing
configuration window.
Displays the active interface number.
Interface # —
Set this value only if you are going to use numbered mode. In
Local WAN IP Address —
numbered mode, the Local WAN IP address is the IP address of the WAN link leading into the
Telco control office. A Subnet Mask is required for this IP address before you can use this link.
Displays the subnet mask for the Local WAN IP address.
Subnet Mask —
Use this button to change an entry in the Advanced IP Routing Settings box.
Modify —
Advanced IP Routing Options
This section describes the fields for the Advanced IP Routing Options of the Advanced Routing
configuration window.
Selecting this function enables the sending and receiving of Routing Information
Enable RIP —
Protocol packets. Routing Information Protocol is used in IP for broadcasting open path
information between routers to keep routing tables current.
Redirector Window

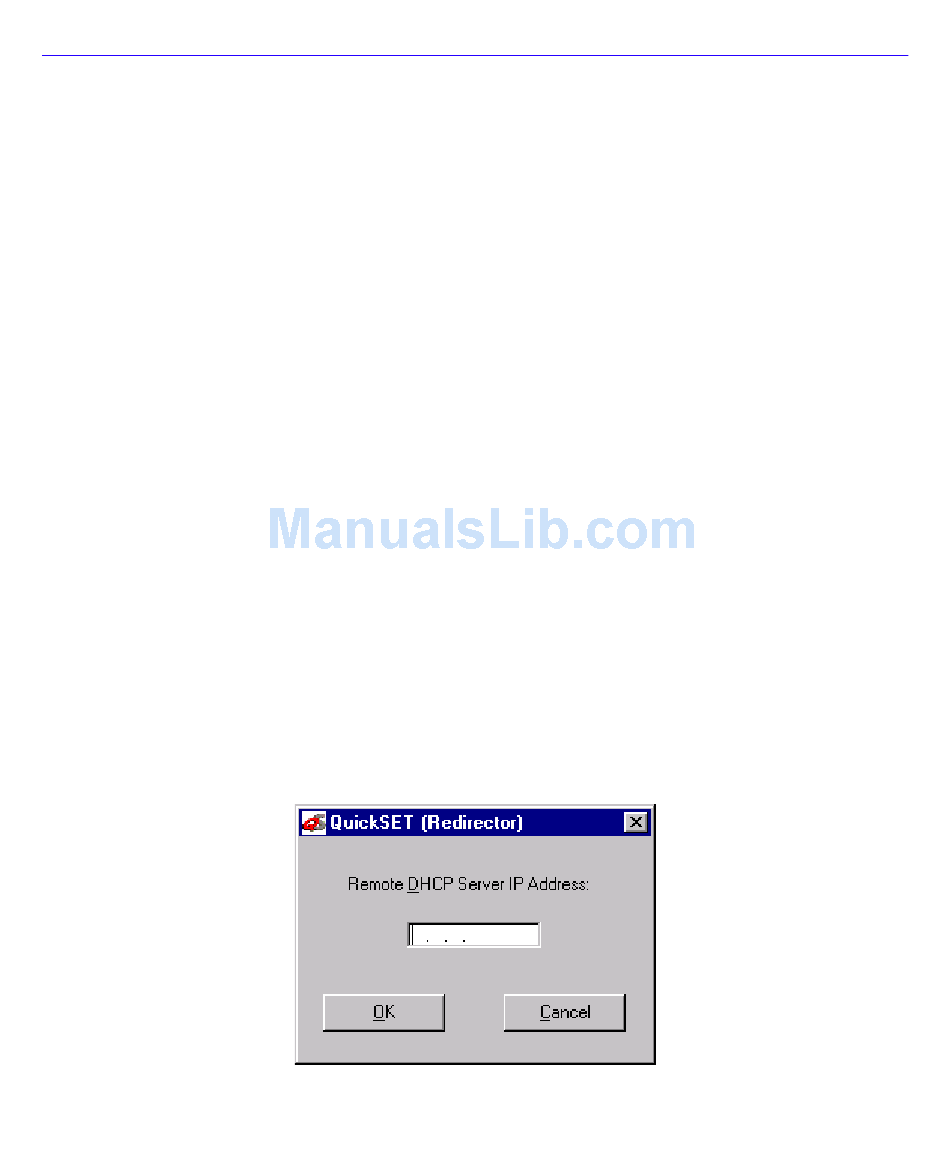

The Redirector window shown in Figure 34 displays after clicking on the Redirector... button in
the Advanced Routing configuration window. The Redirector window is used to set up an IP
address for a remote Dynamic Host Configuration Protocol (DHCP) server.
Figure 34 Redirector Window
CSX200 Family User's Guide 77
