Engine Maintenance - Mec Speed Level 2684 RT Service And Parts Manual

E M
NGINE AINTENANCE
D E
I E S E L
For complete service information consult the engine manual that came with the machine.
Always wear protective eye-wear when working with fuel and oil.
Engine should be OFF when replacing filter elements.
O
IL AND
D
IESEL
Dispose of used oil and filters
properly.
1. Use a suitable container to
catch drained oil. Remove the
drain plug. After oil has
drained, replace the drain
plug.
2. Remove the old filter and
wipe the filter seal contact
surface with a clean towel.
Coat the seal on the new filter
with clean oil, then install and
tighten by hand.
3. Fill engine with 10w-30 motor
oil until the dipstick indicates
FULL. Capacity is 5.4 US
quarts (5,1 l).
4. Recheck dipstick after run-
ning engine. Fill as neces-
sary.
A F
IR ILTER
D
IESEL
1. Remove the wing-bolt
2. Remove old filter and replace
with a new filter.
3. Replace and tighten the wing-
bolt. Do not run the engine
with the air filter element
removed.
November 2009
Page 3-14
M
N G I N E O D E L S
O F ,
IL ILTER
E ,
LEMENT
"3084 Speed Level™ Sigma Lift" Service and Parts Manual

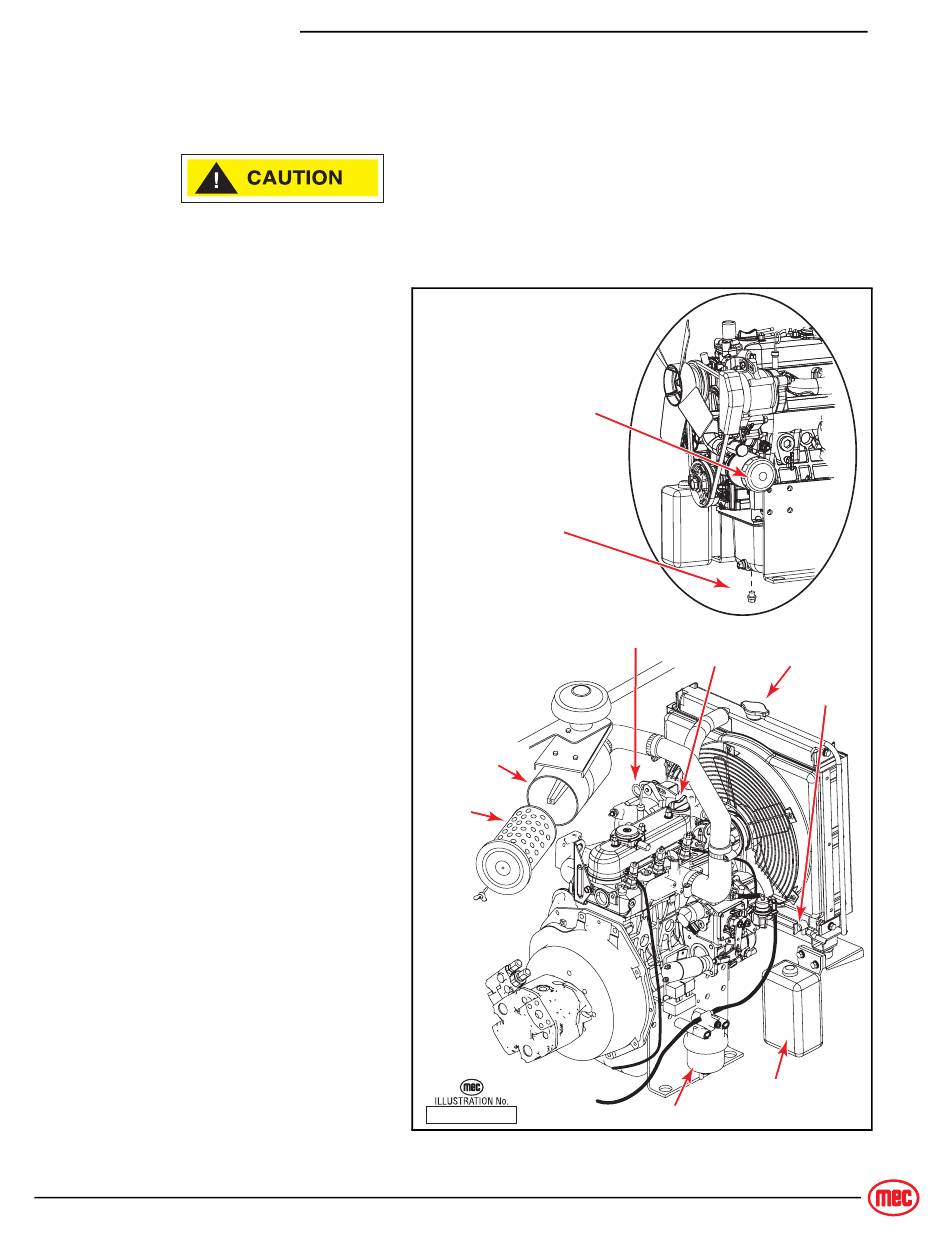

Figure 3-10: Diesel Engine – Oil Filter and Air Filter
Oil Filter
Oil Drain Access
Under Cabinet
Air Filter
Canister
Air Filter
Element
ART_3242
E M
N G I N E A I N T E N A N C E
Oil Dipstick
Oil Fill Radiator
Cap Fill Cap
Coolant
Recovery Tank
Fuel Filter
Radiator
Drain
