CONTROL DESCRIPTION
Joystick DRIVE
LIFT
1
2 Enable Bar Squeeze to enable DRIVE, STEER, and LIFT from joystick.
3 Steering Switch Using thumb, press and hold the rocker switch to steer Left or Right.
4 Lift/Drive Selector Select LIFT or DRIVE function for joystick.
5 Off/On Switch Turn power ON or OFF at the platform. Does not affect lower controls.
6 Tilt Indicator Light Light ON indicates platform out of level. Platform will not elevate when TILT light is ON.
Speed / Torque HIGH TORQUE
Switch
6 MID RANGE
HIGH SPEED
EMERGENCY STOP PUSH to stop all machine functions.
8
Switch TURN CLOCKWISE to reset.
9 Choke/Preheat Operate when starting in cold start conditions.
10 Generator (option) Turn switch ON to engage optional AC generator. Drive and Lift are disabled while the generator is on.
11 Horn (option) Press to sound warning horn.
Automatic Level Move switch DOWN and hold until automatic leveling is complete.
11
Switch Tilt Light will turn OFF when platform is level.
Manual Level Switch Move switch to the left to LOWER the front of the platform.
12
Front to Rear Move the switch to the right to RAISE the front of the platform.
Manual Level Switch Move the switch to the left to move the platform to the LEFT.
13
Side to Side Move the switch to the right to move the platform to the RIGHT.
14 Overload Indicator Platform overloaded when light is ON. Alarms will sound in Upper and Lower Control boxes.
"3084 Speed Level™ Sigma Lift" Service and Parts Manual
- 3084ES E
O N T R O L S
Controls Forward and Reverse travel at variable speeds.
Move toward operator to elevate platform. Lift speed increases proportional to the
joystick movement. Will not function if TILT light is ON.
Move away from operator to lower platform. Speed is fixed.
Slow speed. Provides maximum torque for rough terrain and climbing.
Mid speed. Provides medium torque for smooth to moderate terrain.
Provides high speed when platform height is below 10 feet (3 m).
L E C T R I C

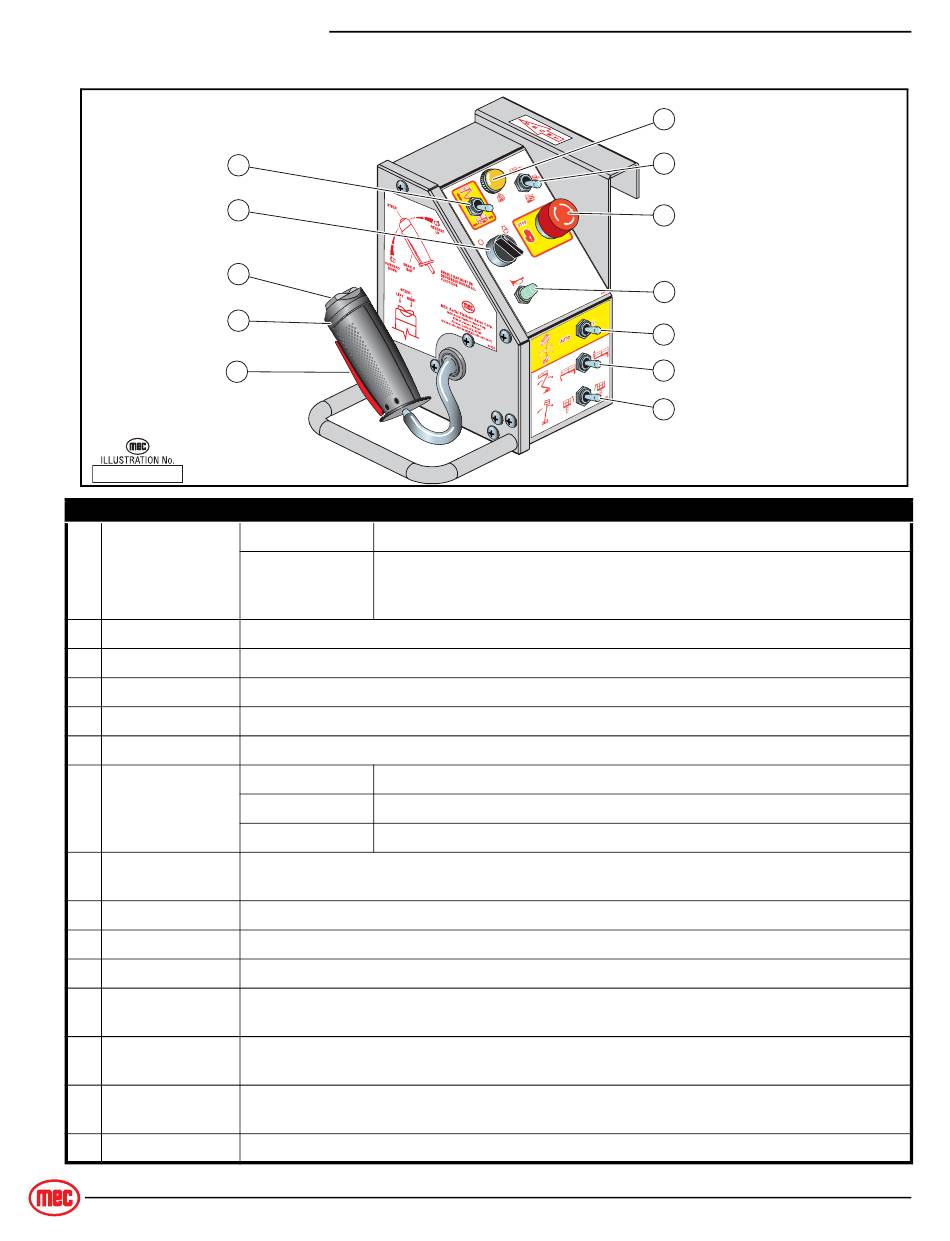

Figure 2-7: Upper Controls-Electric
Overload Indicator
8
Lamp
Speed / Torque
6
7 Emergency Stop
9
Horn (Optional)
10
Automatic Leveling
11 Manual Level: Front to Rear
12 Manual Level: Side to Side
