Mec Speed Level 2684 RT Service And Parts Manual page 190

E - 3084RT
L E C T R I C A L
SCHEMATIC
Model: / Serial #
3084RT | 11800025- UP
Upper Controls
GP400: 21 510 411
Reference Art #: none Publication Art #:
J15
TO: BASE
CAN TILT MODULE MAST
CAN BUS H
CAN BUS L
GND
12V INPUT
CAN BUS H
CAN BUS L
MATRIX MODULE
12V INPUT POWER-UP
P1
P2 FORWARD / DOWN
P4
GENERATOR (option)
ROLL LEFT & AUTO LEVEL
PITCH & ROLL COMMON
P3
LEVEL INDICATOR LAMP
OVERLOAD LAMP (CE)
May 2010
Page 5-6
3 0 8 4 R T D
3084RT
ART_3112
J16
BRN
BLU
ORG
BLK BLK
BARE BARE
RED RED
GP400
21 510 411
515
P1-1
not used P1-2
BLK
CAN BUS H P1-3
BARE
GROUND P1-4
not used P1-5
CLEAR
CAN BUS L P1-6
BLK 32
P2-1
BLK 31
REVERSE / UP P2-2
GRN
STEER LEFT P2-3
YEL
STEER RIGHT P2-4
RED
ENABLE BAR P2-5
BLK
POTENTIOMETER P2-6
not used P2-7
not used P2-8
not used P2-9
WHT
POTENTIOMETER P2-10
BLK
POTENTIOMETER P2-11
BLK 452
SWITCH SUPPLY P2-12
420
SWITCH SUPPLY P3-1
421
SWITCH SUPPLY P3-2
450
START P3-3
423
DRIVE P3-4
422
LIFT P3-5
24
CHOKE / GLOW P3-6
71
P3-7
not used P3-8
UP SWITCH
P3-9
428
ROLL RIGHT P3-10
429
P3-11
438
P3-12
not used P4-1
not used P4-2
not used P4-3
417
P4-4
425
P4-5
ALARM (CE)
P4-6
not used
430
P4-7
not used P4-8
not used P4-9
"Speed Level™ Sigma Lifts" Service and Parts Manual
/ D F M
I E S E L U A L U E L O D E L S

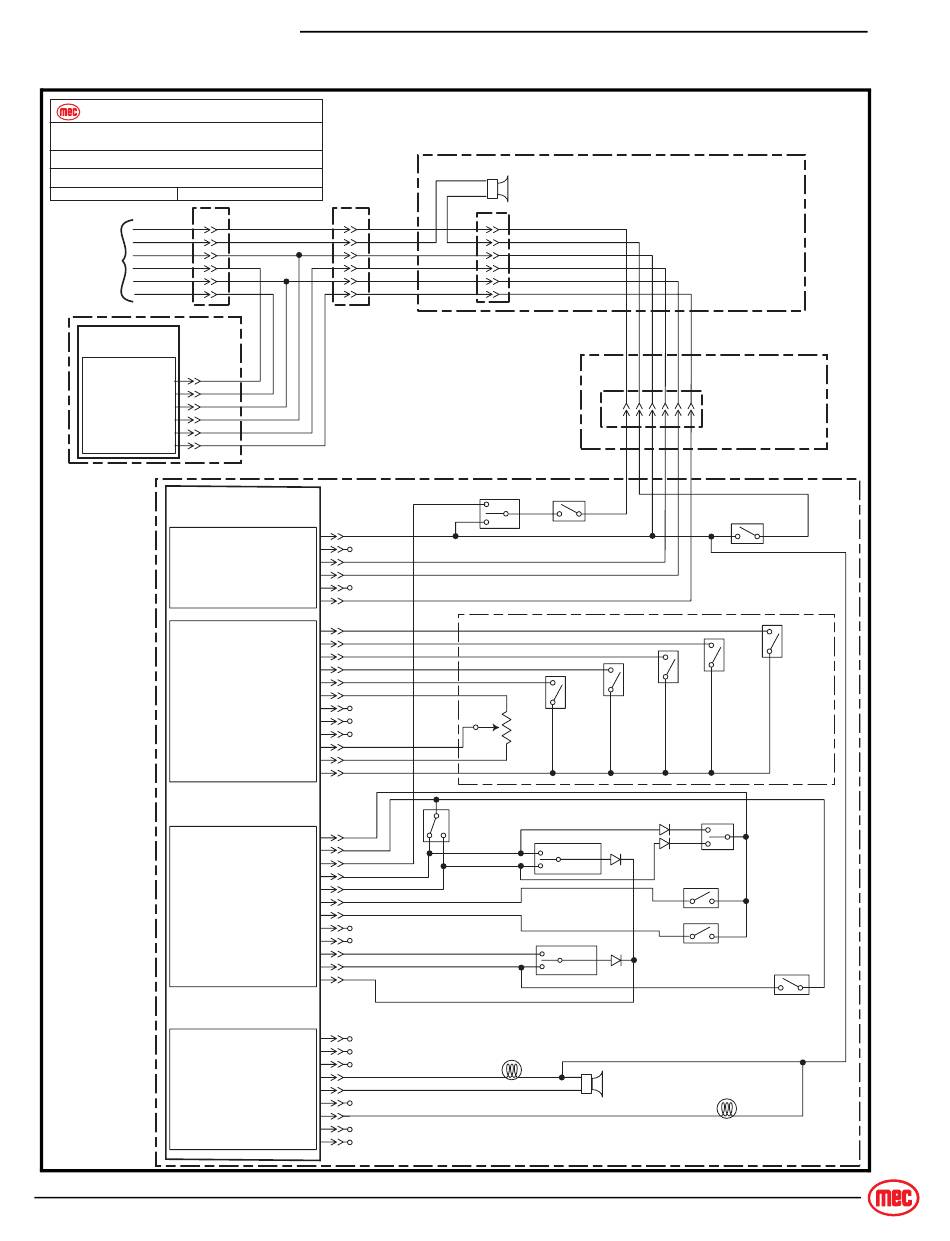

Figure 5-4: Electric Schematic, Upper Controls - 3084RT
B–
BLU
HORN
YEL
(option)
PLATFORM UNDERSIDE
B+
J17
415 BRN
P31-1
73 YEL
P31-2
515 ORG
P31-3
BLK
P31-4
P31-5
BARE
P31-6 RED
J18
OFF/RUN/START
E-STOP
START
415
RUN
ENABLE
POT
LIFT/DRIVE
PITCH UP
PITCH DOWN
ROLL RIGHT
ROLL LEFT
TILT LAMP
OVERLOAD ALARM
(CE only)
- E - 3 0 8 4 R T
L E C T R I C A L
C D E F G H
CONTROL BOX
CONNECTOR
YEL
HORN
(option)
73
FWD/DOWN
REV/UP
LEFT
RIGHT
JOYSTICK
HI SPEED
448
449
HI TORQUE
CHOKE/GLOW
GEN
AUTO LEVEL
OVERLOAD LAMP
(CE only)
UPPER CONTROLS
