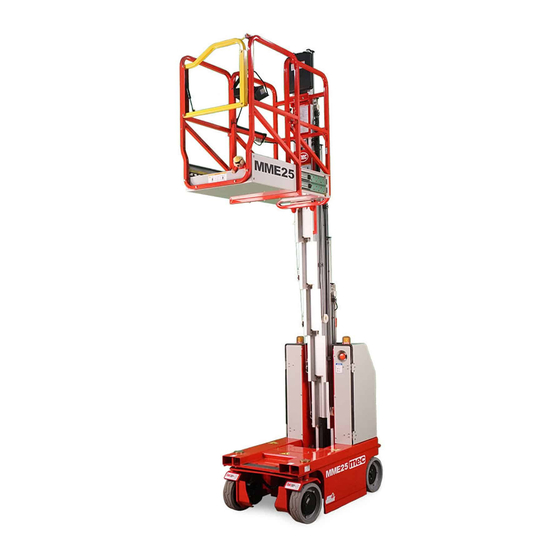

- Page 1 Operator’s Manual MME Series Art_5671 Meets requirements of ANSI A92.20-2020 and CSA B354.6-2019. Part # 94797 May 2024 MME20 Serial Number 17200000 - Up MME25 Serial Number 17300000 - Up...
-
Page 2: Revision History
Revision History Date Reason for Update April 2021 New Release MEC Aerial Work Platforms 1401 S. Madera Avenue, Kerman, CA 93630 USA Toll Free: 1-877-632-5438 Phone: 1-559-842-1500 Fax: 1-559-842-1520 info@MECawp.com www.MECawp.com Page i MME Series - Operator’s Manual - 95567... -
Page 3: Table Of Contents
� 39 Section 12 - Troubleshooting . . 40 Troubleshooting � � � � � � � � � � � � � � � � � � � � 40 Page ii MME Series - Operator’s Manual - 95567... -
Page 4: Section 1 - Introduction
Your MEC Aerial Work Platform has been designed, built, and tested to provide safe, dependable service. Only authorized, trained and qualified personnel shall be allowed to operate or service the machine. -
Page 5: Section 2 - Safety
For your safety and the safety of those around you, you must operate your machine as instructed in this manual. MEC designs aerial work platforms to safely and reliably position personnel, along with their necessary tools and materials, at overhead work locations. The owner/user/operator of the machine should not accept responsibility for the operation of the machine unless properly trained. -
Page 6: Safety Alert Symbols & Fall Protection
Section 2 - Safety May 2024 Safety Alert Symbols & Fall Protection MEC manuals and decals use symbols, colors and signal words to help you recognize important safety, operation and maintenance information. ART_6091 NOTICE RED and the word DANGER – Indicates an imminently hazardous... -
Page 7: Section 3 - Specifications
Working Height adds 6 feet (2 meters) to platform height. Weight may increase with certain options. Maximum sound level at normal operating workstations (A-weighted) Slope rating is subject to ground conditions and adequate traction. Page 4 MME Series - Operator’s Manual - 95567... -
Page 8: Section 4 - Hazards And Safety Rules
Replace any missing or damaged safety signs. Keep operator safety in mind at all times. Use mild soap and water to clean safety signs. Do not use solvent-based cleaners because they may damage the material of the safety sign. Page 5 MME Series - Operator’s Manual - 95567... -
Page 9: Hazards
Such persons shall be capable of working safely on energized circuits and shall be familiar with the proper use of special precautionary techniques, personal protective equipment, insulating and shielding materials and insulated tools. Page 6 MME Series - Operator’s Manual - 95567... - Page 10 (b) Transmission lines greater than 133 kV LEGEND = No shading, in the front views, indicates no proximity requirements = Light shading indicates spotter is required = Heavy shading indicates the NO GO ZONE ART_3265 Page 7 MME Series - Operator’s Manual - 95567...
- Page 11 Do not place loads outside the platform perimeter. Do not place ladders or scaffolds in the platform or against any part of this machine. Do not transport tools and materials unless they are evenly distributed and can be safely handled by the person in the platform. Page 8 MME Series - Operator’s Manual - 95567...
- Page 12 Do not climb down from the platform when raised. Keep the platform floor clear of debris. Close the entry gate before operating. Do not enter or exit the platform unless the machine is in the stowed position. Art_5670 Page 9 MME Series - Operator’s Manual - 95567...
- Page 13 Be sure all maintenance has been performed as specified in this manual. Be sure all decals are in place and legible. Be sure the manuals are complete, legible and in the storage container located in the platform. Page 10 MME Series - Operator’s Manual - 95567...
- Page 14 2. Lower the platform. 3. Turn the key switch to the Off position and remove the key to secure from unauthorized use. 4. Charge the batteries. FULL SIZE DECAL ART Page 11 MME Series - Operator’s Manual - 95567 OUTSIDE PDF PAGE BORD...
-
Page 15: Section 5 - Components And Controls
12) Manual Storage Container 13) Masts Assembly 14) Main Power Switch 15) Rear Wheel 16) Main Platform 17) Front Wheel 18) Batteries 19) Motor Controller 20) Hydraulic Unit 21) Forklift Pockets ILLUSTRATION No. ART_5671 Page 12 MME Series - Operator’s Manual - 95567... -
Page 16: Platform Controls
Push in the Emergency Stop switch at any time to stop all machine functions. 9 Emergency Stop Switch Pull the button out to the On position (pulled out) to operate the machine. Page 13 MME Series - Operator’s Manual - 95567... -
Page 17: Lower Controls
Turn the key switch to the base position and the ground controls will be Base selected. 7 Overload Indicator Light Light on indicates when platform is overloaded. 8 Circuit Breaker When the current was overloaded, the circuit breaker will protect the circuit. Page 14 MME Series - Operator’s Manual - 95567... -
Page 18: Section 6 - Pre-Operation & Workplace Inspection
Inspection again before going on to the function tests. Scheduled maintenance inspections shall be performed by qualified service technicians, according to the manufacturer’s specifications and the requirements listed in this manual. Page 15 MME Series - Operator’s Manual - 95567... -
Page 19: Pre-Start Inspection Checklist
Alternatively, use a 2”×4” or recommended a 4”×4” a piece of CAUTION WARNING CAUTION wood to support the mast section that is attached to the platform. See page 31 for instructions. Page 16 MME Series - Operator’s Manual - 95567... -
Page 20: Workplace Inspection
Overhead obstructions and high voltage conductors • Hazardous locations • Inadequate surface support to withstand all load forces imposed by the machine • The presence of unauthorized personnel • Other possible unsafe conditions Page 17 MME Series - Operator’s Manual - 95567... -
Page 21: Section 7 - Function Tests
3. Turn the main power switch to On position (pulled out). At the Ground Controls 1. Pull the red Emergency Stop button out to the On position (pulled out) at both the ground and platform controls. Page 18 MME Series - Operator’s Manual - 95567... - Page 22 1. Turn the Key Switch to platform control. ART_4987 Test Emergency Stop 1. Push in the platform red Emergency Stop button to the Off position (pushed in). • Result: No functions should operate. Page 19 MME Series - Operator’s Manual - 95567...
- Page 23 2. Press and hold the Function Enable Switch on the control handle. 3. Slowly move the control handle forward/downward until the machine begins to move, then return the handle to the center position. Page 20 MME Series - Operator’s Manual - 95567...
- Page 24 1. Raise the platform. • Result: When the platform is raised approximately 5 feet (1.5 meters) from the ground, the Page 21 MME Series - Operator’s Manual - 95567...
- Page 25 The platform continues to lift with excessive weight in the platform. • Test Failed – recalibrate the overload system (refer to Overload Calibration in this section). • The Platform Overload Sensing System operates as described – Passed Test - Complete. Page 22 MME Series - Operator’s Manual - 95567...
-
Page 26: Section 8 - Operating Instructions
Turn the switch to indoors to allow unrestricted platform height when working Art_5587 indoors. Platform Overload Indicates too much weight on the platform. Remove weight from the platform to restore function and continue. ART_5662 Page 23 MME Series - Operator’s Manual - 95567... - Page 27 2. Press and hold the Function Enable Switch on the control joystick. 3. Turn the steer wheels with the thumb rocker switch located on the top of the control joystick. Function Enable ART_5021 Page 24 MME Series - Operator’s Manual - 95567...
- Page 28 Lay the piece of wood on the slope. At the downhill end, lay the level on the top edge of the piece of wood and lift the end until the piece of wood is level. Page 25 MME Series - Operator’s Manual - 95567...
- Page 29 3. Turn the handle and push the platform lock pin to the socket on the extension deck. 4. Reverse the above steps to retract platform. Note: Do not stand on the platform extension while trying to extend and retract it. Page 26 MME Series - Operator’s Manual - 95567...
-
Page 30: Battery And Charger Instructions
3. Install the battery vent caps. 4. Charge the battery. 5. Check the battery acid level when the charging cycle is complete. Replenish with distilled water to the bottom of the fill tube. Do not overfill. Page 27 MME Series - Operator’s Manual - 95567... -
Page 31: Brake Release Instructions
4. If you want to apply the brakes, just turn off the key switch in “ground” position. 5. Push the red Emergency stop button on both the ground and platform controls to the Off position (pushed in). When the machine is towed, do not exceed 2.5mph (4.0km/h). Page 28 MME Series - Operator’s Manual - 95567... -
Page 32: Section 9 - Transport And Lifting Instructions
5. Control the machine by walking alongside using the platform control unit. 6. Select slow drive speed and use extreme caution by driving slowly and smoothly on the ramp. 7. Control the machine from a safe distance during this operation. Page 29 MME Series - Operator’s Manual - 95567... -
Page 33: Crane Lifting Instructions
Make sure the mast is fully lowered. Inspect the entire machine and remove any loose or unsecured items. Adjust the rigging to prevent damage to the machine. Lift the machine slowly to prevent rocking. ILLUSTRATION No. ART_5741 Page 30 MME Series - Operator’s Manual - 95567... -
Page 34: Section 10 - Maintenance
Alternatively, use a 2”×4” or recommended a 4”×4” piece of wood to support the mast section that is attached to the platform. ILLUSTRATION No. ART_6098 Page 31 MME Series - Operator’s Manual - 95567... -
Page 35: Hydraulic Reservoir
Hydraulic Level should be between the 4L and 5L marks or 1” below the MIN Line with the platform raised and supported as shown. ILLUSTRATION No. ART_5789 6.5L HYDRAULIC TANK LEVEL HYDRAULIC TANK LEVEL LEFT SIDE FRONT SIDE Page 32 MME Series - Operator’s Manual - 95567... -
Page 36: Frequent Inspection Checklist
If the machine is used in very dusty, exceptionally hot or exceptionally cold conditions, replace the Hydraulic Cap Breather Filter and Hydraulic Filter (under normal conditions replace every 6 months or 300 hours, whichever comes first). Date Inspected By Page 33 MME Series - Operator’s Manual - 95567... -
Page 37: Maintenance Inspection Report
Limit switches slows drive when elevated BASE: Indoor/outdoor limit swItch set test Fasteners tight Pothole switch test Cover panels secure Steering pressure relief, set correctly Welds Lift pressure relief, set correctly Page 34 MME Series - Operator’s Manual - 95567... -
Page 38: Section 11 - Decals
Section 11 - Decals May 2024 Decals, MME20 Decals, MME20 COVERS OPEN PLATFORM REMOVED Page 35 MME Series - Operator’s Manual - 95567... - Page 39 Qty. - 4 9910 Qty. - 2 91850 Qty. - 1 95601 Qty. - 2 94423 Qty. - 2 42534 Qty. - 1 41640 Qty. - 1 96306 Qty. - 1 Page 36 MME Series - Operator’s Manual - 95567...
-
Page 40: Decals, Mme25
Section 11 - Decals May 2024 Decals, MME25 COVERS OPEN PLATFORM REMOVED Page 37 MME Series - Operator’s Manual - 95567... - Page 41 Qty. - 4 9910 Qty. - 2 91850 Qty. - 1 95601 Qty. - 2 94423 Qty. - 2 42534 Qty. - 1 41640 Qty. - 1 96306 Qty. - 1 Page 38 MME Series - Operator’s Manual - 95567...
-
Page 42: Serial Plate
MAX. LOAD PER WHEEL: The maximum safe weight applied to each wheel. Calculated with all available options installed. Fw = 30% (Wm + Wc + Wopt) CHASSIS INCLINATION: The maximum amount of tilt for safe working conditions. Page 39 MME Series - Operator’s Manual - 95567... -
Page 43: Section 12 - Troubleshooting
Wires disconnected, broken, or loose? • Diagnostic panel on? • Platform Control Box Fault Code present? • Contact MEC Technical Support or refer to service manual. Manuals are available free online at www.MECawp.com. Page 40 MME Series - Operator’s Manual - 95567... - Page 44 May 2024 Page 41 MME Series - Operator’s Manual - 95567...
- Page 45 May 2024 Page 42 MME Series - Operator’s Manual - 95567...
- Page 46 MEC Parts Order Form Phone: 559-842-1523 Fax: 559-400-6723 Email: Parts@mecawp.com Please Fill Out Completely: Date: Ordered By: Account: Your Fax No.: Bill to: Ship to: Purchase Order Number Ship VIA ** All orders MUST have a Purchase Order Number **Fed Ex shipments require Fed Ex account number...
-
Page 47: Limited Owner Warranty
MEC Aerial Platform Sales Corp. and is found upon inspection by MEC Aerial Platform Sales Corp. to be defective in material and/or workmanship. MEC Aerial Platform Sales Corp. shall not be liable for any consequential, incidental or contingent damages whatsoever. - Page 48 MEC Aerial Work Platforms 1401 S. Madera Avenue, Kerman, CA 93630 USA Toll Free: 1-877-632-5438 Phone: 1-559-842-1500 Fax: 1-559-842-1520 info@MECawp.com www.MECawp.com...
