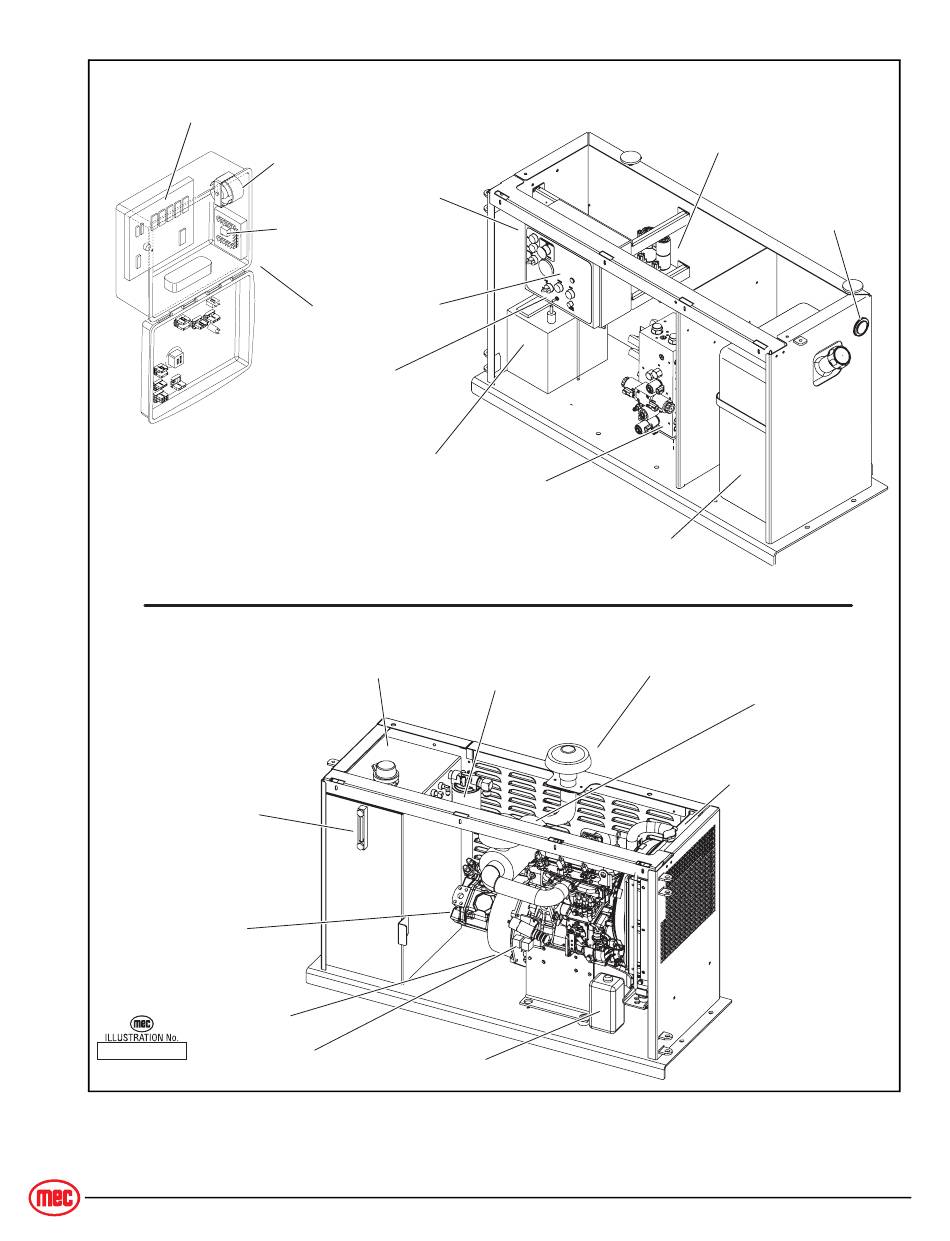

Figure 1-3: Component Locations, Modules
Control Module
Leveling
GP400 Module
Hydraulic
Manifold
Alarm
Battery
Disconnect Switch
Power to Platform
AC Connector
Terminal Block
Module
Lower Controls
Emergency
Lowering Switch
12 Volt DC Battery
Main
Hydraulic
Manifold
Fuel
Reservoir
Power Module
Hydraulic
Hydraulic Fluid
Reservoir
Engine Air Intake
Filter
Engine Air Filter
Radiator
Hydraulic Fluid
Sight Gauge
Hydraulic Fluid
Pump
Engine
ART_3089 Relays Overflow
Reservoir
