Hoses And Cables; Platform Removal - Mec Speed Level 2684 RT Service And Parts Manual

H
O S E S A N D
NOTE: Refer to Parts Section E for detailed hydraulic hose diagrams.
Inspect all hoses and electrical cables for security and damage. Hoses and cables
should be examined for rubbing and chafing.
Check all ties and clamps that keep hoses secure.
Check for leaks at fittings. Replace any damaged hose or cable.
1. Tag hoses for proper reassembly.
2. Disconnect hydraulic hoses. Immediately cap and plug all openings to prevent con-
tamination.
3. Torque hose fittings according to the Hydraulic Torque Specification Table.
P
L A T F O R M
1. Connect overhead crane or
appropriate lifting device to the
platform.
2. Disconnect cables that go to
the platform.
3. Remove the bolts that secure
the platform to the boom
assembly.
4. Lift the platform away from the
boom assembly.
5. Installation is reverse of
removal.
November 2009
Page 3-10
C
A B L E S
R
E M O V A L
"3084 Speed Level™ Sigma Lift" Service and Parts Manual
M C
E C H A N I C A L O M P O N E N T S

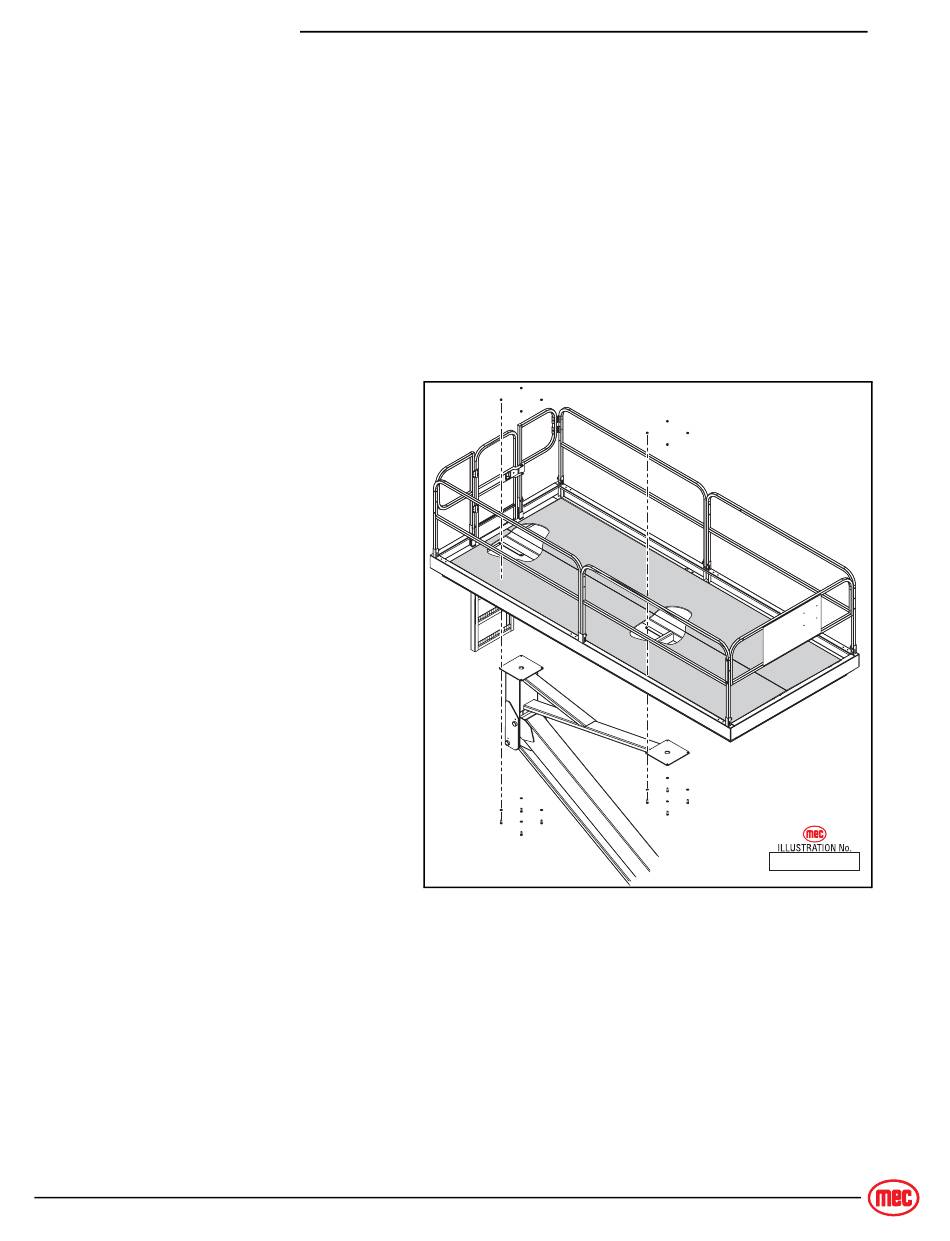

Figure 3-6: Platform Removal
ART_3178
