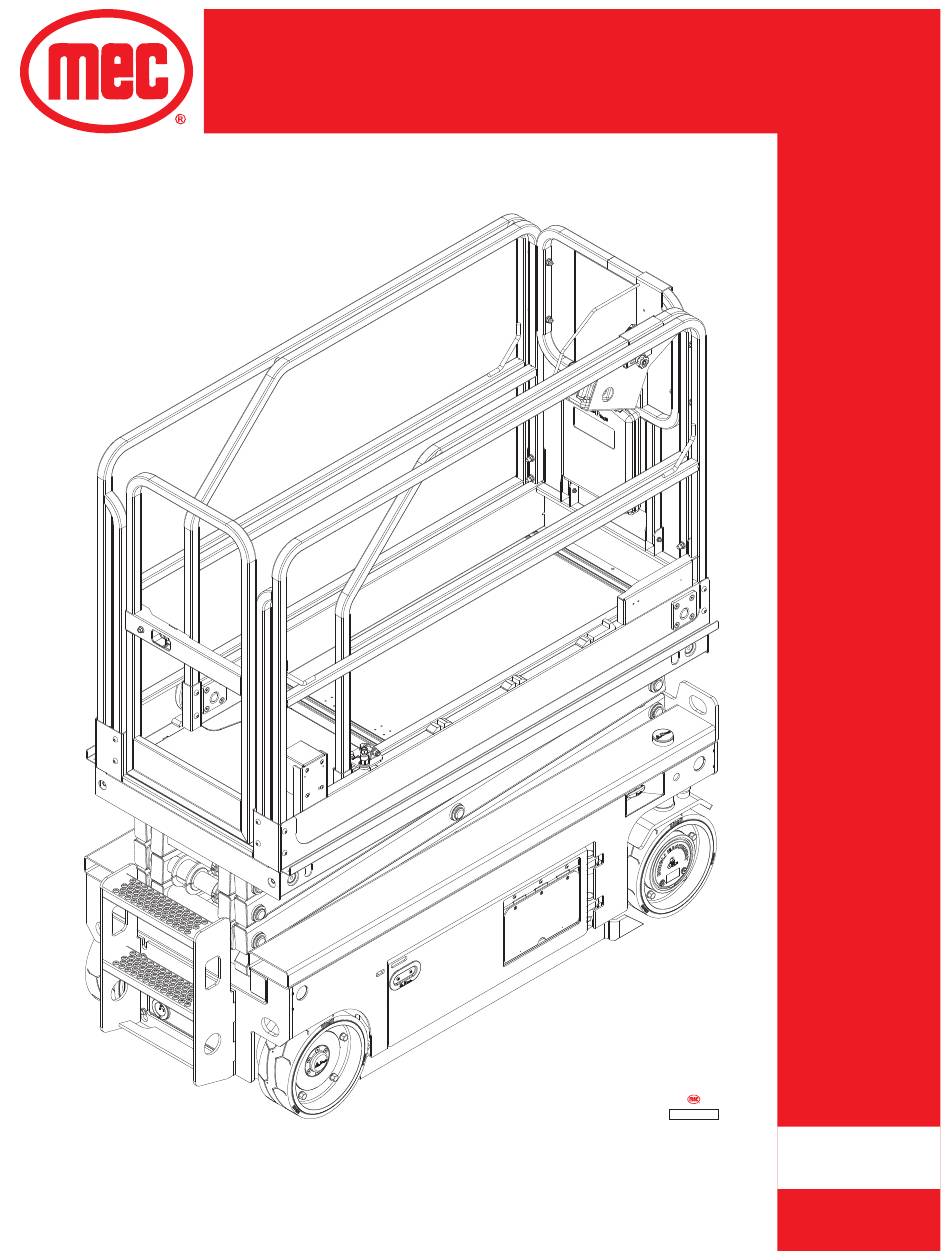

- Page 1 Operator’s Manual Micro2032 ILLUSTRATION No. ART_6209 Meets requirements of ANSI A92.20-2020 and CSA B354.6-2019. Part # 96708 April 2024 Serial Number Range 19900025 - Up...
- Page 2 April 2024 Revision History Date Reason for Update April 2024 New Release MEC Aerial Work Platforms 1401 S. Madera Avenue, Kerman, CA 93630 USA Toll Free: 1-877-632-5438 Phone: 1-559-842-1500 Fax: 1-559-842-1520 info@MECawp.com www.MECawp.com Page i Micro2032 - Operator’s Manual - 96708...
-
Page 3: Table Of Contents
� 39 Section 12 - Transport and Lifting Instructions . 40 Transport and Lifting Instructions � � � � � � � � � � � � � � � � 40 Page ii Micro2032 - Operator’s Manual - 96708... -
Page 4: Section 1 - Introduction
Your MEC Aerial Work Platform has been designed, built, and tested to provide safe, dependable service. Only authorized, trained and qualified personnel shall be allowed to operate or service the machine. -
Page 5: Section 2 - Safety
For your safety and the safety of those around you, you must operate your machine as instructed in this manual. MEC designs aerial work platforms to safely and reliably position personnel, along with their necessary tools and materials, at overhead work locations. The owner/user/operator of the machine should not accept responsibility for the operation of the machine unless properly trained. -
Page 6: Safety Alert Symbols & Fall Protection
Section 2 - Safety April 2024 Safety Alert Symbols & Fall Protection MEC manuals and decals use symbols, colors and signal words to help you recognize important safety, operation and maintenance information. RED and the word DANGER – Indicates an imminently hazardous... -
Page 7: Section 3 - Specifications
*Working Height adds 6 feet (2 meters) to platform height. **Weight may increase with certain options. †Sheet material weight is part of the total platform capacity. This may limit capacity to one occupant. Page 4 Micro2032 - Operator’s Manual - 96708... -
Page 8: Section 4 - Hazards
Keep away from the machine if it contacts energized power lines. Personnel on the ground or in the platform must not touch or operate the machine until energized power lines are shut off. Do not use the machine as a ground for welding. Page 5 Micro2032 - Operator’s Manual - 96708... -
Page 9: Energized Conductor Contact Hazard
(b) Transmission lines greater than 133 kV LEGEND = No shading, in the front views, indicates no proximity requirements = Light shading indicates spotter is required = Heavy shading indicates the NO GO ZONE ART_3265 Page 6 Micro2032 - Operator’s Manual - 96708... - Page 10 Such persons shall be capable of working safely on energized circuits and shall be familiar with the proper use of special precautionary techniques, personal protective equipment, insulating and shielding materials and insulated tools. Page 7 Micro2032 - Operator’s Manual - 96708...
-
Page 11: Tip-Over Hazards
DO NOT increase the surface area of the platform (i.e. cover the rails with tarp or plywood). Increased surface area exposed to the wind will decrease machine stability. DO NOT attach overhanging loads or use the machine as a crane. DO NOT place loads outside the platform perimeter. Page 8 Micro2032 - Operator’s Manual - 96708... - Page 12 NEVER replace any part of the machine with items of different weight or specification. NEVER modify or alter the work platform without written permission from MEC. NEVER place ladders or scaffolds in the platform or against any part of the machine.
-
Page 13: Fall & Collision Hazards
Stunt driving and horseplay are PROHIBITED. Watch for personnel and obstructions below the platform when lowering the Art_2827 platform. Page 10 Micro2032 - Operator’s Manual - 96708... - Page 14 Keep hands and limbs out of scissors. Use common sense and planning when operating the machine with the controller from the ground. Maintain safe distances between the operator, the machine and fixed objects. Page 11 Micro2032 - Operator’s Manual - 96708...
-
Page 15: Additional Safety Hazards
Keep sparks, flame and lighted tobacco away from batteries. Batteries emit explosive gas. The battery tray should remain open during the entire charging cycle. Battery Safety - Electrocution Hazard • Avoid contact with electrical terminals. Page 12 Micro2032 - Operator’s Manual - 96708... -
Page 16: Section 5 - Controls & Components
24) Pothole Guard 25) Hydraulic Pump Motor 26) Hydraulic Tank 27) Function Manifold 28) Hydraulic Filter 29) Batteries (2×) *Under the cover. Control Module Battery Module *Under the cover. ILLUSTRATION No. ART_6210 Page 13 Micro2032 - Operator’s Manual - 96708... -
Page 17: Platform Controls
Indicates the state of battery charge and displays diagnostic codes when necessary. Push in the Emergency Stop switch at any time to stop all machine functions. 9 Emergency Stop Switch Pull the button out to the On position to operate the machine. Page 14 Micro2032 - Operator’s Manual - 96708... -
Page 18: Lower Controls
To select the Indoor/Outdoor Mode, press and hold the Menu Enter Button (#5) for a few seconds to switch to Indoor or Outdoor. • Indoor • Select to allow unrestricted height when not exposed to wind. • Outdoor • Select to limit the maximum height when exposed to wind. Page 15 Micro2032 - Operator’s Manual - 96708... -
Page 19: Section 6 - Workplace Inspection
Hazardous locations and atmospheres • Inadequate surface and support to withstand all load forces imposed by the machine • Wind and weather conditions • The presence of unauthorized personnel • Other possible unsafe conditions Page 16 Micro2032 - Operator’s Manual - 96708... -
Page 20: Section 7 - Operating Instructions & Functions Test
3. Turn the main power switch to the On position (pulled out). At the Lower Controls 1. Pull out the red Emergency Stop button clockwise to the On position (pulled out) at both the ground and platform controls. Page 17 Micro2032 - Operator’s Manual - 96708... - Page 21 1. Turn the Key Switch to platform control. Test the Emergency Stop 1. Push in the platform red Emergency Stop button to the Off position (pushed in). • Result: No functions should operate. Page 18 Micro2032 - Operator’s Manual - 96708...
- Page 22 4. Depress the thumb rocker switch in the direction identified by the yellow right arrow on the control panel. • Result: The steer wheels should turn in the direction that the yellow right arrow points on the control panel. Page 19 Micro2032 - Operator’s Manual - 96708...
- Page 23 4. Press the drive function select button. 5. Press and hold the function enable switch on the control handle. 6. Move the control handle in the direction indicated by the blue up arrow, then move the control Page 20 Micro2032 - Operator’s Manual - 96708...
- Page 24 9. Press and hold the platform up button. 10. Raise the platform to the highest position and measure the platform height. • Result: The platform continued to rise to a height of about 19.7 feet (6.0 meters). Page 21 Micro2032 - Operator’s Manual - 96708...
- Page 25 Result: The platform continued to rise to a height of about 19.7 feet (6.0 meters). 21. Switch to the Outdoor mode. • Result: The alarm should sound. 22. Switch to the Indoor mode and fully lower the platform. Page 22 Micro2032 - Operator’s Manual - 96708...
-
Page 26: Operating Instructions
Outdoor • Select to limit the maximum height when exposed to wind. Platform Overload ART_5863 Indicates too much weight on the platform. Remove weight from the platform to restore function and continue. Page 23 Micro2032 - Operator’s Manual - 96708... - Page 27 2. Press and hold the Function Enable Switch on the control handle. 3. Turn the steer wheels with the thumb rocker switch located on the top of the control handle. Function Enable ART_5021 Page 24 Micro2032 - Operator’s Manual - 96708...
- Page 28 Tape measure Lay the piece of wood on the slope. At the downhill end, lay the level on the top edge of the piece of wood and lift the end until the piece Page 25 Micro2032 - Operator’s Manual - 96708...
- Page 29 3. Lower the platform until the Maintenance Lock rests securely on the link. Keep clear of the Maintenance Lock when lowering the platform. ART_4995 Don’t engage the Maintenance Lock unless the platform in empty of tools ART_6091 NOTICE CAUTION WARNING CAUTION DANGER and material. Page 26 Micro2032 - Operator’s Manual - 96708...
- Page 30 It need to be calibrated again, the platform overload system cannot be used again until the platform overload system get back to normal. Page 27 Micro2032 - Operator’s Manual - 96708...
-
Page 31: Sheet Materials Rack
When all material is loaded, replace the J-shaped arm as shown and secure in place with the snap pin. Single Sheet Material Rack Capacity 110lbs (50kg) Both Sheet Material Rack Capacity 220lbs (100kg) Page 28 Micro2032 - Operator’s Manual - 96708... -
Page 32: Section 8 - Battery Charging
Charge the battery in a well-ventilated area. Use proper AC input voltage for charging as indicated on the machine. ART_6091 NOTICE CAUTION CAUTION Use only MEC authorized batteries and chargers. The charger will indicate the status of the charge cycle. Battery Charger ART_5026 Page 29... -
Page 33: Section 9 - Maintenance
Never leave hydraulic components or hoses open. Plug all hoses and fitting immediately after disassembly to protect the system from outside ART_6091 NOTICE CAUTION contamination (including rain). CAUTION Never open a hydraulic system when there are contaminants in the air. Page 30 Micro2032 - Operator’s Manual - 96708... - Page 34 See the Service & Parts Manual for specific instructions. Machines that have been out of service for more than three months must have the Frequent Inspection Checklists completed before returning to service. Page 31 Micro2032 - Operator’s Manual - 96708...
-
Page 35: Lubrication
(Located inside Filler Cap) whichever occurs first and Hydraulic Filter Hydraulic Filter Canister Severe Conditions--very dusty, exceptionally hot or exceptionally cold conditions • Change every three months or 150 hours, whichever occurs first Page 32 Micro2032 - Operator’s Manual - 96708... -
Page 36: Pre-Start Inspection Checklist
NEVER perform work or inspection on the machine with the platform ART_6091 NOTICE CAUTION elevated without first blocking the scissor assembly with the WARNING CAUTION Maintenance Lock. See page 32 for instructions. Page 33 Micro2032 - Operator’s Manual - 96708... -
Page 37: Frequent Inspection Checklist
If the machine is used in very dusty, exceptionally hot or exceptionally cold conditions, replace the Hydraulic Cap Breather Filter and Hydraulic Filter (under normal conditions replace every 6 months or 300 hours, whichever comes first). Date Inspected By Page 34 Micro2032 - Operator’s Manual - 96708... -
Page 38: Maintenance Inspection Report
Pothole switch test BASE: Steering pressure relief, set correctly Fasteners tight Lift pressure relief, set correctly Cover panels secure **Check Platform Overload Sensing operation Welds **For machine equipped with Platform Overload Protection system only Page 35 Micro2032 - Operator’s Manual - 96708... -
Page 39: Section 10 - Decals
Section 10 - Decals April 2024 Decals Decals BATTERY MODULE PLATFORM EXTENDED *On both sides Page 36 Micro2032 - Operator’s Manual - 96708... - Page 40 94120 Qty. - 1 44797 Qty. - 1 41640 Qty. - 1 91850 Qty. - 2 90732 Qty. - 1 43879 Qty. - 1 41646 Qty. - 1 96695 Qty. - 2 Page 37 Micro2032 - Operator’s Manual - 96708...
-
Page 41: Serial Plate
MAX. LOAD PER WHEEL: The maximum safe weight applied to each wheel. Calculated with all available options installed. Fw = 30% (Wm + Wc + Wopt) CHASSIS INCLINATION: The maximum amount of tilt for safe working conditions. Page 38 Micro2032 - Operator’s Manual - 96708... -
Page 42: Section 11 - Troubleshooting
Wires disconnected, broken, or loose? • Diagnostic panel on? • Platform Control Box Fault Code present? • Contact MEC Technical Support or refer to service manual. Manuals are available free online at www.MECawp.com. Page 39 Micro2032 - Operator’s Manual - 96708... -
Page 43: Section 12 - Transport And Lifting Instructions
This section is provided for reference and does not supersede any government or company policy regarding the loading, transport or lifting of MEC machinery. Truck drivers are responsible for loading and securing machines, and should be properly trained and authorized to operate MEC machinery. ART_6091 NOTICE CAUTION... - Page 44 • Raise the machine 6 inches (15 centimeters) and then tilt the forks back slightly to keep the machine secure. • Be sure the machine is level when lowering the forks. ART_5030 Page 41 Micro2032 - Operator’s Manual - 96708...
- Page 45 Adjust the rigging to prevent damage to the machine Lifting Lifting and to keep the machine level. Points (2) Points (2) X Axis Y Axis Y Axis 26 inches 19.3 inches (66 centimeters) (49.1 centimeters) X Axis ART_5032 Page 42 Micro2032 - Operator’s Manual - 96708...
- Page 46 MEC Parts Order Form Phone: 559-842-1523 Fax: 559-400-6723 Email: Parts@mecawp.com Please Fill Out Completely: Date: Ordered By: Account: Your Fax No.: Bill to: Ship to: Purchase Order Number Ship VIA ** All orders MUST have a Purchase Order Number **Fed Ex shipments require Fed Ex account number...
- Page 47 MEC Aerial Platform Sales Corp. and is found upon inspection by MEC Aerial Platform Sales Corp. to be defective in material and/or workmanship. MEC Aerial Platform Sales Corp. shall not be liable for any consequential, incidental or contingent damages whatsoever.
- Page 48 MEC Aerial Work Platforms 1401 S. Madera Avenue, Kerman, CA 93630 USA Toll Free: 1-877-632-5438 Phone: 1-559-842-1500 Fax: 1-559-842-1520 info@MECawp.com www.MECawp.com...
