Mec 1330SE Service & Parts Manual

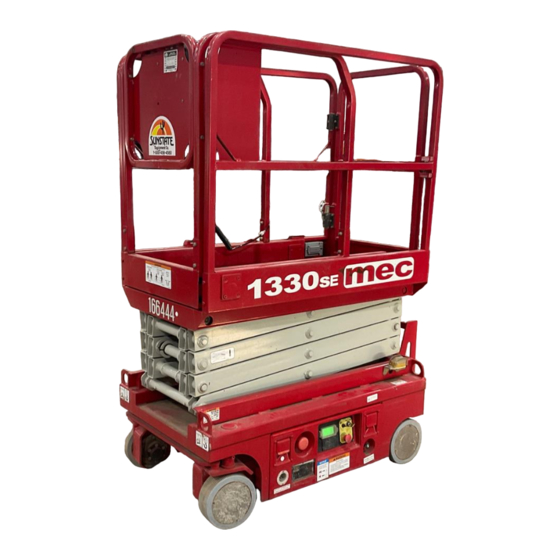

Self-propelled aerial work platform
Hide thumbs Also See for 1330SE:
Table of Contents

Advertisement

Quick Links

Service & Parts Manual
1330SE
ART_4907a
Serial Number Range
Part # 94123
16300001 - Up
November 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1330SE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mec 1330SE

Summary of Contents for Mec 1330SE

  • Page 1 Service & Parts Manual 1330SE ART_4907a Serial Number Range Part # 94123 16300001 - Up November 2019...
  • Page 2 1401 S. Madera Avenue, Kerman, CA 93630 USA Toll Free: 1 - 877 - 632 - 5438 Phone: 1 - 559 - 842 - 1500 Fax: 1 - 559 - 842 - 1520 info@MECawp.com www.MECawp.com Page  1330SE - Servce & Parts Manual...

  • Page 3: Table Of Contents

    ������ ������ ������ ������ ������ ������ ������ 38 Control Harness, 1 Of 2 ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ 39 Page  1330SE - Servce & Parts Manual...
  • Page 4 ������ ������ ������ ������ ������ ������ 88 Decals ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ 88 Page  1330SE - Servce & Parts Manual...

  • Page 5: Chapter 1 - Service

    All parts represented here are manufactured and supplied in accordance with MEC quality standards. We recommend that you use genuine MEC parts to ensure proper operation and reliable performance. To obtain maximum benefits from your MEC Aerial Work Platforms, always follow the proper operating and maintenance procedures.

  • Page 6: Section 1 - Mec Operator Policy

    Any procedures not found within this manual must be evaluated by the individual to assure oneself that they are “proper and safe.” Your MEC Aerial Work Platform has been designed, built, and tested to provide many years of safe, dependable service. Only trained, authorized personnel should be allowed to operate or service the machine.

  • Page 7: Section 2 - Safety Symbols & General Safety Tips

    Safety Symbols & General Safety Tips Safety Symbols & General Safety Tips MEC manuals and decals use symbols, colors and signal words to help you recognize important safety, operation and maintenance information. RED and the word DANGER – Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury������...

  • Page 8: Section 3 - Specifications

    *Working Height adds 6 feet (2 m) to platform height. **Weight may increase with certain options. *** Uniform Pressure of 1330SE can be reduced to 111.2 (542.93 kg/sq.M) (unloaded) to 142.2 (694.3 kg/ sq.M) (loaded) by extending the slide out platform Page 4 1330SE - Servce &...

  • Page 9: Section 4 - Torque Specifications

    Torque values apply to fasteners as received from the supplier, dry or when lubricated with normal engine oil������ If special graphite grease, molydisulphide grease, or other extreme pressure lubricants are used, these torque values do not apply������ Page 5 1330SE - Servce & Parts Manual...

  • Page 10: Bolt Torque SpecFCatOn - MetrC Standard

    Torque values apply to fasteners as received from the supplier, dry or when lubricated with normal engine oil������ If special graphite grease, molydisulphide grease, or other extreme pressure lubricants are used, these torque values do not apply������ Page 6 1330SE - Servce & Parts Manual...

  • Page 11: HydraulC Components Torque Table

    115 - 122 85 - 90 115 - 122 950 - 1050 107 - 119 130 - 140 176 - 190 130 - 140 176 - 190 1300 - 1368 147 - 155 Page 7 1330SE - Servce & Parts Manual...

  • Page 12: Section 5 - Maintenance Lock

    Rotate the Maintenance Lock away from the machine and let it hang down. Lower the platform until the Maintenance Lock rests securely on the link. Keep clear of the Maintenance Lock when lowering the platform. Maintenance Lock ART_4995 Page 8 1330SE - Servce & Parts Manual...

  • Page 13: Section 6 - Hydraulic, Electrical And Total System

    IMMEDIATELY REPORT TO YOUR SUPERVISOR ANY DEFECT OR MALFUNCTION������ ANY DEFECT SHALL BE REPAIRED PRIOR TO CONTINUED USE OF THE AERIAL WORK PLATFORM������ INSPECTION AND MAINTENANCE SHOULD BE PERFORMED BY QUALIFIED PERSONNEL FAMILIAR WITH THE EQUIPMENT������ Page 9 1330SE - Servce & Parts Manual...

  • Page 14: Section 7 - Primary Machine Components

    Hydraulic Unit Lift Points Component Motor Controller Tray Batteries Chassis Main Power/ Lower Emergency Stop Switch Battery Forklift Pocket Charger Entry Ladder Lower Controls / ECU Forklift Pocket Emergency Lowering ART_5229 Knob Page 10 1330SE - Servce & Parts Manual...

  • Page 15: Emergency Systems And Procedures

    The Emergency Lowering System is used to lower the platform in case of power failure. To lower the platform, pull the Emergency Lowering Knob, located near the Base Control panel. Emergency Lowering Knob ART_4986 Page 11 1330SE - Servce & Parts Manual...

  • Page 16: Free-Wheel ConfGuratOn For WNchNg Or TowNg

    Engage Brakes Before Driving ART_4998 Turn the Key Switch to the OFF position to reset the brake. BE SURE THAT THE BRAKES ARE ENGAGED BEFORE REMOVING THE WHEEL CHOCKS������ Page 12 1330SE - Servce & Parts Manual...

  • Page 17: LFt And Support The MachNe

    Lower the machine to rest on the jack stands and inspect for stability. To Lower The Machine Raise machine slightly and remove jack stands. Lower the machine and remove the jack. Remove chocks. Page 13 1330SE - Servce & Parts Manual...

  • Page 18: MachNe MaNtenance - General

    Watch for makeshift “fixes” which can jeopardize safety as well as lead to more costly repair������ Inspection and maintenance should be performed by qualified personnel familiar with the equipment������ Page 14 1330SE - Servce & Parts Manual...

  • Page 19: Pre-Start InspectOn ChecklSt

    Check each wheel for damage, bends and cracks. Remove the wheel covers and check each center lock nut for proper torque. Castle Nut Torque, Dry 19 ft-Ibs / 26 Nm Castle Nut Torque, Lubricated 14 ft-Ibs / 20 Nm Page 15 1330SE - Servce & Parts Manual...

  • Page 20: Frequent InspectOn ChecklSt

    Be sure that the battery retainers and cable connections are tight. Fully charge the batteries. Allow the batteries to rest 24 hours before performing this procedure to allow the battery cells to equalize. Page 16 1330SE - Servce & Parts Manual...
  • Page 21 Lower the platform onto the safety arm. CRUSHING HAZARD������ KEEP HANDS CLEAR OF THE SAFETY ARM WHEN LOWERING THE PLATFORM������ Inspect the center chassis area and scissor arms for burnt, chafed and pinched cables. Page 17 1330SE - Servce & Parts Manual...
  • Page 22 Failure of the key switch to activate the appropriate control panel could cause a Page 18 1330SE - Servce & Parts Manual...
  • Page 23 Result: The machine does not stop within the specified braking distance. NOTE: The brakes must be able to hold the machine on any slope it is able to climb������ Replace the brakes and repeat this procedure beginning with step 1. Page 19 1330SE - Servce & Parts Manual...
  • Page 24 Continue at full speed and note the time when your reference point on the machine passes over the finish line. The time should be 35-40 sec. Drive Speed - Slow Proper drive functions are essential to safe machine operation. The drive function should respond Page 20 1330SE - Servce & Parts Manual...
  • Page 25 NOTE: When checking for positive tank cap venting, air should pass freely through the cap������ Using a mild solvent, carefully wash the cap venting system. Dry using low pressure compressed air. Repeat step 2. Install the breather cap onto the hydraulic tank. Page 21 1330SE - Servce & Parts Manual...

  • Page 26: Annual InspectOn ChecklSt

    Result: The measurement is less than 30mm. Replace both wear pads. Apply a thin layer of dry film lubricant to the area of the chassis where the scissor arm wear pads make contact. Page 22 1330SE - Servce & Parts Manual...
  • Page 27 BODILY INJURY HAZARD������ SPRAYING HYDRAULIC OIL CAN PENETRATE AND BURN SKIN������ LOOSEN HYDRAULIC CONNECTIONS VERY SLOWLY TO ALLOW THE OIL PRESSURE TO DISSIPATE GRADUALLY������ DO NOT ALLOW OIL TO SQUIRT OR SPRAY������ Page 23 1330SE - Servce & Parts Manual...
  • Page 28 COMPONENT DAMAGE HAZARD������ THE PUMP CAN BE DAMAGED IF OPERATED WITHOUT OIL������ BE CAREFUL NOT TO EMPTY THE HYDRAULIC TANK WHILE IN THE PROCESS OF FILLING THE HYDRAULIC SYSTEM������ DO NOT ALLOW THE PUMP TO CAVITATE������ Page 24 1330SE - Servce & Parts Manual...

  • Page 29: Section 10 - Control System

    Motor Controller/ ECU2 (TM1) Batteries Pothole Switch (each side, inside wheel well) Main Power Switch Drive Motor Battery (under cover) Charger Height Sensor Lower Controls/ Potentiometer (under cover) Drive Motor ART_5097 (under cover) Page 25 1330SE - Servce & Parts Manual...

  • Page 30: Fault Codes

    Lower Controls - From Serial #16301161 LED Indicator LCD Screen Error Code Description GENERAL ALARM ECU GENERAL ALARM TM1 GENERAL ALARM PCU PCU CPU0 FAULT PCU CPU1 FAULT ECU ALARM PCU ALARM Page 26 1330SE - Servce & Parts Manual...
  • Page 31 PIN19, INP RELAY REDUNDANT CHECK FAULT PIN20, INP BRAKE REDUNDANT CHECK FAULT PIN23, INP M1 REDUNDANT CHECK FAULT PIN24, INP M2 REDUNDANT CHECK FAULT PRESSURE SENSOR N.1 OPEN CIRCUIT OR SHORT TO GND Page 27 1330SE - Servce & Parts Manual...
  • Page 32 TM1 ERR TRAC1 OVER CURRENT TM1 ERR TRAC2 OVER CURRENT TM1 ERR OVER TENSION TM1 ERR UNDER TENSION TM1 ERR HIGH TEMP PCB TM1 ERR HIGH TEMP RADIATOR TM1 ERR OUT1 OVER CURRENT Page 28 1330SE - Servce & Parts Manual...
  • Page 33 AL TM M1 OPEN AL TM M2 OPEN AL TM M1 WIRING AL TM M2 WIRING AL TM EXCITATION OPEN AL TM EXCITATION WIRING AL PCU INITCHECK PCU C0 FAULT CODE PCU C1 FAULT CODE Page 29 1330SE - Servce & Parts Manual...

  • Page 34: TroubleshootNg Table

    System Communication Fault: Check communications cable connections and other wiring. Contact MEC Customer Service System Initialization Fault: TM1 may be malfunctioning. Contact MEC Customer Service. System Initialization Fault: PCU may be malfunctioning. System Communication Fault: Check communications cable connections and other wiring.

  • Page 35: Parameter Adjustment

    Parameter Adjustment PARAMETERS SHOULD BE ADJUSTED ONLY IF THE FUNCTION IS OPERATING OUTSIDE OF MACHINE SPECIFICATIONS, OR IF WRITTEN APPROVAL IS OBTAINED FROM MEC PRIOR TO MAKING THE CHANGE������ Main Screen Display The following screen is displayed during normal machine operation at the Base Controls station.

  • Page 36: Menu Screen DSplay

    Return to Main Screen Access ECU/PCU/TM diagnostic screen Access Tool Settings screen Access Password Input screen Access Fault Record screen Access Parameters Settings screen (requires password) Access Machine Settings screen Access Calibration screen Page 32 1330SE - Servce & Parts Manual...
  • Page 37 November 2019 Calibration Screen Display The Menu Screen is reached by pressing the Calibration icon on the main screen. ART_5087 An access code is necessary for some calibration screens. Contact MEC Customer Service for assistance. Icon Description Return to Main Screen...
  • Page 38 The X Axis is the machine’s fore-and-aft axis. The Y Axis is the machine’s side-to-side axis. ALL SYSTEM SAFETY FEATURES ARE DISABLED WHEN IN CALIBRATION MODE������ NORMAL FUNCTION RETURNS UPON EXIT������ Page 34 1330SE - Servce & Parts Manual...
  • Page 39 Confirm that the Y-Axis is level side-to-side, then press Enter (arrow at lower right), then press SAVE. This procedure is finished. Turn the Key Switch to the OFF position, then to either Platform or Base positions to return to normal operation. Page 35 1330SE - Servce & Parts Manual...

  • Page 40: Section 11 - Schematics

    S te e r C ylinder Steer Valve Steer Relief Lift Valve Main Relief G e a r P um p M o tor F ilter T ank 1330 HYDRAULIC SCHEMATIC ART_5053 Page 36 1330SE - Servce & Parts Manual...

  • Page 41: HydraulC UnT

    Secton 11 - Schematcs November 2019 Hydraulic Unit Breather Cap/ Dipstick Hydraulic Reservoir Steer Relief Steer Valve Lift Hose Right Steer Hose Left Steer Hose Lift Valve Lift Relief Pump Motor 1330 HYDRAULIC UNIT ART_5066 Page 37 1330SE - Servce & Parts Manual...

  • Page 42: ElectrCal SchematC

    Secton 11 - Schematcs November 2019 Electrical Schematic 1330 ELECTRICAL SCHEMATIC ART_5054 Page 38 1330SE - Servce & Parts Manual...

  • Page 43: Control Harness, 1 Of 2

    A5 WH GND BK Lift A2 WH Motor Controller ECU2 DC Contactor A22 WH Contactor GND BK Relay 003A RD 002 RD PWOUT RD GND BK 1330 CONTROL HARNESS, 1 OF 2 ART_5056 Page 39 1330SE - Servce & Parts Manual...

  • Page 44: Control Harness, 2 Of 2

    Lift Down Valve Valve Coil Drive Motor Brake(Left) + Brake(Left) - Brake(Right) + Brake(Right) - Height Sensor Pothole Switch Normally Open Normally Closed Not used WH/GN 1330 CONTROL HARNESS, 2 OF 2 ART_5057 Page 40 1330SE - Servce & Parts Manual...

  • Page 45: PN IdentFCatOn, Ecu Harness Plug

    Main Contactor Coil TM-Motor (Right) Feedback TM-Motor (Left) Feedback PCU Power Left Motor Brake Coil PCU Power Right Motor Brake Coil Ground Power Ground Ground Ground 1330 PIN IDENTIFICATION, ECU HARNESS PLUG ART_5058 Page 41 1330SE - Servce & Parts Manual...

  • Page 46: PN IdentFCatOn, Motor Controller Ecu2 Harness Plug

    Pin Identification, Motor Controller ECU2 Harness Plug Motor Controller ECU2 Pin # Color Place Pin # Color Place Ground Ground Ground CANL CANL CANH Power Power Power 1330 PIN IDENTIFICATION, MOTOR CONTROLLER (ECU2) HARNESS PLUG ART_5059 Page 42 1330SE - Servce & Parts Manual...

  • Page 47: PN IdentFCatOn, MaN Harness Plugs

    GROUND GROUND GROUND GROUND To Height Sensor, Pothole Switch Pin # Color Place Pin # Color Place POWER POWER POWER POWER POWER GROUND GROUND GROUND 1330 PIN IDENTIFICATION, MAIN HARNESS PLUGS ART_5060 Page 43 1330SE - Servce & Parts Manual...

  • Page 48: PN IdentFCatOn, Platform Controls, Com Cable

    Secton 11 - Schematcs November 2019 Pin Identification, Platform Controls, COM Cable Pin # Color Pin # Color Platform Control Module 1330 PIN IDENTIFICATION, PLATFORM CONTROLS/COM CABLE ART_5061 Page 44 1330SE - Servce & Parts Manual...

  • Page 49: PN IdentFCatOn, ChassS ConnectOns

    PRESSURE SWITCH PRESSURE SWITCH HEIGHT SENSOR POTHOLE SWITCH HEIGHT SENSOR POTHOLE SWITCH HEIGHT SENSOR PRESSURE SENSOR Height Sensor Pothole Switch Normally Open Normally Closed Not used WH/GN 1330 PIN IDENTIFICATION, CHASSIS CONNECTIONS ART_5062 Page 45 1330SE - Servce & Parts Manual...

  • Page 50: WRNg DAgram

    Secton 11 - Schematcs November 2019 Wiring Diagram 1330 WIRING DIAGRAM ART_5055 Page 46 1330SE - Servce & Parts Manual...

  • Page 51: Chapter 2 - Parts

    This Parts sections consists of illustrated parts sections and is designed to provide you, the customer, with illustrations and the list of associated parts needed to properly maintain the MEC self-propelled aerial work platform. When used in conjunction with the Service section in this manual and the Operator’s Manual (provided separately), this manual will assist you in making necessary adjustments...

  • Page 52: Section 12 - Chassis

    Secton 12 - Chasss November 2019 Chassis Assembly Chassis Assembly Chassis Assembly 1330 ART_5035 Page 48 1330SE - Servce & Parts Manual...
  • Page 53 53066 SHCS M10-1.50 × 15 41197 Switch, Limit 53065 SHCS M04-0.70 × 30 41315 Switch Cover 41199 Thrust Washer 41202 Bearing 41316 Steer Linkage 41198 Cover, Switch 41317 Chassis Weldment 41318 Cover Page 49 1330SE - Servce & Parts Manual...

  • Page 54: Pothole ProtectOn Assembly

    Secton 12 - Chasss November 2019 Pothole Protection Assembly Pothole Protection Assembly 1330 ART_5036 Page 50 1330SE - Servce & Parts Manual...
  • Page 55 WSHR M14 Standard Flat 50303 NNYL M14 × 2.00 41215 Gas Spring 41216 Wheel Annul 53056 HHMS M05-0.80 × 12 41217 Wheel 41319 Mid Linkage Weldment 41320 Mid Linkage Weldment 41220 Press Axes Seat Page 51 1330SE - Servce & Parts Manual...

  • Page 56: SteerNg Components

    Secton 12 - Chasss November 2019 Steering Components Steering Components 1330 ART_5037 Page 52 1330SE - Servce & Parts Manual...
  • Page 57 41233 Wheel Shaft 41234 Connecting Plate 50033 HHCS M10-1.50 × 25 41327 Shim 41236 Castle Nut M16 × 1.50 41328 Shaft End Cover Plate 50030 HHCS M08-1.25 × 20 41238 Right Yoke Page 53 1330SE - Servce & Parts Manual...

  • Page 58: DrVe Wheel Assembly

    Secton 12 - Chasss November 2019 Drive Wheel Assembly Drive Wheel Assembly 1330 ART_5038 Page 54 1330SE - Servce & Parts Manual...
  • Page 59 WSHR M04 Spring Washer 50284 WSHR M04 Standard Flat 50050 NNYL M12 × 1.75 41232 41240 Drive Motor Assembly 42515 Reducer, Drive 43751 Right Drive Motor 43752 Left Drive Motor 42889 Brake Page 55 1330SE - Servce & Parts Manual...

  • Page 60: Component Tray - To SerAl #16300001-16301160

    Secton 12 - Chasss November 2019 Component Tray - To Serial #16300001-16301160 Component Tray - Serial #16300001-16301160 1330 ART_5039a Page 56 1330SE - Servce & Parts Manual...
  • Page 61 41255 Glide Track 50524 NNYL M05-0.80 50034 HHCS M10-1.50 × 30 41337 Fix Panel 92107 Fuse Holder ATO/ATC Black 16GA 94231 Fuse 2 Amp ATO 93099 Fuse 10 Amp REF - Reference Page 57 1330SE - Servce & Parts Manual...

  • Page 62: Component Tray - From SerAl #16301161

    Secton 12 - Chasss November 2019 Component Tray - From Serial #16301161 Component Tray - From Serial #16301161 1330 ART_5039b Page 58 1330SE - Servce & Parts Manual...
  • Page 63 SHCS M04-0.70 × 12 41934 Battery Box Weldment 41065 Power Switch 41254 Charger 50591 BHCS M05-0.80 × 20 41255 Glide Track 50524 NNYL M05-0.80 50034 HHCS M10-1.50 × 30 41337 Fix Panel REF - Reference Page 59 1330SE - Servce & Parts Manual...

  • Page 64: HydraulC Power UnT

    Secton 12 - Chasss November 2019 Hydraulic Power Unit ILLUSTRATION No. 1330 Hydraulic Power Unit Art_5516 Page 60 1330SE - Servce & Parts Manual...
  • Page 65 0.8kW Motor, Pump Drive - Up To Serial #1631055 42891 1.2kW Motor, Pump Drive - From Serial #1631056 42894 Coupler, Pump Drive (If replacing 0.8kW) 43812 Pressure Compensation Valve 43813 Relief Valve Page 61 1330SE - Servce & Parts Manual...

  • Page 66: Lower Controls - To SerAl #16300001-16301160

    Secton 12 - Chasss November 2019 Lower Controls - To Serial #16300001-16301160 Lower Controls - Serial #16300001-16301160 1330 ART_5040a Page 62 1330SE - Servce & Parts Manual...
  • Page 67 Secton 12 - Chasss November 2019 Item Part Number Description Qty������ 41558 Key Switch Page 63 1330SE - Servce & Parts Manual...
  • Page 68 Secton 12 - Chasss November 2019 Lower Controls - From Serial #16301161 Lower Controls - Serial #16301161 1330 ART_5040b Page 64 1330SE - Servce & Parts Manual...
  • Page 69 Toggle Switch Kit (Includes Keys) 41938 Key Switch Kit 41939 Electromechanical Panel Kit 41940 Buzzer Kit 41422 Emergency Stop 41942 PCB & Display Kit 41943 Screen Protector Kit 41668 Key Replacement, Spare Page 65 1330SE - Servce & Parts Manual...

  • Page 70: Section 13 - Scissor

    Secton 13 - Scssor November 2019 Scissor Installation Scissor Installation Scissor Installation 1330 ART_5041 Page 66 1330SE - Servce & Parts Manual...
  • Page 71 Bearing, Lift Cylinder 41338 Top Slider Axle 41256 Bottom Slider 41339 Chassis Assembly 41257 Bearing 41258 Fastness Base Axle 50327 HHCS M06-1.00 × 35 50000 WSHR M06 Standard Flat 50047 NNYL M06 × 1.00 Page 67 1330SE - Servce & Parts Manual...

  • Page 72: ScSsor Assembly

    Secton 13 - Scssor November 2019 Scissor Assembly Scissor Assembly 1330 ART_5042 Page 68 1330SE - Servce & Parts Manual...
  • Page 73 HHCS M06-1.00 × 25 41350 Pothole Pressboard 41114 Block 41290 Lift Cylinder 41262 Safety Holder 41263 Safety Arm 50047 NNYL M06 × 1.00 41352 Through Line Bridge 41582 Collar 53056 HHMS M05-0.80 × 12 Page 69 1330SE - Servce & Parts Manual...

  • Page 74: Section 14 - Platform

    Secton 14 - Platform November 2019 Platform Installation Platform Installation Platform Installation 1330 ART_5043 Page 70 1330SE - Servce & Parts Manual...
  • Page 75 Secton 14 - Platform November 2019 Item Part Number Description Qty������ 41356 Platform Assembly 41287 Bearing, Lift Cylinder 41354 Circle, Washer 41355 Circlips 41259 Scissor Assembly 41256 Bottom Slider Page 71 1330SE - Servce & Parts Manual...

  • Page 76: MaN Platform Assembly

    Secton 14 - Platform November 2019 Main Platform Assembly Main Platform Assembly 1330 ART_5044 Page 72 1330SE - Servce & Parts Manual...
  • Page 77 WSHR M08 Standard Flat 50048 NNYL M08 × 1.25 91598 Cover, Outlet Box Weatherproof 92007 Outlet, 15A 120V GFCI 91597 Outlet Box, 1/2” Weatherproof 53040 HHSM M08-15 × 0.50 92008 Strain Relief 0.50” Page 73 1330SE - Servce & Parts Manual...

  • Page 78: Platform ExtensOn Assembly

    Secton 14 - Platform November 2019 Platform Extension Assembly Platform Extension Assembly 1330 ART_5045 Page 74 1330SE - Servce & Parts Manual...
  • Page 79 Slippage Of Crutch 53045 HHMS M05-0.80 × 14 53069 CSCS M06-1.00 × 20 41360 Roller Installation 41141 Roller 41131 Bearing 41267 Circlip 8909 Enclosure Service Manual 50191 THMS M10-32 × 0.50 50238 NNYL M10-32 Page 75 1330SE - Servce & Parts Manual...

  • Page 80: Platform ExtensOn Lock

    Secton 14 - Platform November 2019 Platform Extension Lock Platform Extension Lock SE Series ART_5046 Page 76 1330SE - Servce & Parts Manual...
  • Page 81 Qty������ 41140 Locking Device 50049 NNYL M10 × 1.50 50002 WSHR M10 Standard Flat 41143 Footpedal 41144 Lock Pin Housing 41145 Spring 41146 Lock Pin 41147 Bracket 50020 HHCS M10-1.50 × 50 Page 77 1330SE - Servce & Parts Manual...

  • Page 82: Platform Controls

    Secton 14 - Platform November 2019 Platform Controls Platform Controls 1330 ART_5047 Page 78 1330SE - Servce & Parts Manual...
  • Page 83 Enclosure, Upper Box 41568 Alarm 41569 Sensor Board/Main Board Cable 41570 PC Board 92408 Push Button E-Stop Red Shamrock 90714 Base Selector Switch 8083 Block Contact, Normally Closed 41571 Cable, E-Stop & Alarm Page 79 1330SE - Servce & Parts Manual...

  • Page 84: HNdley Platform Controls

    Secton 14 - Platform November 2019 Hindley Platform Controls ILLUSTRATION No. 1330SE Hindley Controller Art_5582 Page 80 1330SE - Servce & Parts Manual...
  • Page 85 Continuous Tone Alarm, 6-28V Z003 M.S. 1/4-20 x 1/2 HEX HEAD 43826 Fastener, Thread Forming, Plastite #4 43827 E-Stop Button 43828 Switch Mount 94433 Single Contact Block, 1 NC, 22mm, Harmony XB4 Page 81 1330SE - Servce & Parts Manual...

  • Page 86: Section 15 - Hydraulics

    Secton 15 - Hydraulcs November 2019 Lift Cylinder Assembly Lift Cylinder Assembly Lift Cylinder Assembly 1330 ART_5048 Page 82 1330SE - Servce & Parts Manual...
  • Page 87 Support (E-Down Cable) 41292 Support (E-Down Bracket) 53044 SHMS M05-0.80 × 10 41293 Jib Boom 41294 Cable End Retainer 53063 HHMS M04-0.70 × 8 41295 Seal Kit Lift Cylinder 41252 Emergency Down Cable Page 83 1330SE - Servce & Parts Manual...

  • Page 88: Hoses & FTtNgs

    Secton 15 - Hydraulcs November 2019 Hoses & Fittings S tee r C ylinder H ydraulic pow er unit H ose A ssem bly A dapter U nion Hoses & Fittings 1330 ART_5049 Page 84 1330SE - Servce & Parts Manual...
  • Page 89 Item Part Number Description Qty������ 41296 Straight Fitting 41297 Straight Fitting 41298 Straight Fitting 41299 Straight Fitting 41300 Elbow 41365 Steer Hose Assembly 41366 Steer Hose Assembly 41367 Lift Cylinder Hose Assembly Page 85 1330SE - Servce & Parts Manual...

  • Page 90: ElectrCal Harness

    Coil Limit Power Unit Switch Beacon Limit Switch Relay Ground Control Assembly Left Motor Charger Right Motor Power Fuse Contactor Motor Switch Assembly Controller Battery Motor ILLUSTRATION No. 1330 Electrical Harness Art_5515 Page 86 1330SE - Servce & Parts Manual...
  • Page 91 DC Contactor (Refer To Page 56 or 58) 150A Fuse Assembly (Refer To Page 56 or 58) Power Switch (Refer To Page 56 or 58) Battery (Refer To Page 56 or 58) Charger (Refer To Page 56 or 58) Page 87 1330SE - Servce & Parts Manual...

  • Page 92: Section 16 - Decals

    Secton 16 - Decals November 2019 Decals Decals Page 88 1330SE - Servce & Parts Manual...
  • Page 93 41637 Qty. - 1 94114 Qty. - 2 94115 Qty. - 1 94116 Qty. - 2 41645 Qty. - 1 42534 Qty. - 1 91850 Qty. - 2 94779 Qty. - 2 Page 89 1330SE - Servce & Parts Manual...
  • Page 94 Decal, Serial Plate, Slab Machines 41640 Decal Instructions - Platform Controller Normal Position 41648 Decal - Lanyard Anchorage 94571 Decal, Floor Loading - 1330SE & Micro 19 41636 Decal Instructions - Emergency Lower 41652 Decal Danger - Safety Rules 41634...
  • Page 95 November 2019 Notes Page 91 1330SE - Servce & Parts Manual...
  • Page 96 November 2019 Notes Page 92 1330SE - Servce & Parts Manual...
  • Page 97 November 2019 Notes Page 93 1330SE - Servce & Parts Manual...
  • Page 98 MEC Parts Order Form Phone: 559-842-1523 Fax: 559-400-6723 Email: Parts@mecawp������ c om Please fill out completely Date: Ordered By: Account: Your Fax No.: Ship to: Bill to: Purchase Order Number Ship VIA ** All orders MUST have a Purchase Order Number...
  • Page 99 MEC Aerial Platform Sales Corp. and is found upon inspection by MEC Aerial Platform Sales Corp. to be defective in material and/or workmanship. MEC Aerial Platform Sales Corp. shall not be liable for any consequential, incidental or contingent damages whatsoever.
  • Page 100 MEC Aerial Work Platforms 1401 S. Madera Avenue, Kerman, CA 93630 USA Toll Free: 1 - 877 - 632 - 5438 Phone: 1 - 559 - 842 - 1500 Fax: 1 - 559 - 842 - 1520 info@MECawp.com www.MECawp.com...
