Diesel Engine Shown.
Dual Fuel Application differs
only in engine start-motor location.
ART_3284
"3084 Speed Level™ Sigma Lift" Service and Parts Manual
Hydraulic Pump
Engine
Flywheel
KTR
Pump Drive
Hub
KTR Housing
H
Y D R A U L I C

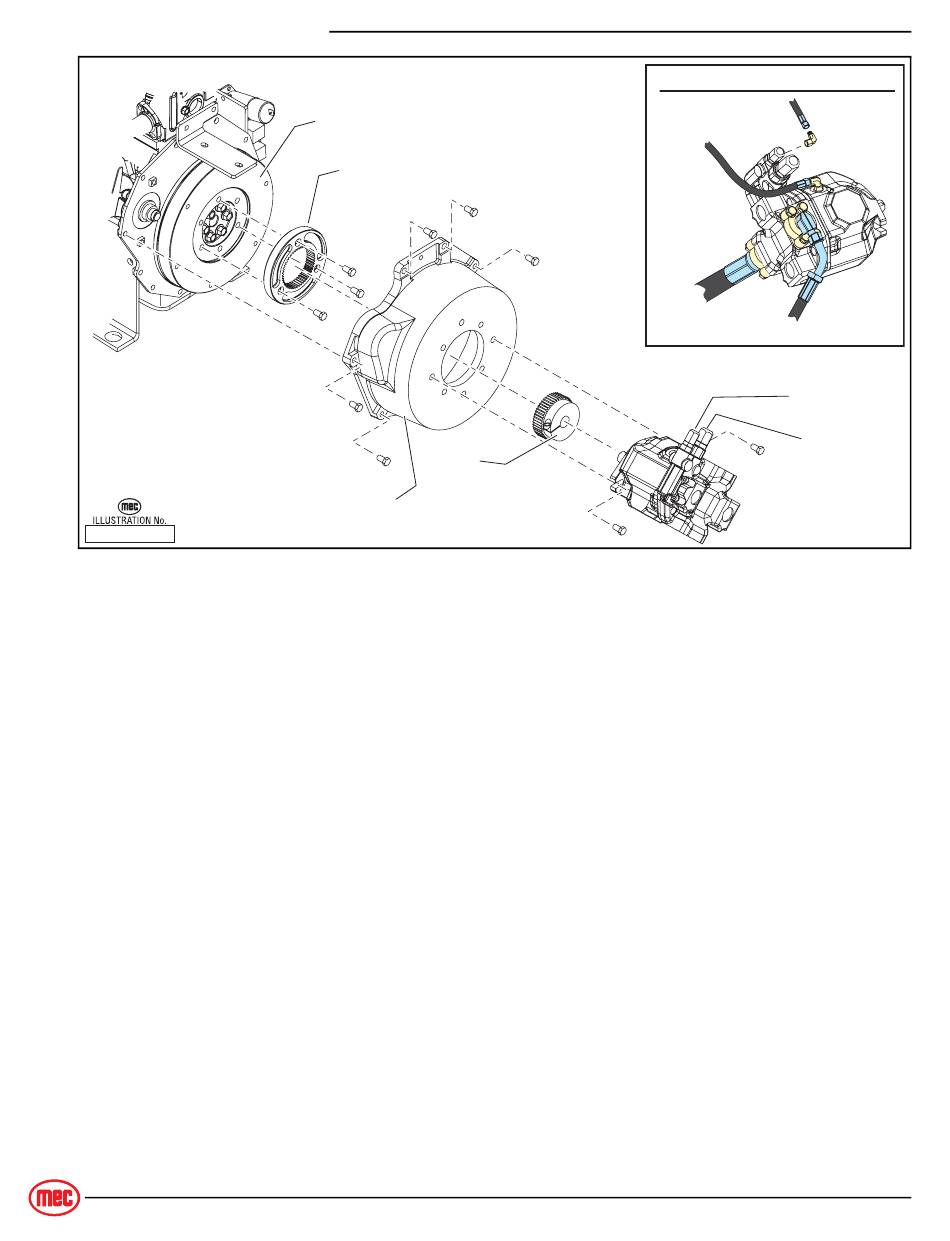

Figure 1-3: Hydraulic Pump - 3084RT
Pump Hose Connections
3084RT
Case Drain
Suction
P - 3 0 8 4 R T
U M P
Load Sense
Pressure
Standby
Pressure
Relief
Main
Pressure
Relief
October 2009
Page 1-7
