Routing
•
SW2 is connected to SW1 through PNNI, and both switches are part of the same emulated LAN.
To reach SW2 with the Ethernet-based NMS, create an IP route that assigns SW1's switch client as SW2's default
gateway to the network 128.205.99.0. Enter the following on SW2 (see Figure 5-3):
Smart6500 # add route
DestNetIP() : 128.205.99.0
GatewayIP() : 90.1.1.254
Smart6500 #
Switch SW2 can now communicate with the NMS on the Ethernet network.
To see the route, enter the
Smart6500 # show route
ROUTE NET TABLE
destination gateway
------------------------------------------------------------------------
0.0.0.0 0.0.0.0
90.1.1.0 90.1.1.33
128.205.99.0 90.1.1.254
------------------------------------------------------------------------
ROUTE HOST TABLE
destination gateway
------------------------------------------------------------------------
127.0.0.1 127.0.0.1
------------------------------------------------------------------------
Smart6500 #
ELAN
Switch client
on SW1,
90.1.1.254

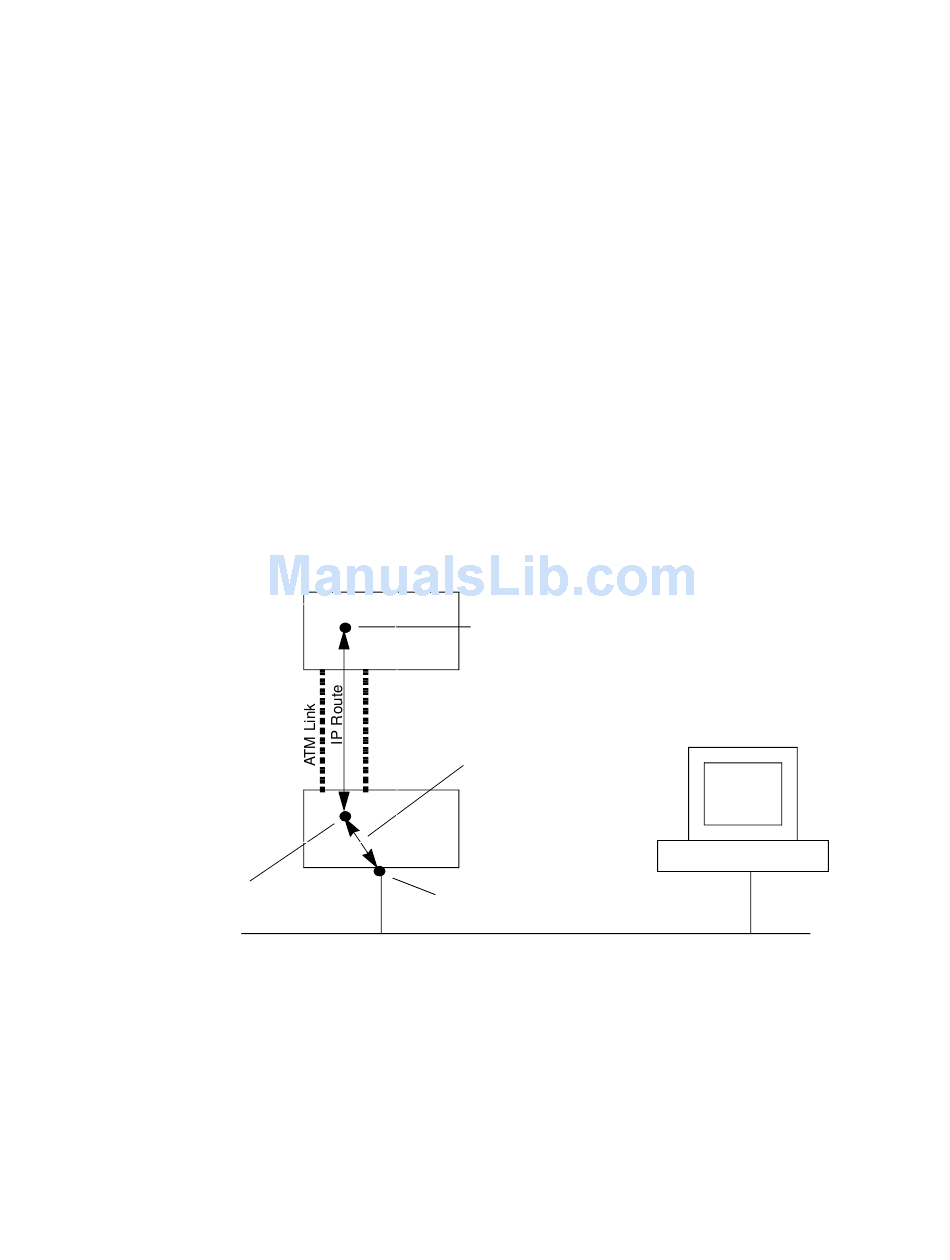

Figure 5-3 IP routing through SW1 for connectivity to the Ethernet network

< address of the Ethernet network to reach
< IP address of SW1's LANE client
command on SW2
show route
flags Refcnt
1 0
1 0
1 3
flags Refcnt
5 0
SW2
SW1
Ethernet interface
128.205.99.254
Ethernet network 128.205.99.0
Use Interface
0 zn0
1688 zn1
5660 ei0
Use Interface
0 lo0
Switch client
on SW2, 90.1.1.33
Switch client on SW1 is
defined as SW2's
gateway to the Ethernet
IP Routing
NMS
SmartSwitch 6500 User Guide 5-7
