Figure 4-1 Physical Connectivity For Multi-Peer Group Example - Cabletron Systems SmartSwitch 6500 User Manual

PNNI Routing
Physically connect switches SWA1, SWA2, and SWA3. Similarly, physically connect switches
1.
SWB1, SWB2, and SWB3 (see Figure 4-1).
Peer Group A
Peer Group Leader
Peer Group A = 50:39:00:00:00:00:00:00:00:00:01:00:00:00

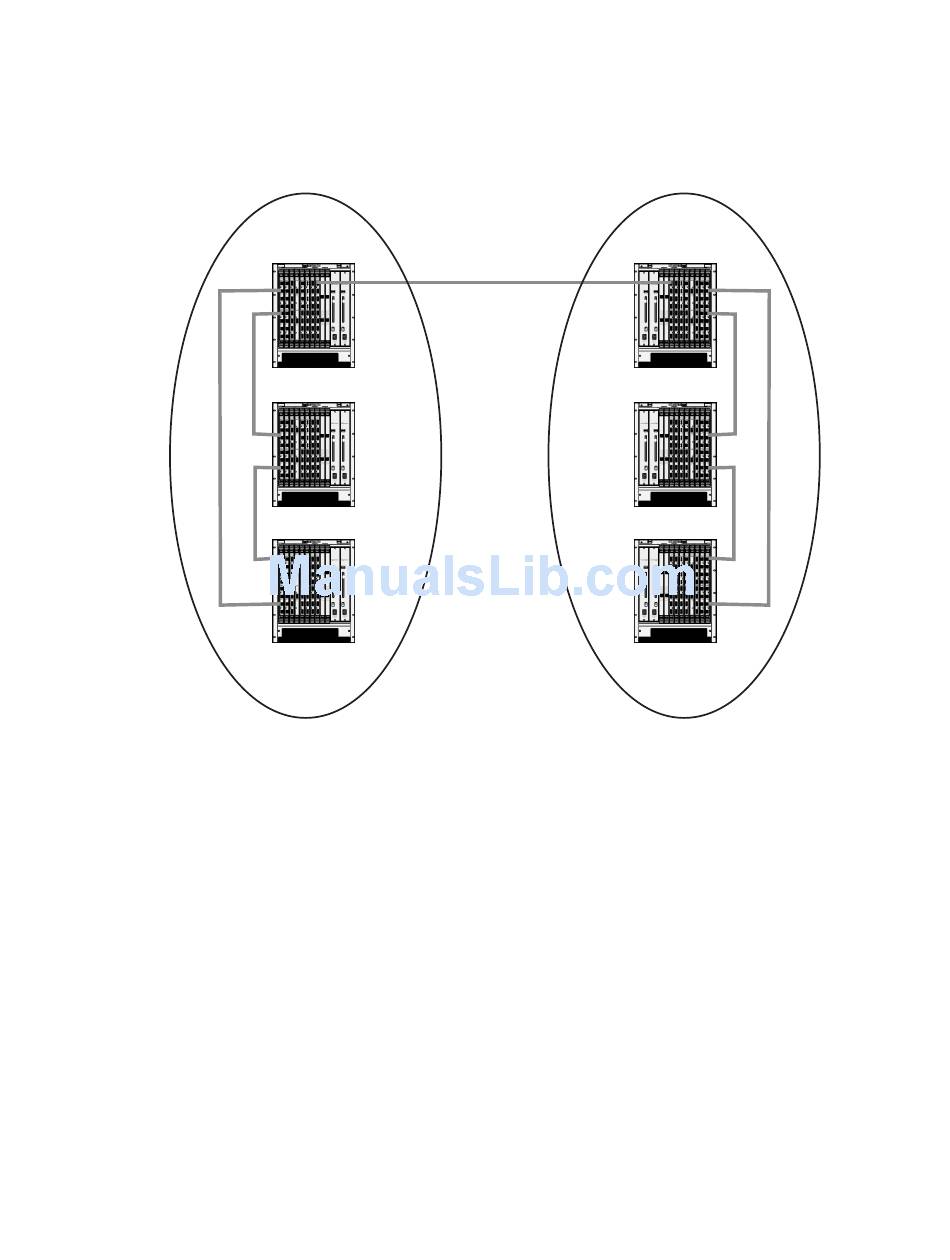

Figure 4-1 Physical connectivity for multi-peer group example

2. Use the
set pnnipeergroupid
50:39:00:00:00:00:00:00:00:00:01:00:00:00. The three remaining switches with the default peer
group ID will comprise group B:
A1 # set pnnipeergroupid
NodeIndex(1)
PeerGroupId(50:39:00:00:00:00:00:00:00:00:00:00:00:00): 50:39:00:00:00:00:00:00:
00:00:01:00:00:00 < Change the tenth byte to 01
Console: You have changed the node configuration.
make sure its parent node configuration is compatible with the new configuration.
Console: You will have to reboot for the new node configuration to take effect.
A1 #
Reboot the switch, and repeat the process for switches SWA2 and SWA3.
SWA3
SWA2
SWA1
Peer Group B = 50:39:00:00:00:00:00:00:00:00:00:00:00:00
command to change the peer group ID of the switches in group A to
:
If this node has a parent node,
Multi-level PNNI Topology
Peer Group B
Peer Group Leader
SWB3
SWB2
SWB1
SmartSwitch 6500 User Guide 4-3
