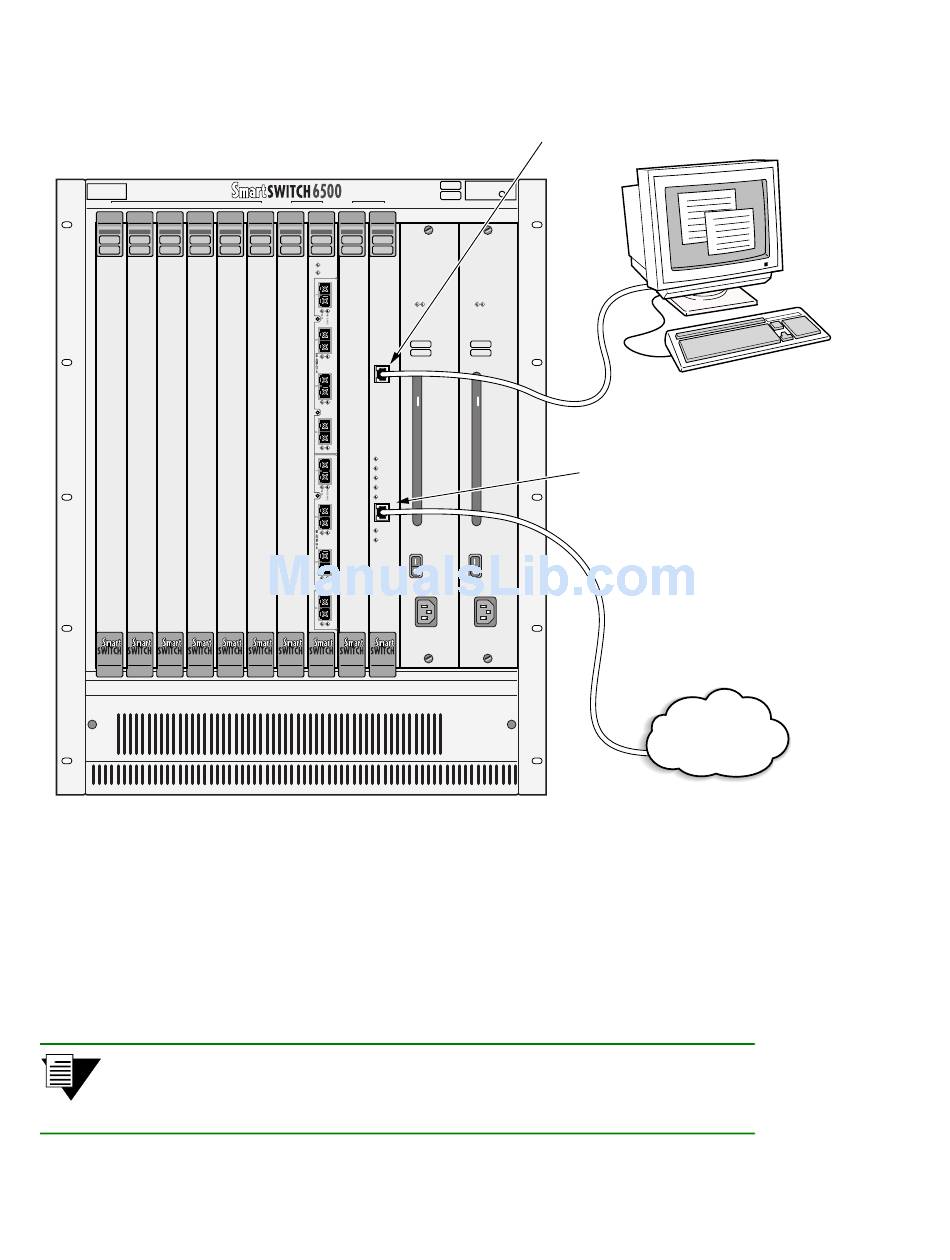

Figure 2-9 SmartSwitch 6500 connections for configuration

2.3.2

Backup/Redundancy Configuration

Backup/redundancy configuration consists of setting up the SmartSwitch 6500 to save configuration backup files used
by the master TSM/CPU and slave TSM/CPU (if any). The backup configuration file contains all configuration
changes made to the master TSM/CPU. For example, the backup file contains ELAN information, port configuration
changes, PVCs, and so on.
Note The backup file does not contain an image of the switch operating firmware. For
information on upgrading or replacing switch firmware, see Chapter 8, "Upgrades
and Firmware."
