Switch Installation and Setup

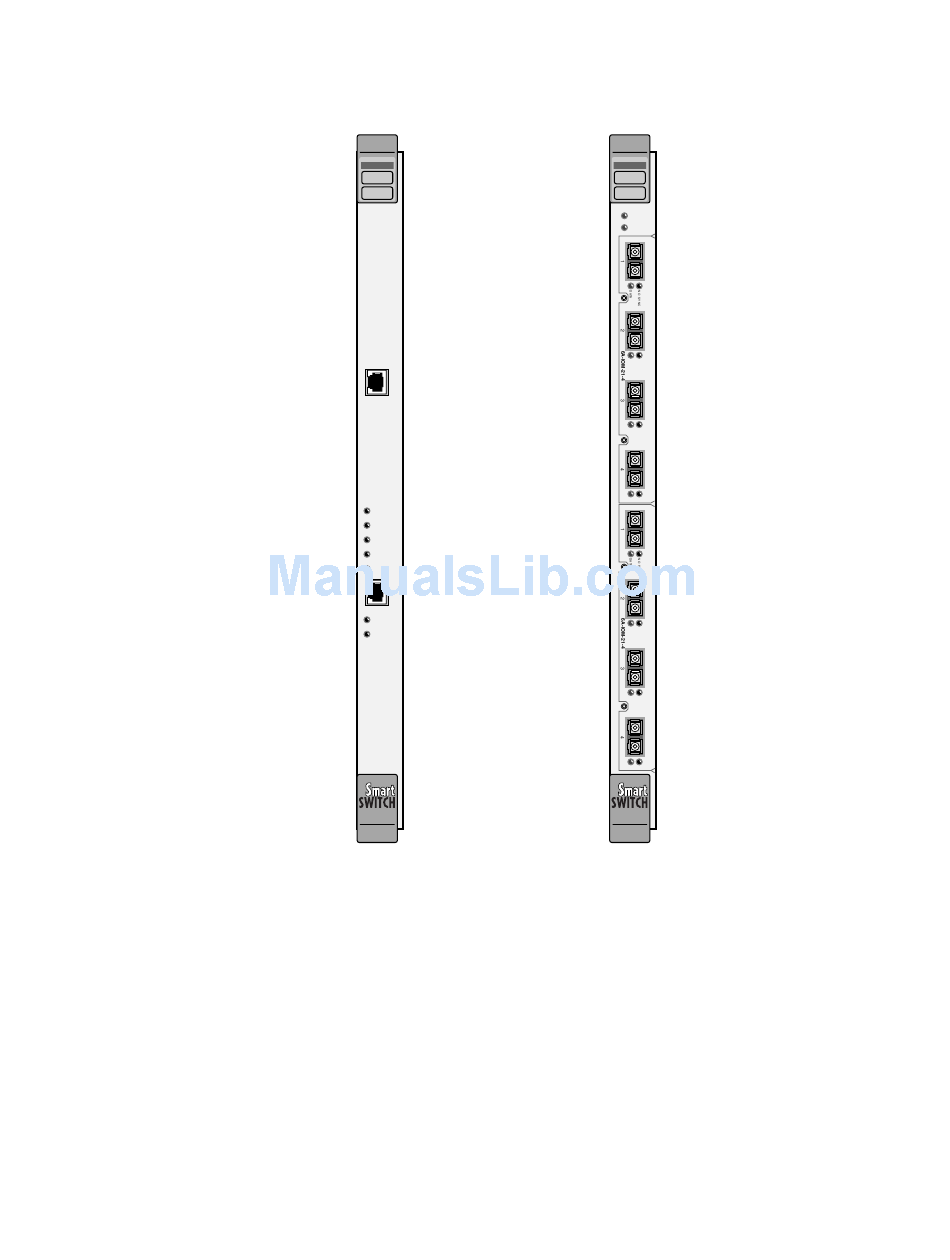

Figure 2-2 SmartSwitch CSM and TSM modules

2.1.2

Unpacking

Carefully unpack each component of the SmartSwitch 6500 (chassis, TSMs, CSM, and so on).
1.
Inspect each component for damage. Do not attempt to install damaged components. Contact the
Cabletron Systems Global Contact Center immediately (see Appendix C, "Technical Support")
Inspect the TSMs. Make certain that the I/O modules installed are of the correct type and number
2.
(See Table 2-1).
CSM
ATM
COM
POWER
ACTIVE
STANDBY
FAIL
ENET RDY
ENET
TX DATA
RX DATA
Receiving the SmartSwitch 6500
TSM
ATM
TSM FAIL/OK
CPU FAIL/MODE
B
SmartSwitch 6500 User Guide 2-3
