Switch Installation and Setup

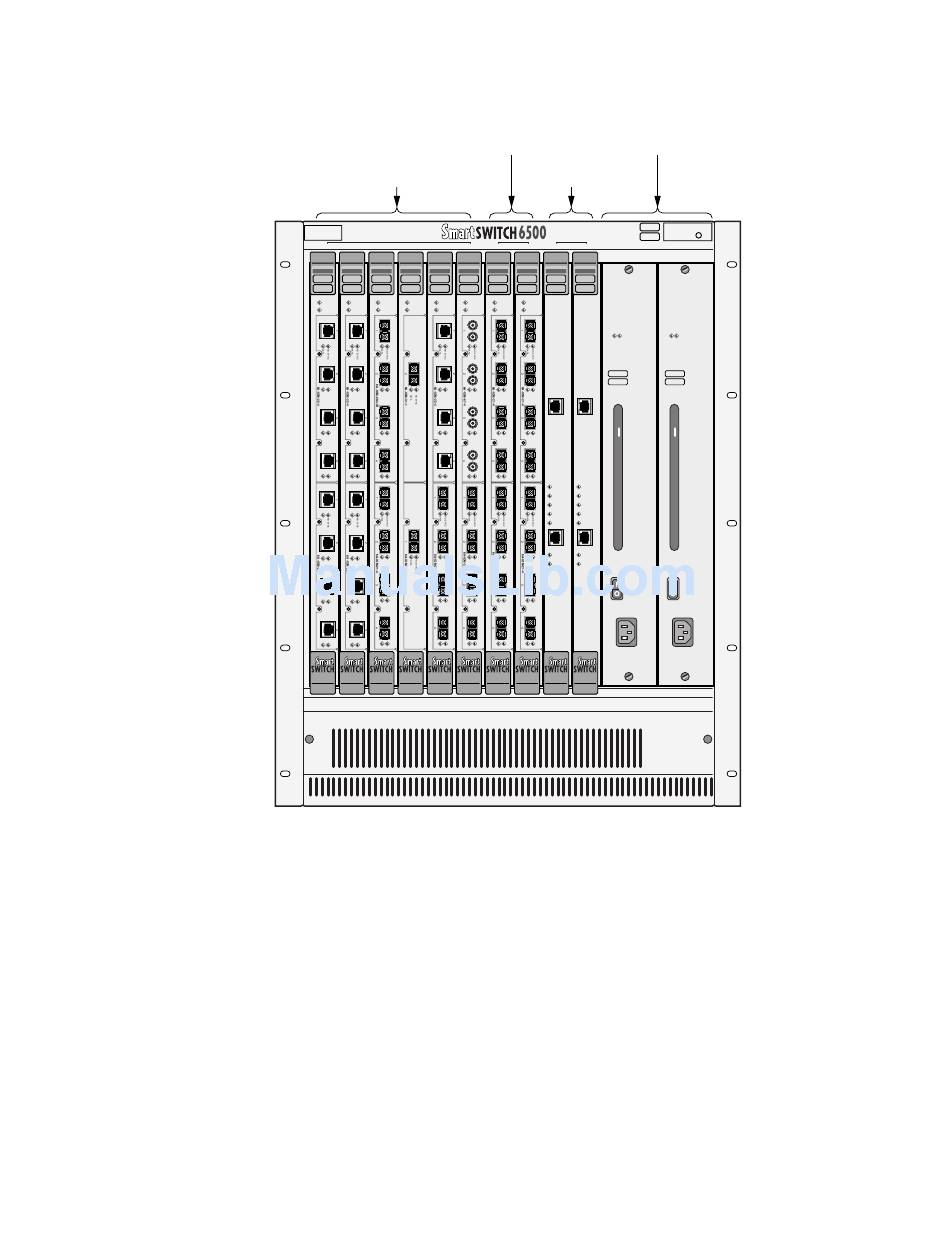

Figure 2-4 Module placement in the SmartSwitch 6500 chassis

2.2.3

Installing the CSM

Follow these instructions to install the CSM module into the chassis.
Remove the metal blank that covers either slot 9 or slot 10 of the chassis (CSMs can reside only in
1.
slots 9 and 10). See the legend on the top edge of the SmartSwitch 6500 chassis.
Open the ejectors at the top and bottom of the CSM module.
2.
With the ejector labeled 6A-CSM512 at the top, align the top and bottom of the CSM module with
3.
the tracks in the slot (see Figure 2-5).
Slide the CSM module into the chassis. The CSM module obscures the view of the tracks at the
4.
bottom of the chassis, so be sure to look at that area as you begin to slide the module into the chassis.
5. Close the ejectors. The installation is complete.
TSM With CPU
Slots 7 & 8
(Without CPU) or
Other Modules
Slots 1 – 6
1 2 3 TSM 4 5 6
ATM ATM ATM ATM ATM ATM ATM
TSM FAIL/OK TSM FAIL/OK TSM FAIL/OK TSM FAIL/OK TSM FAIL/OK TSM FAIL/OK TSM
CPU FAIL/MODE CPU FAIL/MODE CPU FAIL/MODE CPU FAIL/MODE CPU FAIL/MODE CPU FAIL/MODE CPU
A
B B B B B
TSM
Power
Supplies
CSM
Slots 9 & 10
7 TSM/CPU 8 9 CSM 10 PS1 PS2
ATM ATM ATM
FAIL/OK TSM FAIL/OK
FAIL/MODE CPU FAIL/MODE
PWR REDUNDANCY PWR
COM COM
POWER POWER
ACTIVE ACTIVE
STANDBY STANDBY
FAIL FAIL
ENET RDY ENET RDY
ENET ENET
TX DATA TX DATA
B
RX DATA RX DATA
100 - 125V - 8.0A 100 - 125V - 8.0A
200 - 250V - 4.0A 200 - 250V - 4.0A
50/60 Hz
Switch Installation and Assembly
REDUNDANCY
50/60 Hz
SmartSwitch 6500 User Guide 2-7
