Switch Installation and Setup
2.2

SWITCH INSTALLATION AND ASSEMBLY

The following is a list of steps for assembling your SmartSwitch 6500. Refer to Figure 2-4 for proper module
placement.
2.2.1

Mounting the Chassis

Find someone to assist you. The SmartSwitch 6500 chassis is heavy enough to make this a
1.
two-person task.
2. Select a spot on a standard 19 inch equipment rack that provides at least two inches of air space
above and below the chassis. This is necessary for proper ventilation and heat dissipation.
Secure the SmartSwitch 6500 to the equipment rack using the screws provided with the equipment
3.
rack. The chassis is secured by ten screws, five screws per side (see Figure 2-3).

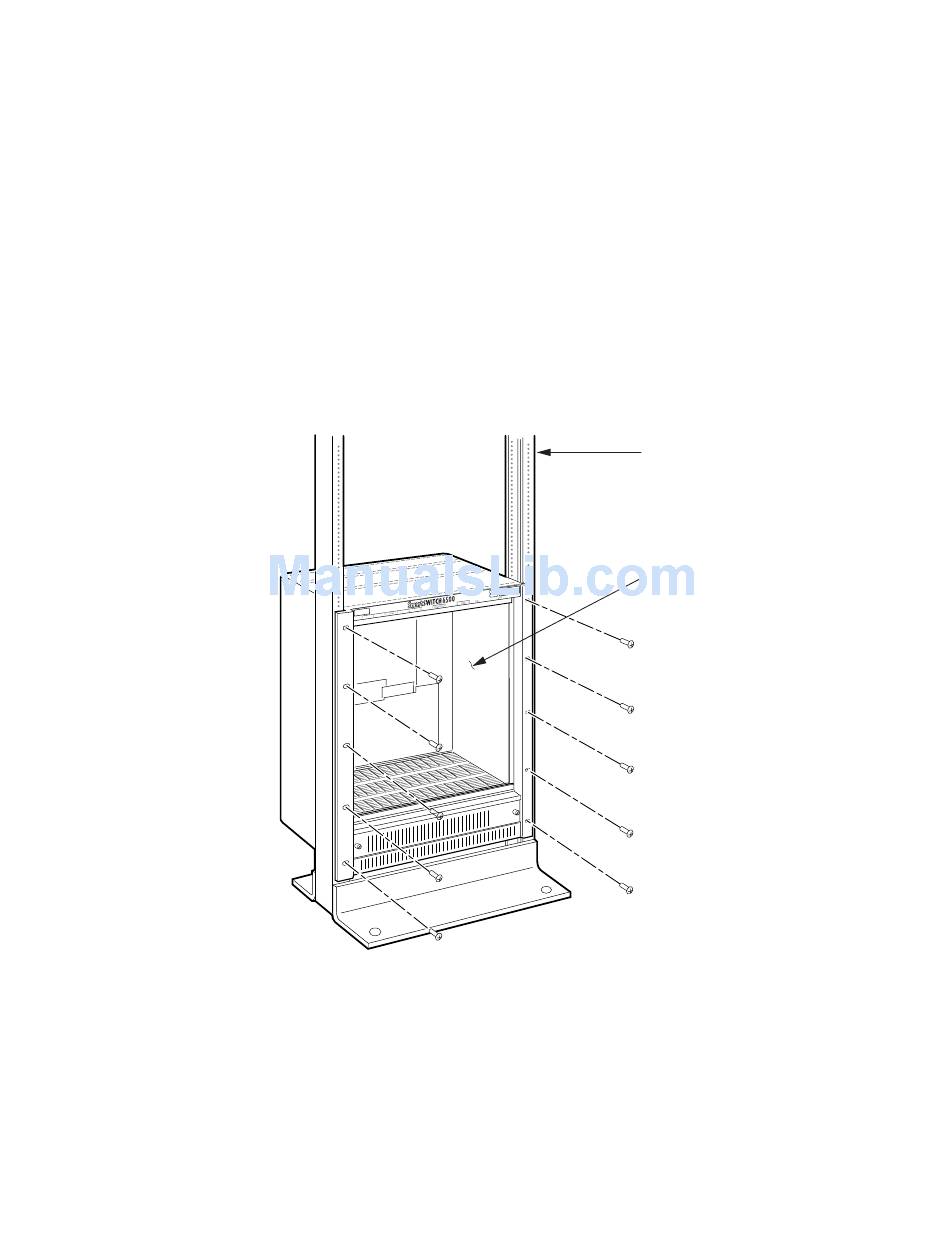

Figure 2-3 Rack mounting the SmartSwitch 6500 chassis

2.2.2

Installing The Power Supplies

1. Using a flat blade screwdriver, unscrew and remove the metal power supply blanks. The power
supply blanks reside in the slots labeled PS1 and PS2.
Switch Installation and Assembly
Rack Mount
Chassis
Install
Mounting
Hardware
(10 Places)
SmartSwitch 6500 User Guide 2-5
