7.3 ALPHANUMERIC DISPLAY AND LEDS 7 KEYPAD AND DISPLAY

7.3.2 LEDS

The faceplate of the MIB relay has six LEDs that show the relay status, as well as pickup and trip status. LEDs are
grouped in two columns and three rows, as shown in Figure 7–3:
.

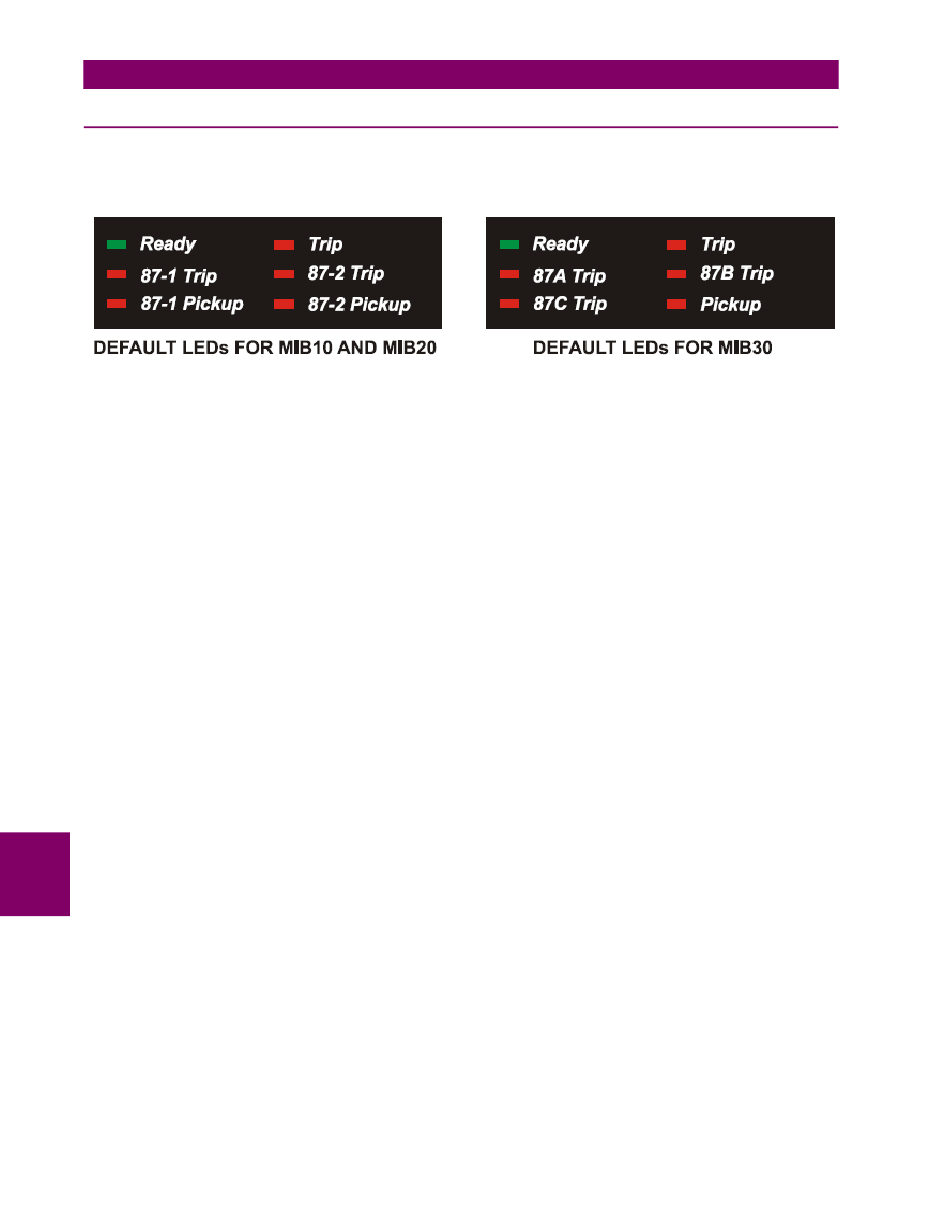

Figure 7–3: LEDS
The two LEDs in the first row (Ready and Trip) are not configurable. For MIF II relays Option 1 or Option 2, the other four
LEDs (by default Phase, Ground, Inst and Pickup) are configurable by the user, using ENERVISTA MII SETUP program.
See Chapter 4 for more information on how to configure LEDs.
The color of the four LEDs in rows 2 and 3 can be changed between red and green in any relay model. The way to do
this is to press simultaneously up and down arrow keys for more than 2 seconds. Then a new menu appears:
7
