7.2 FACEPLATE KEYPAD

7 KEYPAD AND DISPLAY
7.2FACEPLATE KEYPAD

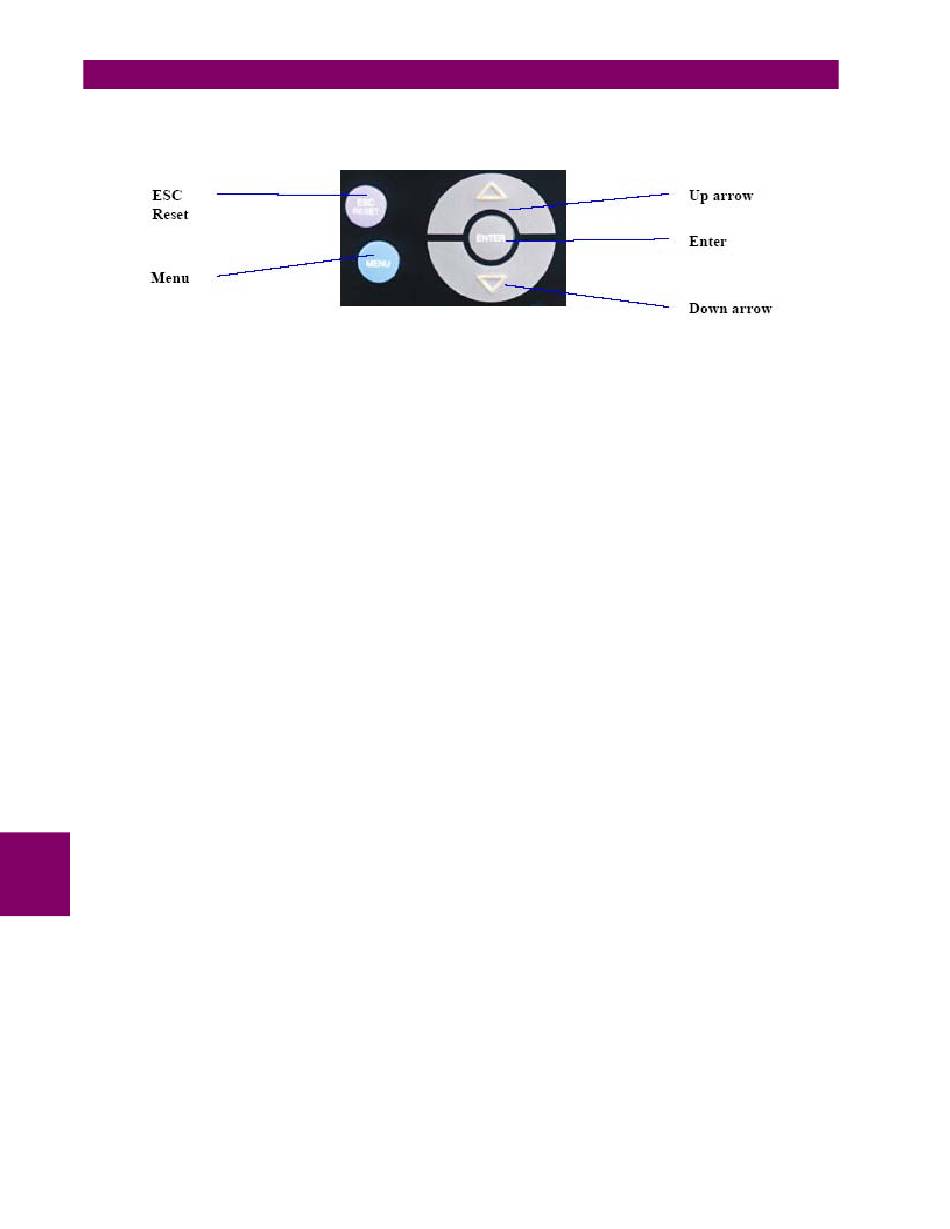

The faceplate keypad is made up of five keys, as shown in Figure 7–1:
MIB
Figure 7–1: KEYPAD
The main screen is the one that shows the three phase and neutral currents. If the relay is not showing the main screen,
you can return to it from any other screen by pressing the Escape key as many times as necessary until exiting the menu
structure.
From the main screen, the Menu key enters the menu structure. From that point on, the user can navigate through the
menu structure using Up and Down arrows to move horizontally, Enter to enter submenus and Escape to exit to the
upper level.
7
7-2 MIB High Impedance Bus Differntial Relay GEK-106426B
