7 KEYPAD AND DISPLAY
7.3ALPHANUMERIC DISPLAY AND LEDS
The faceplate display of the MIB relay is a 16 column x 2-row characters alphanumeric LCD display. Messages in the
display are shown in the English language.
The display contrast can be modified simultaneously pressing Escape + arrow:
•
Escape + up arrow increases the contrast
•
Escape + down arrow decreases the contrast
If the keypad is not in use during 15 minutes, the display turns automatically off and returs to the main screen. Pressing
ESC/RESET key, the display is automatically turned on and it shows the main screen with phase and ground .
Pressing any other key, corresponding screen in the menu structure is shown. AS an example, pressing ENTER key the
Thermal Capacity Used screen is shown, as pressing this key the display enters in One Key OPeration menu..
GEK-106426B

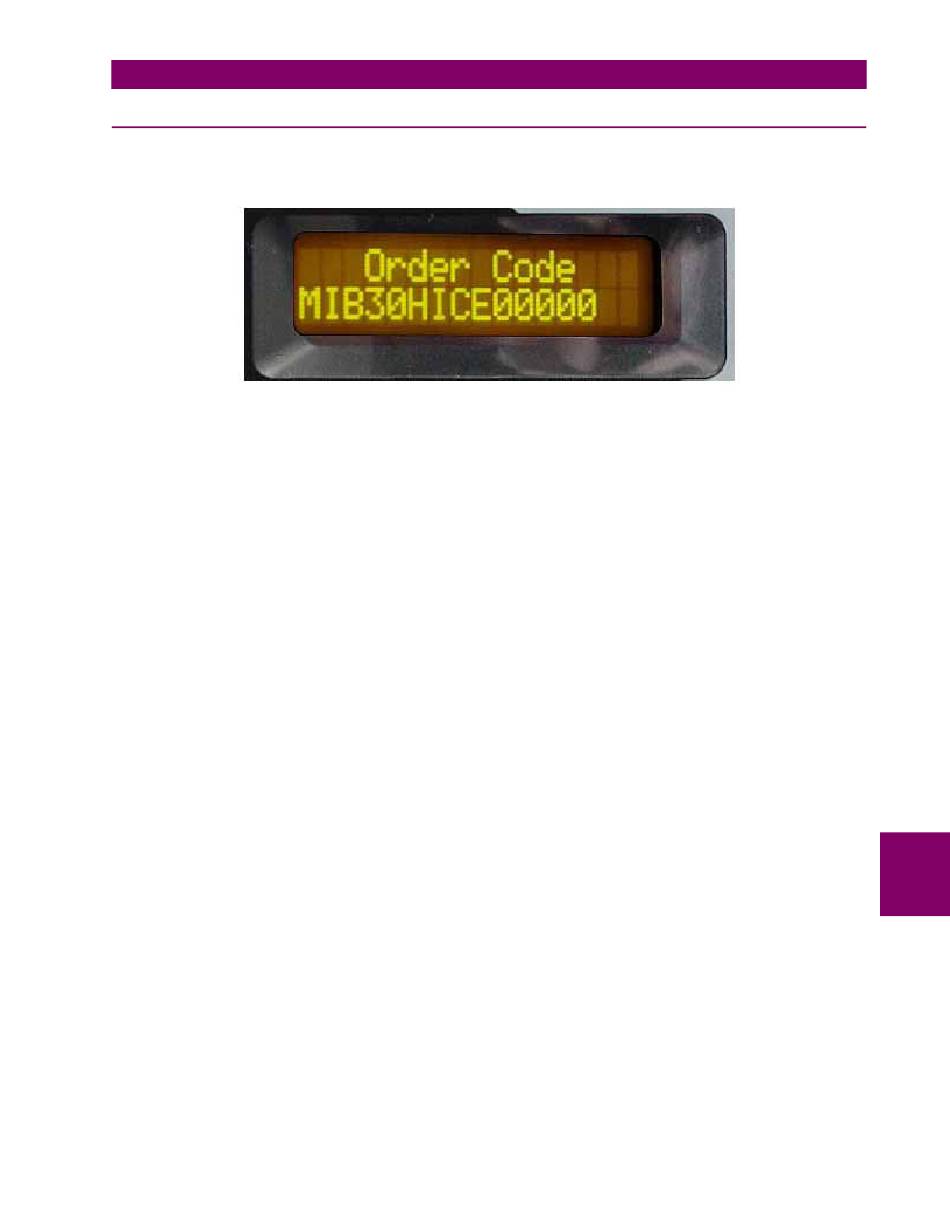

Figure 7–2: DISPLAY
MIB High Impedance Bus Differntial Relay
7.3 ALPHANUMERIC DISPLAY AND LEDS
7.3.1 DISPLAY
7
7-3
