8.4 WIRING AND NECESSARY EQUIPMENT

8.4WIRING AND NECESSARY EQUIPMENT
Necessary equipment:
• 1 AC current source.
• 1 DC voltage power supply.
• 1 timing device.
• 1 Multi-meter.
Optionally, it is advisable to have a PC available, with the ENERVISTA MII SETUP software installed.

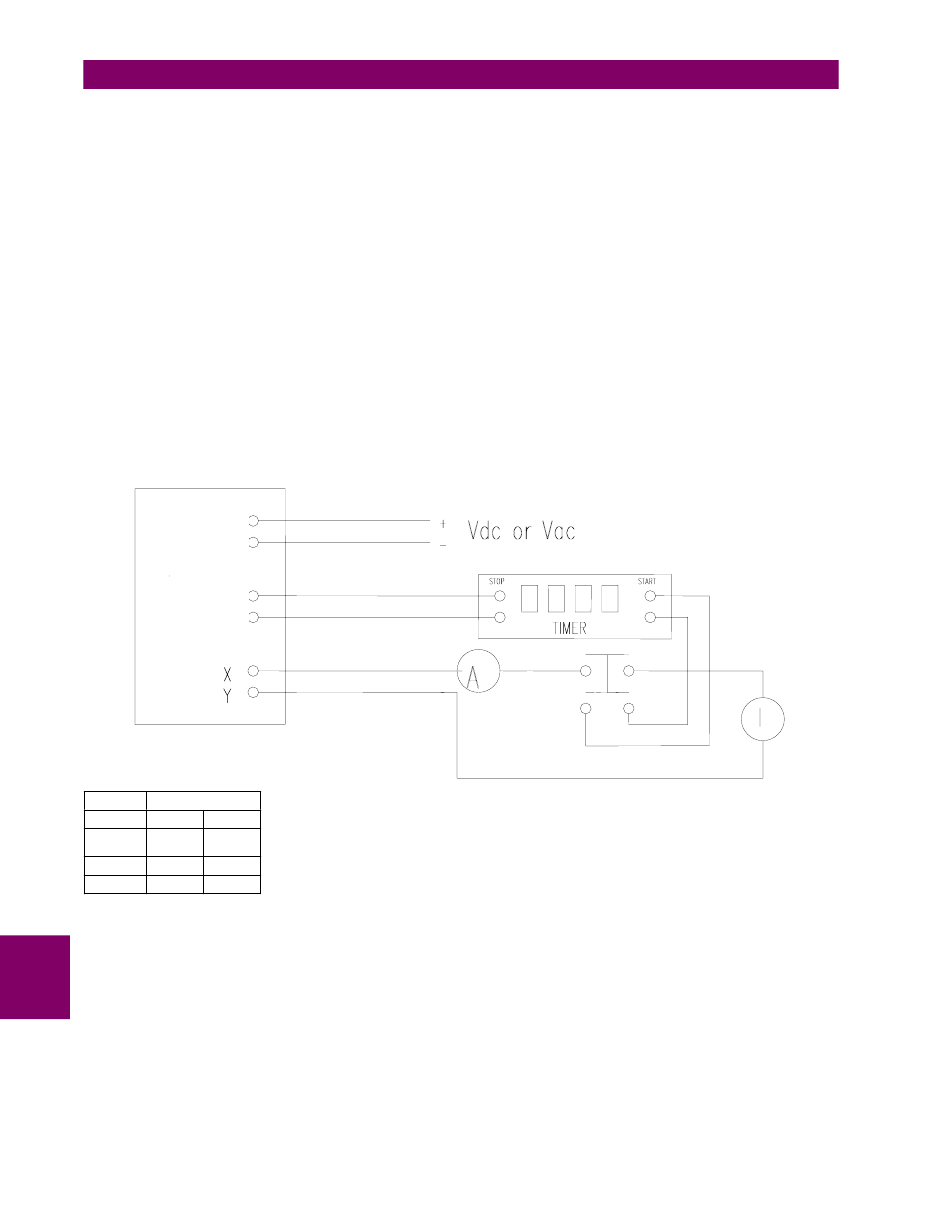

Relay wiring diagram.
Connect the relay as shown in Figure 8–1:
For safety reasons, the external protection earth terminal should be securely grounded.
Supply the unit through terminals H1 and H2 at the rated DC voltage.
MIB
Phase MIH Module
X
A C1
B C3
C C5
NOTE: Terminals for current injection
8
8-4
H1
H2
H5
H6
Y
C2
C4
C6
Figure 8–1: TEST CONNECTIONS FOR
MIB High Impedance Bus Differntial Relay
8 RELAY COMMISSIONING
MIB RELAY
Iac
GEK-106426B
