6.1 INPUT CONFIGURATION 6 I/0 CONFIGURATION
assigned to the input, and all of them have been inverted. Finally, to validate the selected configuration, the user must
click on the OK button both in the "OR ASSIGNMENT" and the "I/O CONFIGURATION" screens..

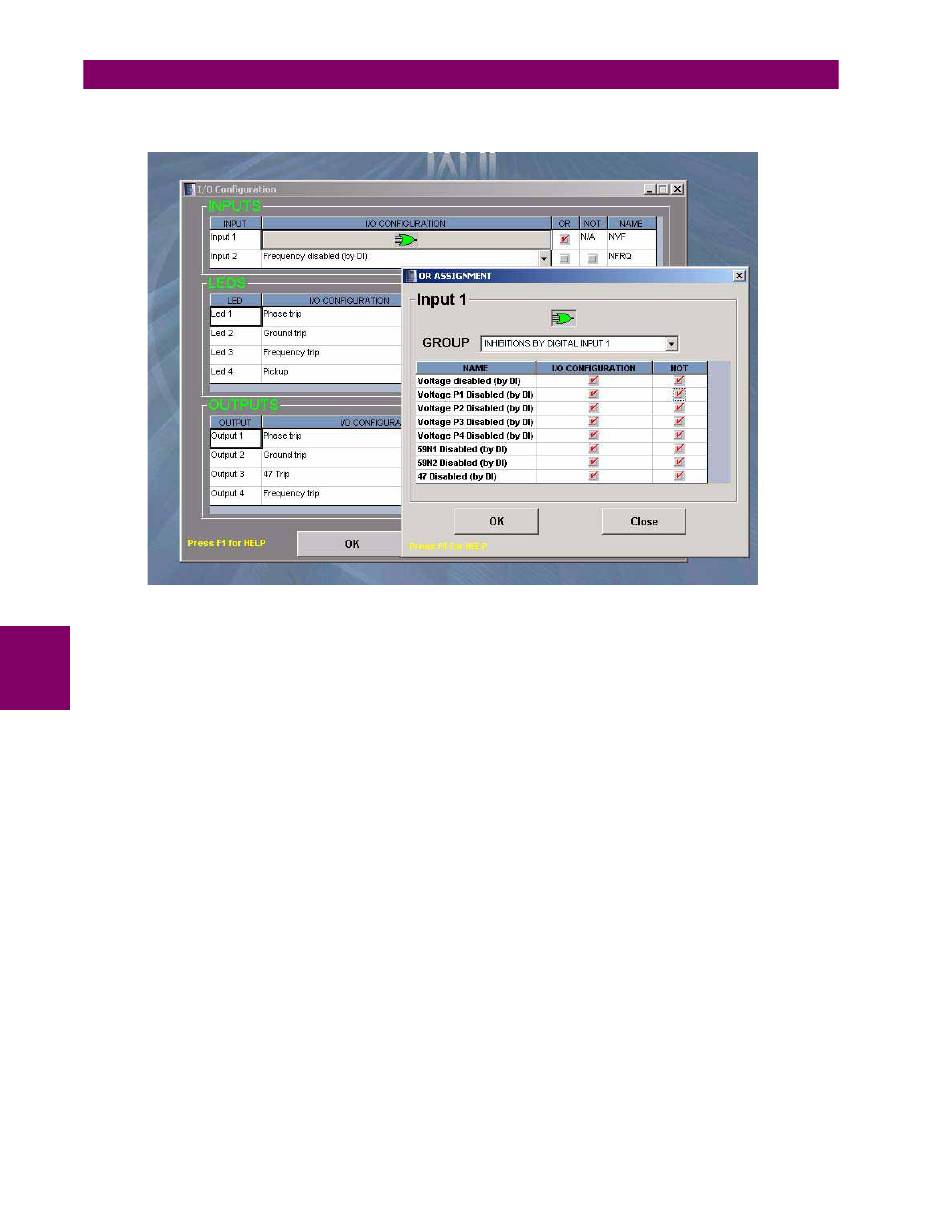

Figure 6–2: INPUT CONFIGURATION WITH MORE THAN ONE FUNCTION (OR)
