Number - The version number. Each time a new version is created, either with the New
Version command or by getting a job from the panel or an archive, a new version number is
allocated.
Date - The date and time the version was created.
Changed by - The user who created the version.
Description - The description, as entered when the new job version was created.
Type - Uploaded- the new job version was a result of a Get Job. New Job - the user created
a new version manually.
Status - Either Locked- the job has been sent to the panel and is locked against editing or
Editable.

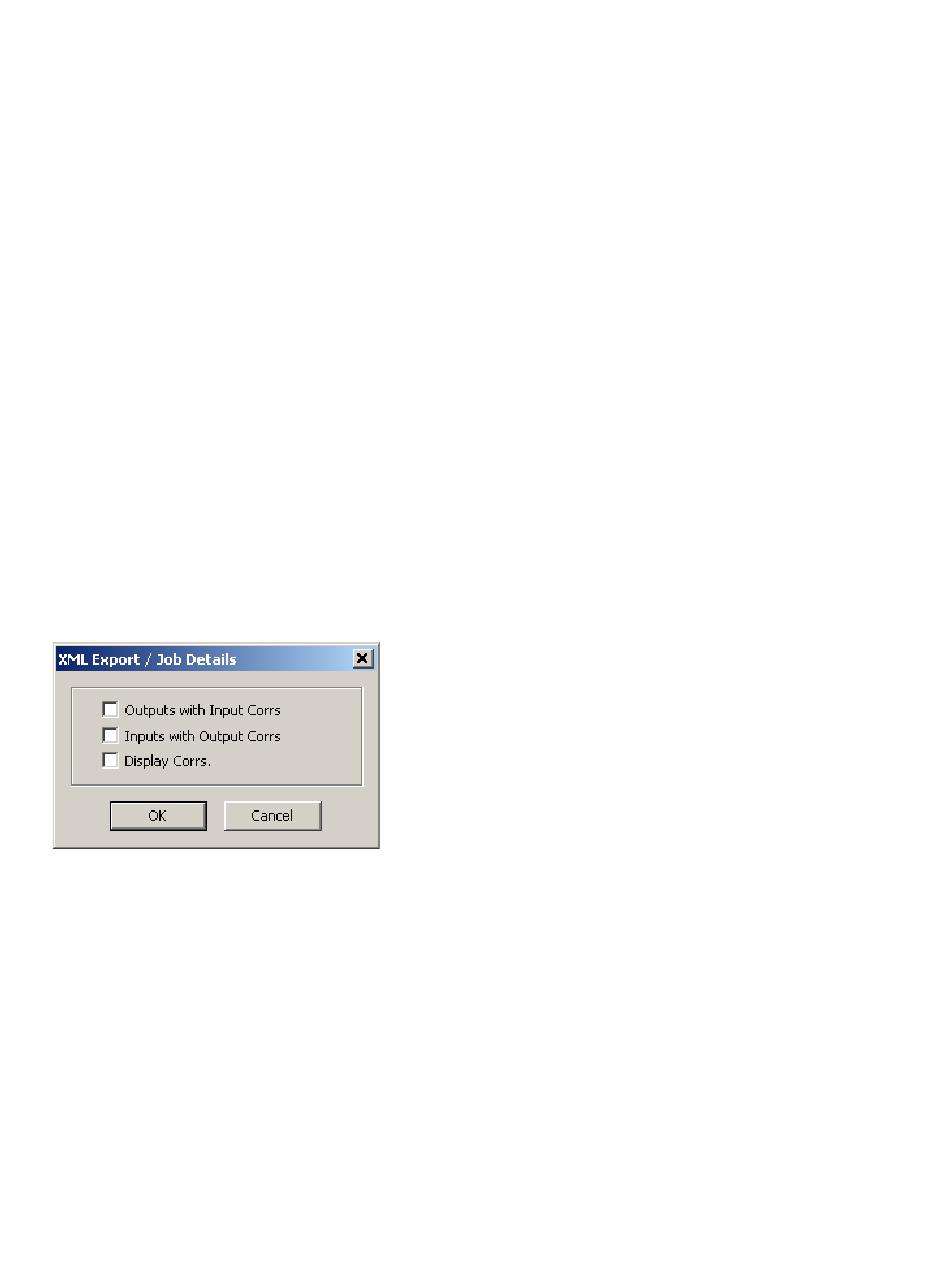

XML Export / Job Details Options Dialog

To access this dialog, select Export Job from the Job Menu. Next choose Job Details (*.xml)
from the Save as type pull down menu. When you click the Save button, this dialog will
appear.
The Job Details report can optionally include the Inputs that are correlated to Outputs,
Outputs correlated to Inputs and display correlations.
Outputs with Input Corrs - If this box is checked, then the Inputs correlated to Output
circuits are included in the XML file in addition to the basic information.
Inputs with Output Corrs - If this check box is checked, then the Outputs correlated to
Input circuits are included in the XML file. Status correlations are included with this option.
Display Corrs - If this check box is checked, then the Display correlations are included in the
XML file.
