Manage Jobs
This dialog appears in response to the Manage Jobs command (Panel Menu).
The configurator detects the Nodes and CPUs actually present and on-line. It then reads the
panel's file system directory from each CPU.

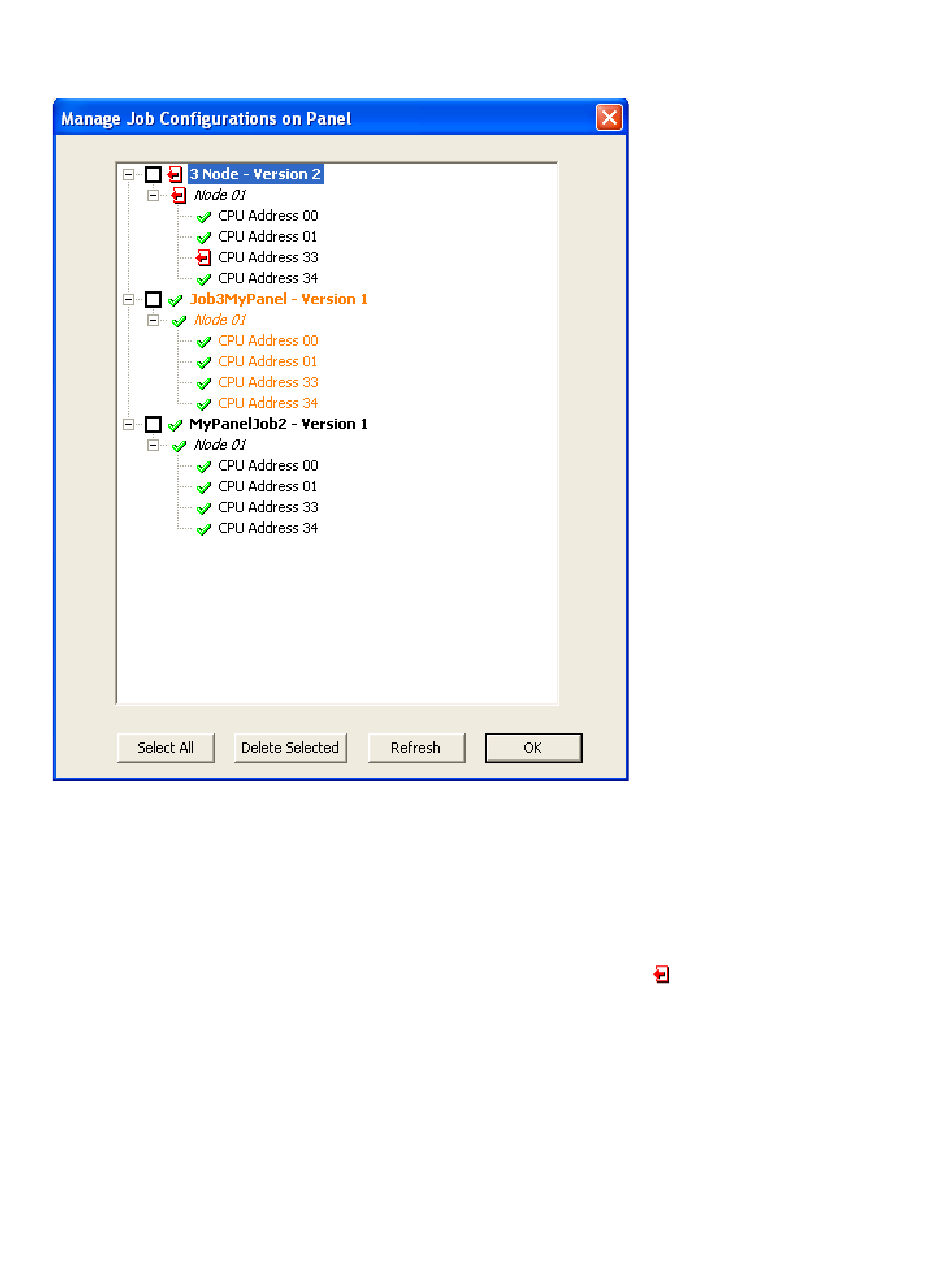

The result is displayed in tree form. Normally, for any given job there will be a file on every
CPU. But if jobs were configured for fewer Nodes and CPUs, files may be missing from some
CPUs. The tree will indicate where there are missing files with the symbol.
In the example, Version 1 of both MyPanelJob2 and Job3MyPanel was configured with an
annunciator at address 33. This was removed in Version 2 of "3 Node". Therefore Job "3
Node" Version 2 is correctly shown with the file missing from CPU 33. If however, both
versions required the annunciator, the user must interpret the result to mean that job "3
Node" version 2 is incomplete.
To delete a job (that is, delete the file from every CPU) right click on the job name and
choose Delete. After all files are deleted the tree is refreshed. User can only delete an
