The CPU Address can be changed. A drop down list appears, listing all of the available
addresses.
The tag can also be edited.
LED Annunciators can be added or deleted from this view. If the last instance of the
Annunciator is deleted a confirmation message appears. When the last Annunciator is
deleted, the item is removed from the job tree.

Loop Controller

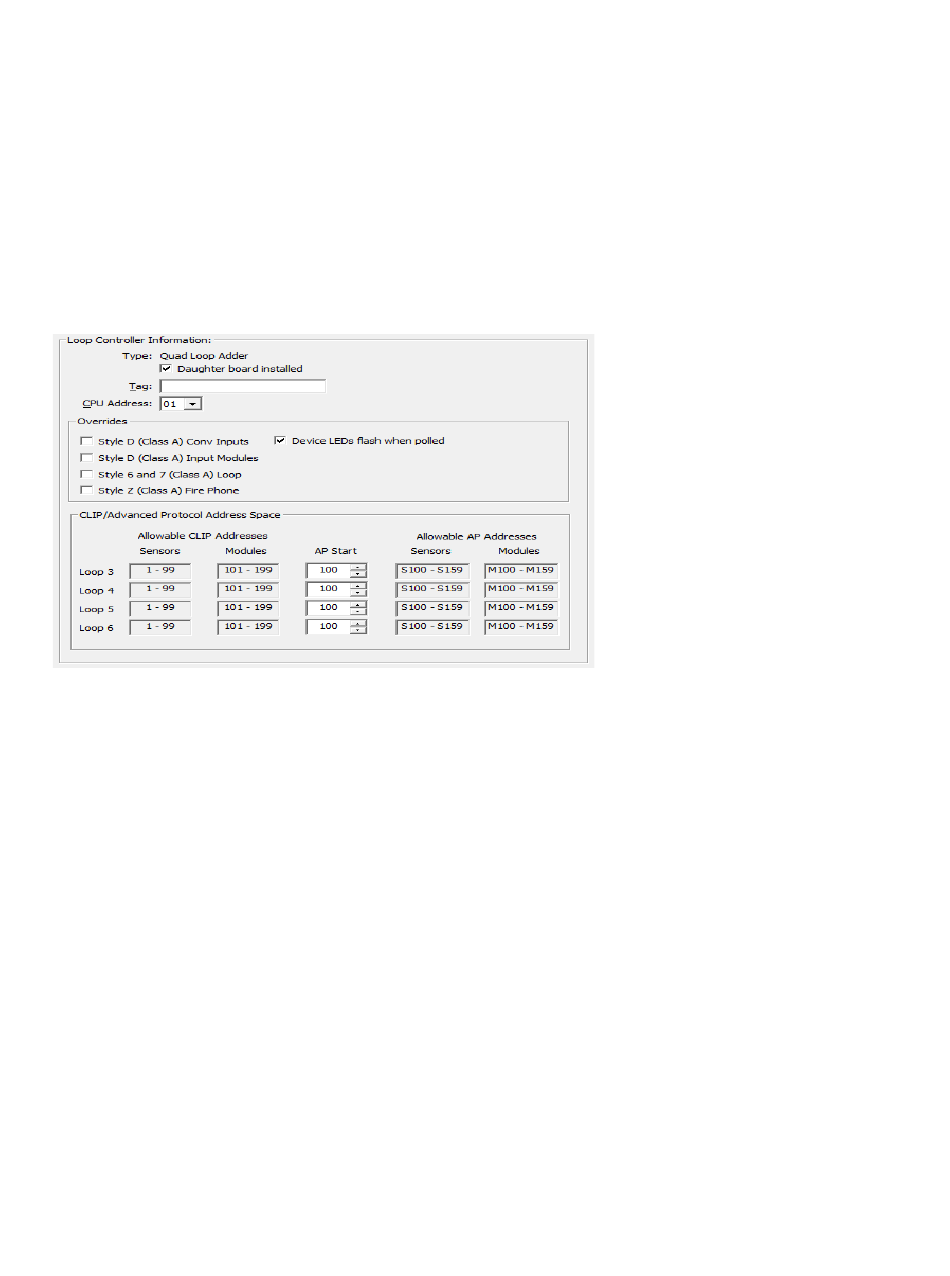

This form is displayed when a Loop Controller is selected in the Job Tree view.
Type - Conv Adder or Loop Adder
•
Daughter board installed - Set to true/checked if the Quad Loop Controller's
•
daughter board is installed. If checked, the firmware monitors the presence of
the additional two loops. Set to false/un-checked if the board is not present.
Tag - Enter a description for the loop controller. This will appear in the Job Tree
•
view
CPU Number - Enter the CPU address for the loop controller. The list shows all
•
available addresses in the internal bus range.
Overrides
•
o These items override similar attributes on the Job Details page. They initially
show the state of the choices made on the Job Details page.
CLIP/Advanced Protocol Address Space - Defines the address boundary
•
between CLIP devices and Advanced Protocol devices
