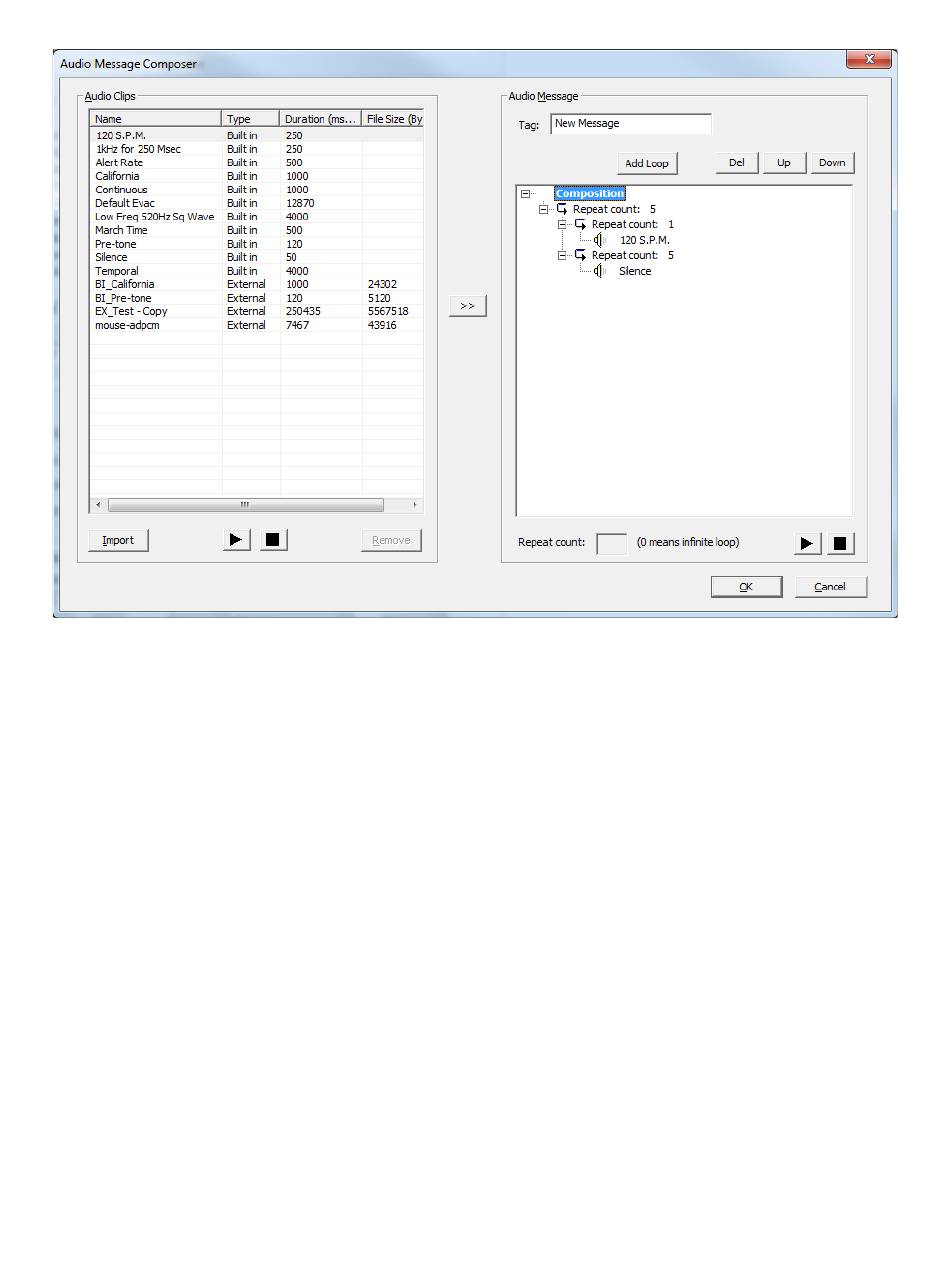

Audio Message Composer dialog
User can define the number of repetitions in the Repeat count edit box (editable only for
loops). Repeat forever (Repeat count = 0) should be used with care. If there are following
clips, they will never be played. Repeat count value is auto populated in the loop node
property upon typing in the edit box. Repeat count 0 can be entered for any loop level.
Audio Clips
This pane lists all of the available clips, or WAV files. Some are built in to the firmware of the
Audio Controller, and are listed here to be used in messages. Others were recorded by the
user and imported. The Built in clips can be simple clips which the firmware uses as building
or firmware messages. There are two simple built in clips: '1 kHz for 250 msec' and 'Silence'.
Each clip can be played using the Play button from 'Audio Clip' section.
Import When this button is pressed a standard file chooser is launched. Browse to the
location of a WAV file. This can be a file you have recorded, or any other suitable wave file.
They must be (.wav) files sampled at 11.025 KHz, 16-bit mono, ADPCM 4-bit. It is also
possible to use RAW (or PCM) in addition to ADPCM, but since this format is not
compressed it takes up more serial flash memory.
The file will copied to the database and given a unique name (a Microsoft GUID). The file
