Print Dialog

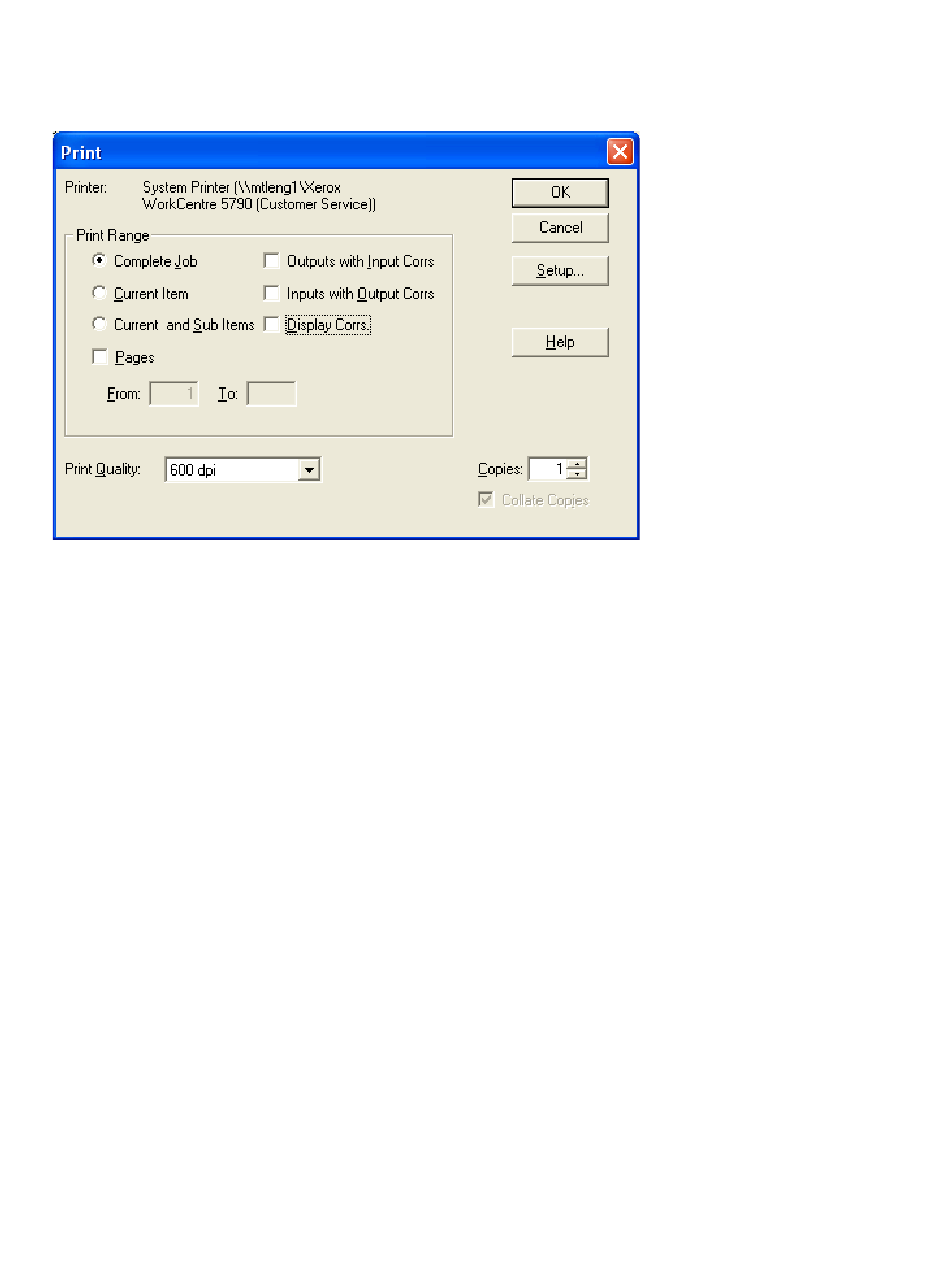

To access this dialog, select Print or Print Preview from the File Menu, or click on the print
button in the tool bar.
Print Range - You can specify the range or scope of the print job using these controls
Complete Job - Regardless of what item in the Job Tree you currently have selected, the
complete job will be printed. The print program will iterate through the network nodes. This
process continues in a depth first manner, until the entire job has been traversed and
printed. Each major item of the tree is started on a new page.
Current Item - If you choose this option, the print job is restricted to details of the tree item
or job component that you currently have selected in the Job Tree. No details of contained
loops, etc. are printed.
Current Item and Sub Items - this option prints details of the currently selected tree item
and all of its sub-items (and those items' sub-items, if any).
Outputs with Input Corrs - If this box is checked, then the Inputs correlated to Output
circuits are printed in addition to the regular print. This is done for any relevant tree items /
loops that are included in the scope of the print job.
Inputs with Output Corrs - If this check box is checked, then the Outputs correlated to
Input circuits are printed. Status correlations are included with this option. This is done for
any tree items / loops that are included in the scope of the print job.
Display Corrs - If this check box is checked, then the Display correlations are printed. This is
done for any relevant tree items / loops that are included in the scope of the print job.
