Deleting a group
1. Right-click the group then click Delete Group
2. Click OK.
Note: A group can only be deleted if it contains no member nodes. If the group has
member nodes, the nodes must first be removed then the group can be deleted.

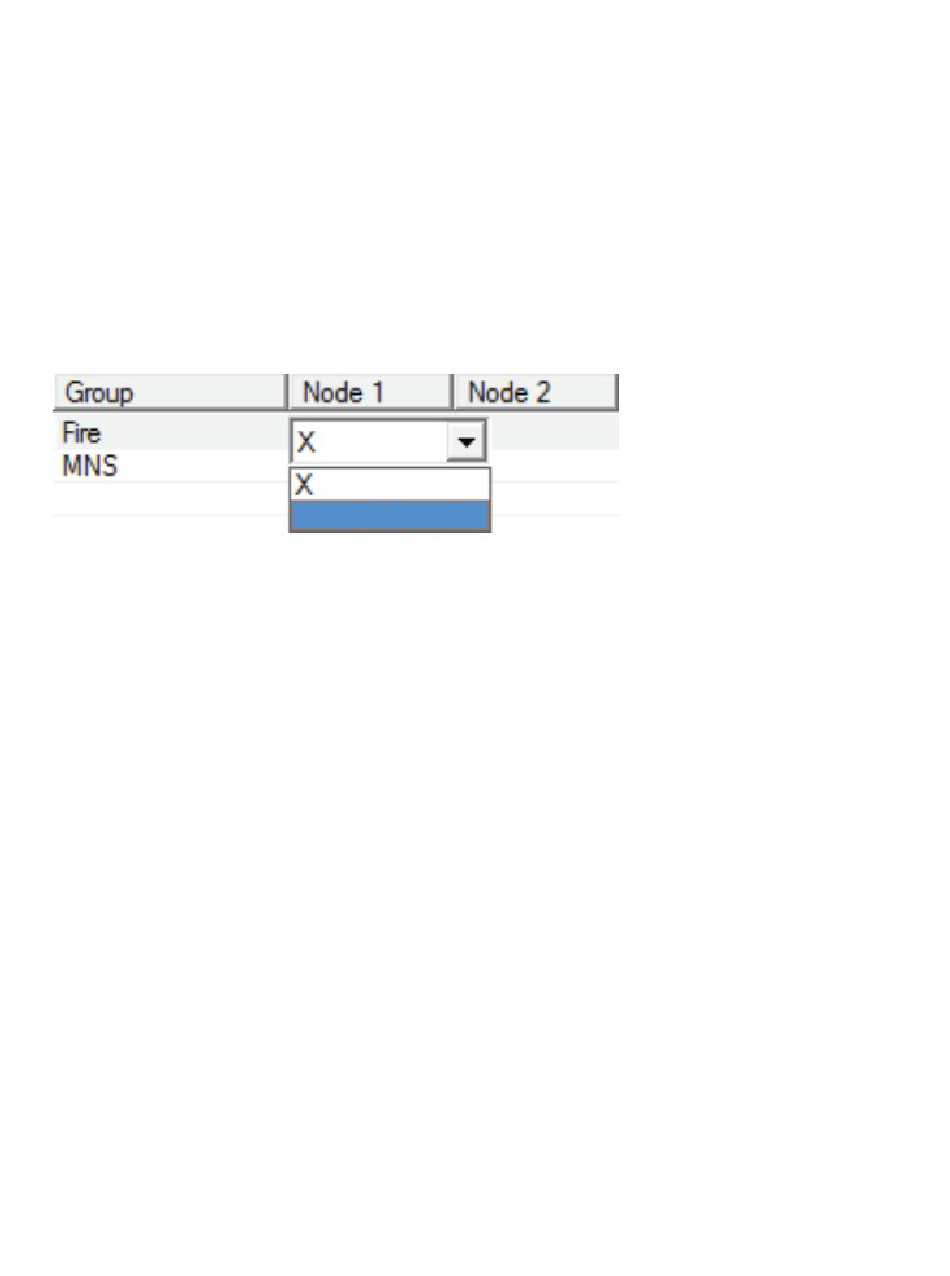

Removing a node from a group
1. Double-click the X under the node.
2. Select the blank line in the drop-down menu.
The node is now removed from the group.

Audio Message Composer

To reach this dialog you must first click on Set Up in the Audio section of the Job Details
page. This opens the Audio Setup dialog. Next you must click on the "Manage Messages..."
button. In the Manage Messages dialog, you either click on Add or select a custom message
and click on Edit to open the Audio Message Composer dialog.
Digitized messages are composed in the form of graph tree nodes using WAV files.
Maximum number of composed messages is 96. Maximum number of entries in one
compose message (audio clips and repeat loops together) is 32. A collection of loops and
clips describes how the wave sounds are to be combined. Repeat count loop property
defines how many times clips under that loop shall be played. For example, a message could
be composed of a sound that is played once, followed by sound that is repeated three
times, and finally, a sound to conclude the message.
Once the message is inserted from the Audio Message Composer left panel (Audio Clips), it
will be inserted under the loop or clip in selection on the right panel (Audio Message). If no
messages are defined on the right panel there is always root node called Composition that
is never deleted; new message in that case will be inserted under the root node
Composition.
