only show unassigned LEDs and Switches as available to be correlated. Correlating the
Common System Status to a display item changes the display item's type and assignment.

Correlations

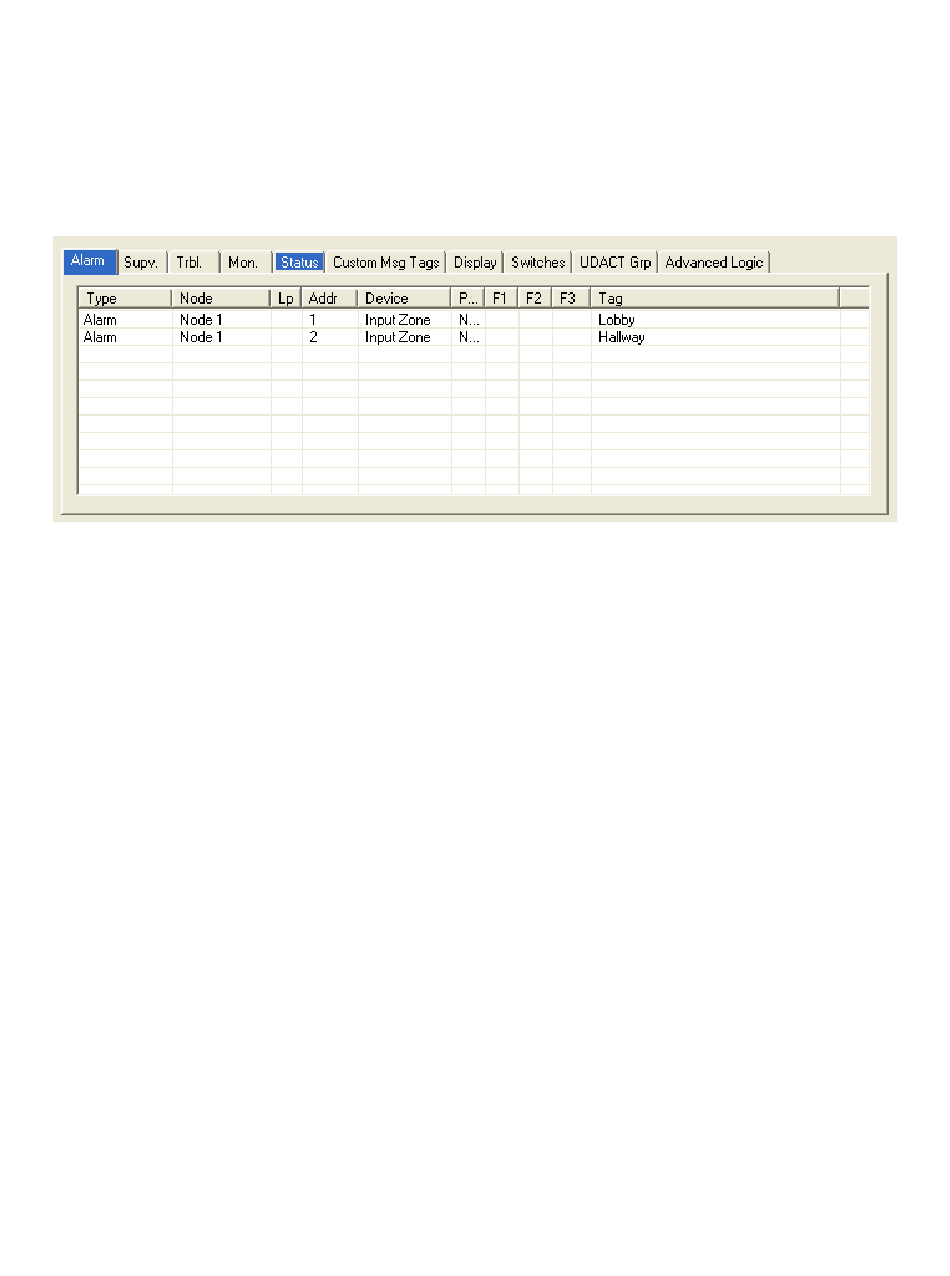

Most of the primary list views (shown in the top right pane) are used in combination with a
correlation view in the bottom right pane. The correlation view is a tabbed pane. Each tab
shows a different category of correlations (circuit, display LED, etc.).
Output Circuit Correlations
If the currently selected circuit(s) is/are outputs then the correlation view typically has tabs
for:
Alarm Zones
•
Supv Zones
•
Trouble Zones
•
Monitor Zones
•
Proving
•
Status
•
Display Points (Output Zones and Bypass LEDs etc.).
•
Switches
•
UDACT Grp
•
Advanced Logic
•
Output Group
•
