System Architecture

This section describes the processor's configuration on the EZ-KIT Lite

board.

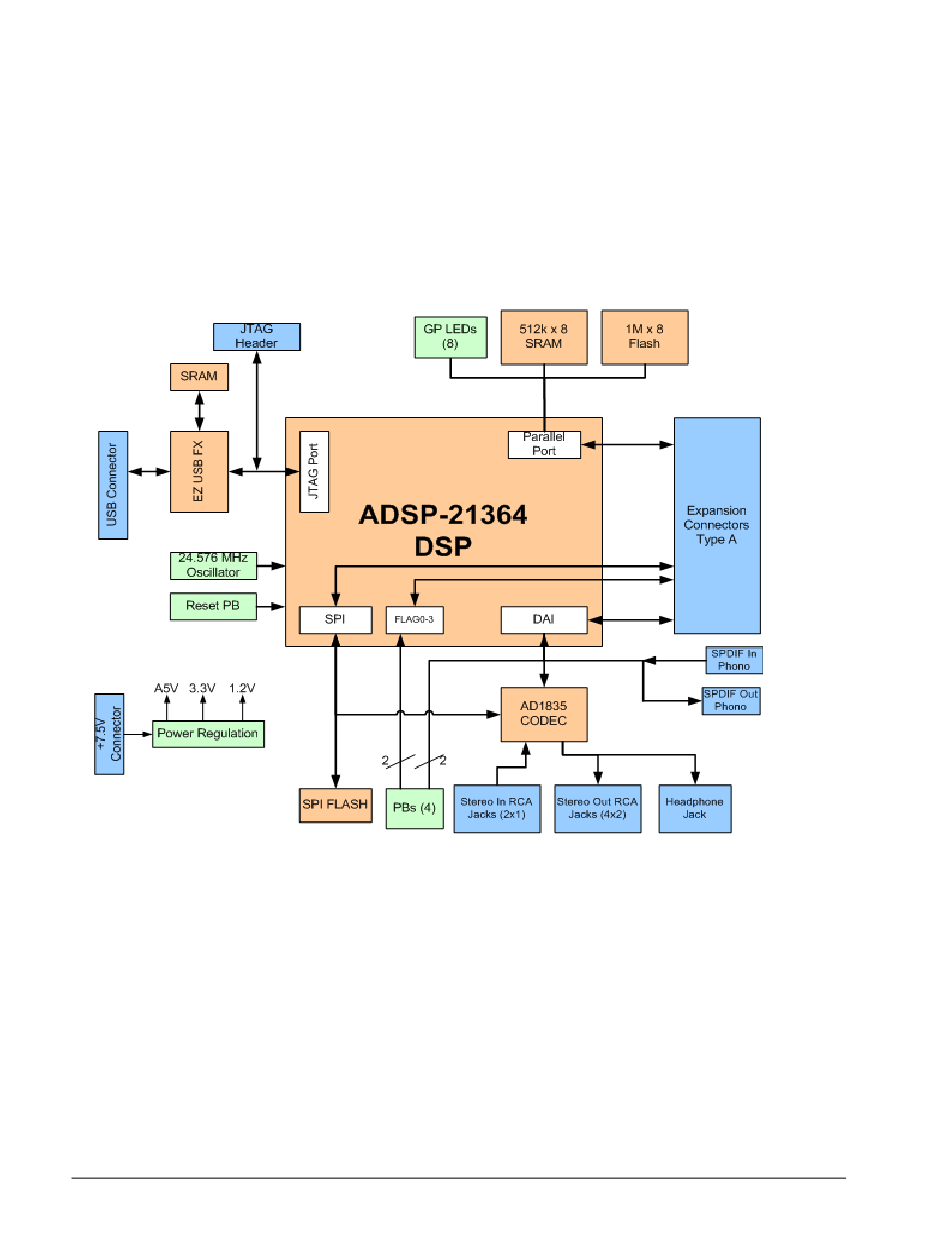

Figure 2-1. System Architecture Block Diagram

The EZ-KIT Lite has been designed to demonstrate the capabilities of the

ADSP-21364 processor. The processor core is powered at 1.2V, and the

IO is powered at 3.3V. Two 0-ohm resistors give access to the processor's

power planes and allow to measure the power consumption of the proces-

sor. The

resistor provides access to the IO voltage of the processor,

R79

and the

resistor provides access to the core voltage plane of the

R80

processor.

2-2

ADSP-21364 EZ-KIT Lite Evaluation System Manual
