and communication correctly initialized with the PC. After USB commu-
nication has been initialized, the only way to reset the USB is by powering
down the board.

Connectors

This section describes the connector functionality and provides informa-
tion about mating connectors.

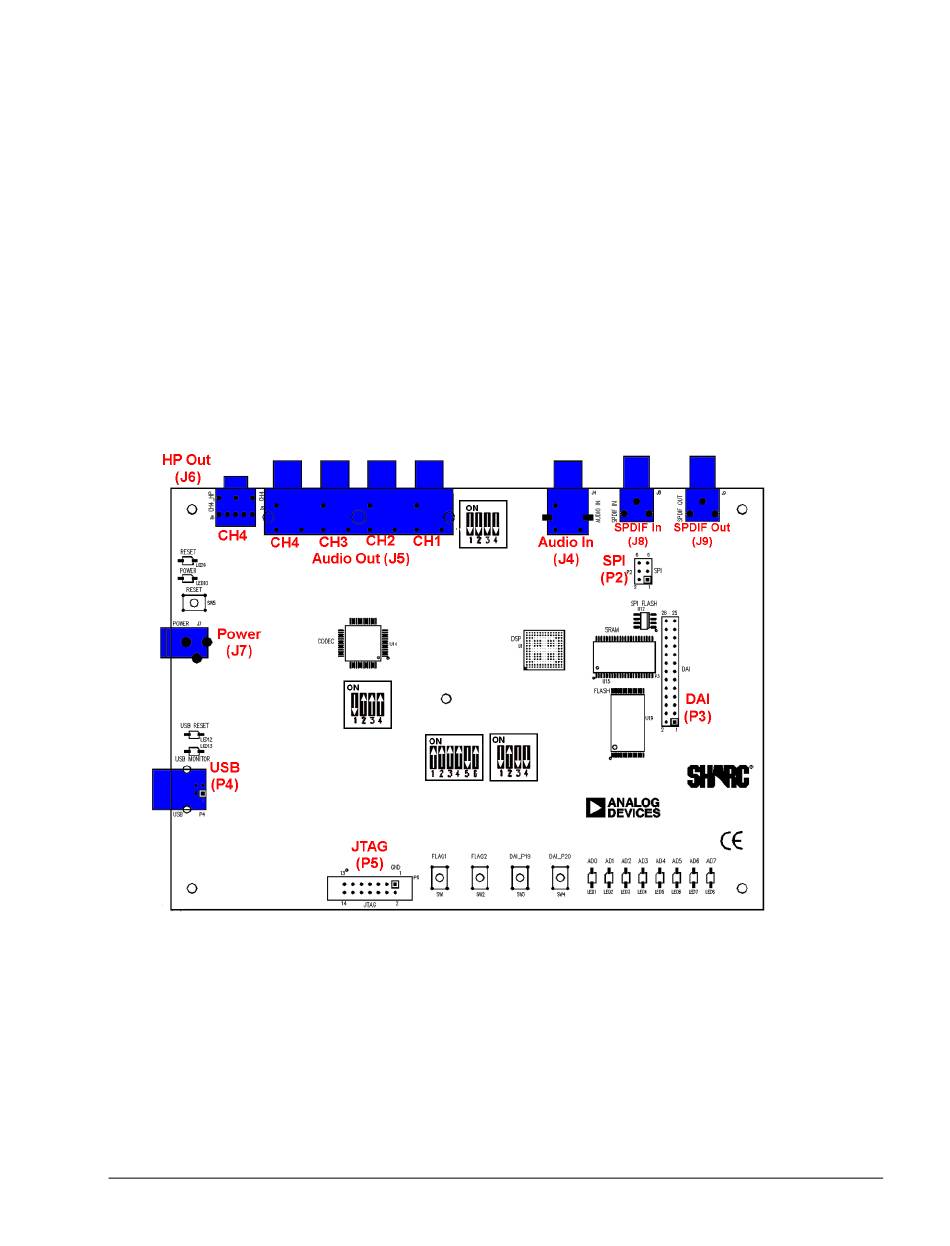

Figure 2-7. Connector Locations
ADSP-21364 EZ-KIT Lite Evaluation System Manual
EZ-KIT Lite Hardware Reference
Figure 2-7 shows the connector locations.
2-15
