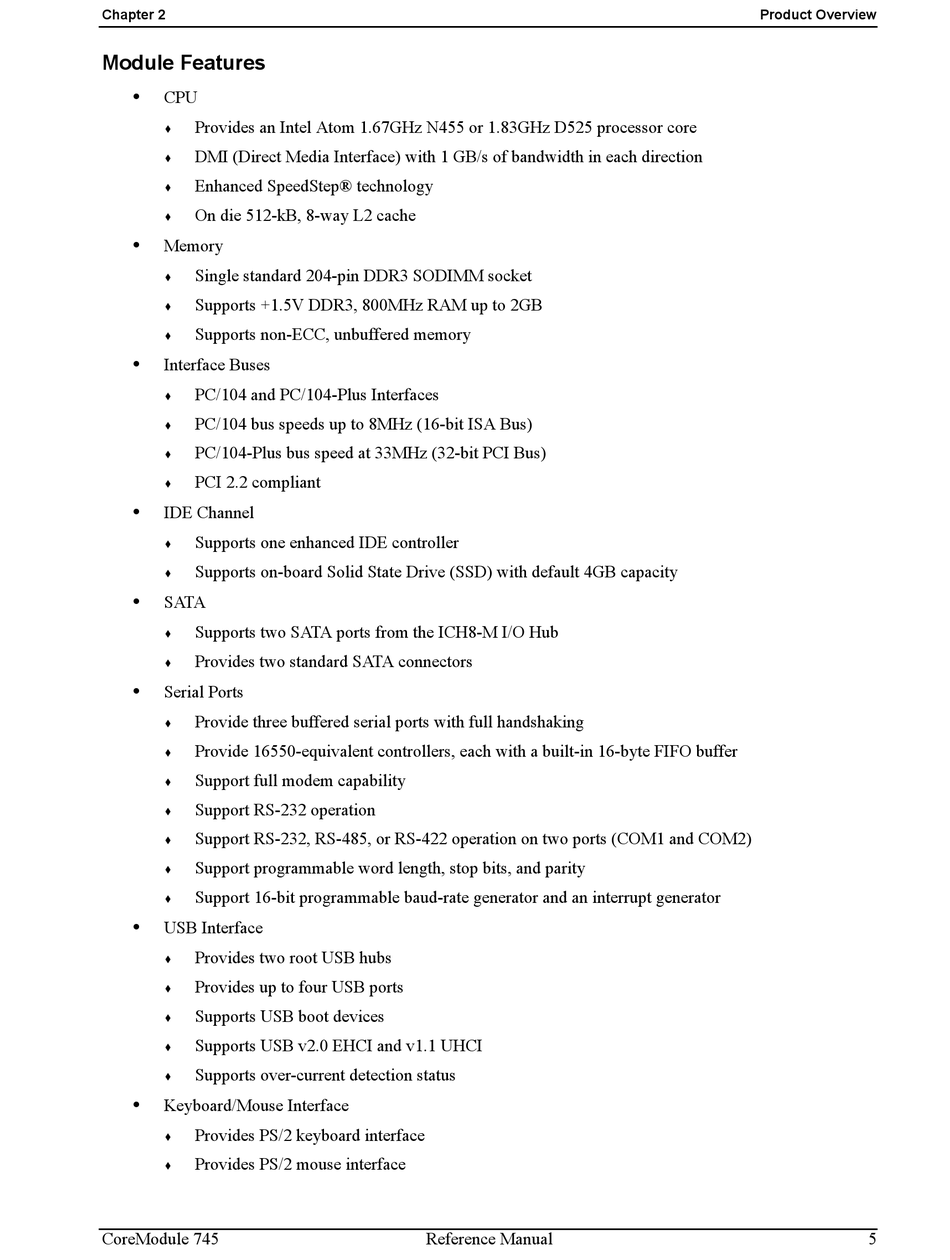

Chapter 2

Module Features

CPU
Provides an Intel Atom 1.67GHz N455 or 1.83GHz D525 processor core
DMI (Direct Media Interface) with 1 GB/s of bandwidth in each direction
Enhanced SpeedStep® technology
On die 512-kB, 8-way L2 cache
Memory
Single standard 204-pin DDR3 SODIMM socket
Supports +1.5V DDR3, 800MHz RAM up to 2GB
Supports non-ECC, unbuffered memory
Interface Buses
PC/104 and PC/104-Plus Interfaces
PC/104 bus speeds up to 8MHz (16-bit ISA Bus)
PC/104-Plus bus speed at 33MHz (32-bit PCI Bus)
PCI 2.2 compliant
IDE Channel
Supports one enhanced IDE controller
Supports on-board Solid State Drive (SSD) with default 4GB capacity
SATA
Supports two SATA ports from the ICH8-M I/O Hub
Provides two standard SATA connectors
Serial Ports
Provide three buffered serial ports with full handshaking
Provide 16550-equivalent controllers, each with a built-in 16-byte FIFO buffer
Support full modem capability
Support RS-232 operation
Support RS-232, RS-485, or RS-422 operation on two ports (COM1 and COM2)
Support programmable word length, stop bits, and parity
Support 16-bit programmable baud-rate generator and an interrupt generator
USB Interface
Provides two root USB hubs
Provides up to four USB ports
Supports USB boot devices
Supports USB v2.0 EHCI and v1.1 UHCI
Supports over-current detection status
Keyboard/Mouse Interface
Provides PS/2 keyboard interface
Provides PS/2 mouse interface
