Chapter 2

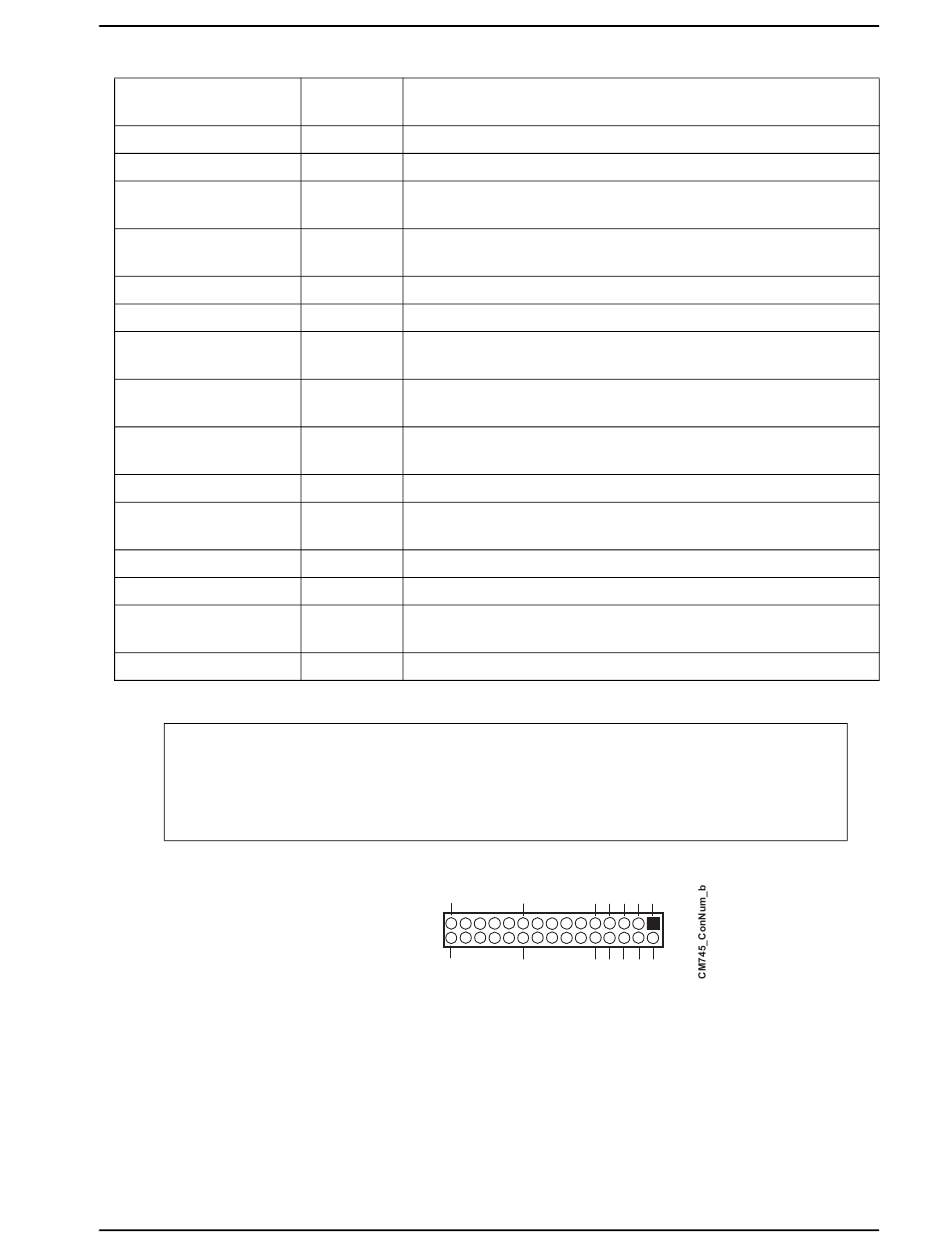

Table 2-2. Module Header, Connector, and Socket Descriptions (Continued)
J7 – Power
J8 – SATA0
J9 – SATA1
J10 – Ethernet
J11 – Ethernet LED
J12 – NS
J14 – DNP
J15 – Keyboard/Mouse
J16 – USB0 and USB1
J17 – USB2 and USB3
J18 – GPIO
J19 – Video
J20 – SMBUS
J22 – Fan
J23 – Utility
J24 – DDR3 SODIMM
NOTE The pinout tables in Chapter 3 of this manual identify pin sequence using the
following method: A 30-pin header with two rows of pins, using odd/even
numbering, where pin 2 is directly across from pin 1, is noted as 30-pin, 2 rows, odd/
even (1, 2) sequence. The second number in the parenthesis is always directly across
from pin 1. See
CoreModule 745
Top 10-pin, 0.100" (2.54mm), right-angle, shrouded header used for
external power connection
Top 7-pin, 0.050" (1.27mm) standard connector used for SATA devices
Top 7-pin, 0.050" (1.27mm) standard connector used for SATA devices
Top 10-pin, 0.079" (2mm) shrouded header used for Gigabit Ethernet
signals
Top 4-pin, 0.049" (1.25mm) shrouded header used for Gigabit Ethernet
LED signals
Bottom Not Supported
Top Do Not Populate
Top 10-pin, 0.079" (2mm), shrouded header for PS/2 keyboard and
mouse signals
Top 10-pin, 0.079" (2mm), shrouded header for USB0 and USB1
signals
Top 10-pin, 0.079" (2mm), shrouded header for USB2 and USB3
signals
Top 10-pin, 0.079" (2mm) header for General Purpose IO signals
Top 30-pin, 0.079" (2mm), shrouded header for LVDS and VGA video
signals
Top 5-pin, 0.079" (2mm), single-row header for SMBus signals
Top 3-pin, 0.079" (2mm), shrouded header for System Fan signals
Top 5-pin, 0.100" (2.54mm), single-row header for Power Button,
Reset Switch, and Speaker signals
Top 204-pin, standard socket for DDR3 SODIMM
Figure 2-5.
29
30-pin, two rows,
Odd/Even, (1, 2)
30

Figure 2-5. Connector Pin Sequences

Reference Manual
9 5 3
19 7 1
20 10 8 6 4 2
Product Overview
11
