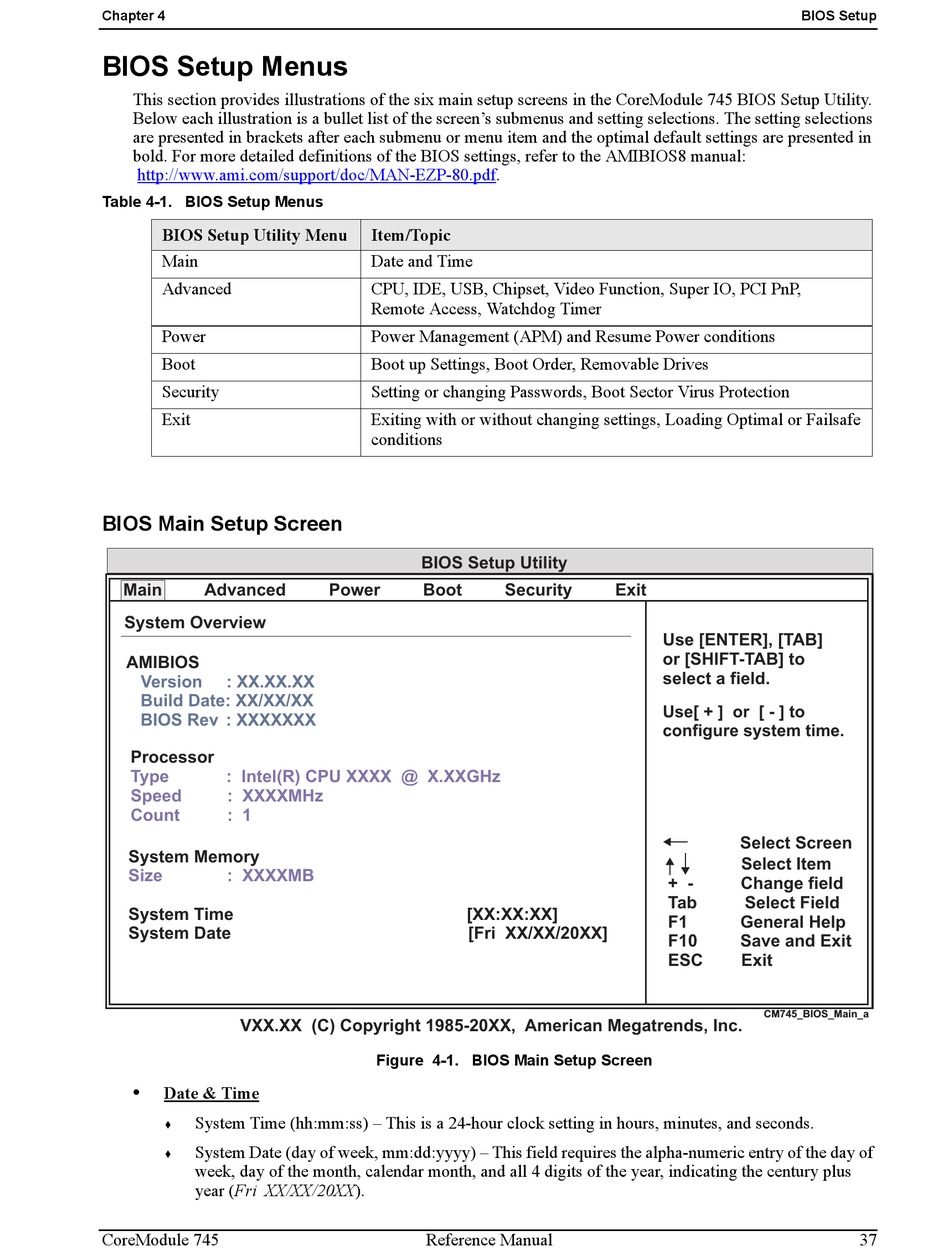

Bios Setup Menus; Bios Main Setup Screen; Figure 4-1. Bios Main Setup Screen - ADLINK Technology CoreModule 745 Reference Manual

Chapter 4

BIOS Setup Menus

This section provides illustrations of the six main setup screens in the CoreModule 745 BIOS Setup Utility.
Below each illustration is a bullet list of the screen's submenus and setting selections. The setting selections
are presented in brackets after each submenu or menu item and the optimal default settings are presented in
bold. For more detailed definitions of the BIOS settings, refer to the AMIBIOS8 manual:
http://www.ami.com/support/doc/MAN-EZP-80.pdf.
Table 4-1. BIOS Setup Menus
BIOS Setup Utility Menu
Main
Advanced
Power
Boot
Security
Exit

BIOS Main Setup Screen

Main Advanced
System Overview
AMIBIOS
Version : XX.XX.XX
Build Date: XX/XX/XX
BIOS Rev : XXXXXXX
Processor
Type : Intel(R) CPU XXXX @ X.XXGHz
Speed : XXXXMHz
Count : 1
System Memory
Size : XXXXMB
System Time
System Date
VXX.XX (C) Copyright 1985-20XX, American Megatrends, Inc.
•
Date & Time
System Time (hh:mm:ss) – This is a 24-hour clock setting in hours, minutes, and seconds.

System Date (day of week, mm:dd:yyyy) – This field requires the alpha-numeric entry of the day of

week, day of the month, calendar month, and all 4 digits of the year, indicating the century plus
year (Fri XX/XX/20XX).
CoreModule 745
Item/Topic
Date and Time
CPU, IDE, USB, Chipset, Video Function, Super IO, PCI PnP,
Remote Access, Watchdog Timer
Power Management (APM) and Resume Power conditions
Boot up Settings, Boot Order, Removable Drives
Setting or changing Passwords, Boot Sector Virus Protection
Exiting with or without changing settings, Loading Optimal or Failsafe
conditions
BIOS Setup Utility
Power Boot Security
[XX:XX:XX]
[Fri XX/XX/20XX]

Figure 4-1. BIOS Main Setup Screen

Reference Manual
Exit
Use [ENTER], [TAB]
or [SHIFT-TAB] to
select a field.
Use[ + ] or [ - ] to
configure system time.
Select Screen
Select Item
+ - Change field
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit
CM745_BIOS_Main_a
BIOS Setup
37
