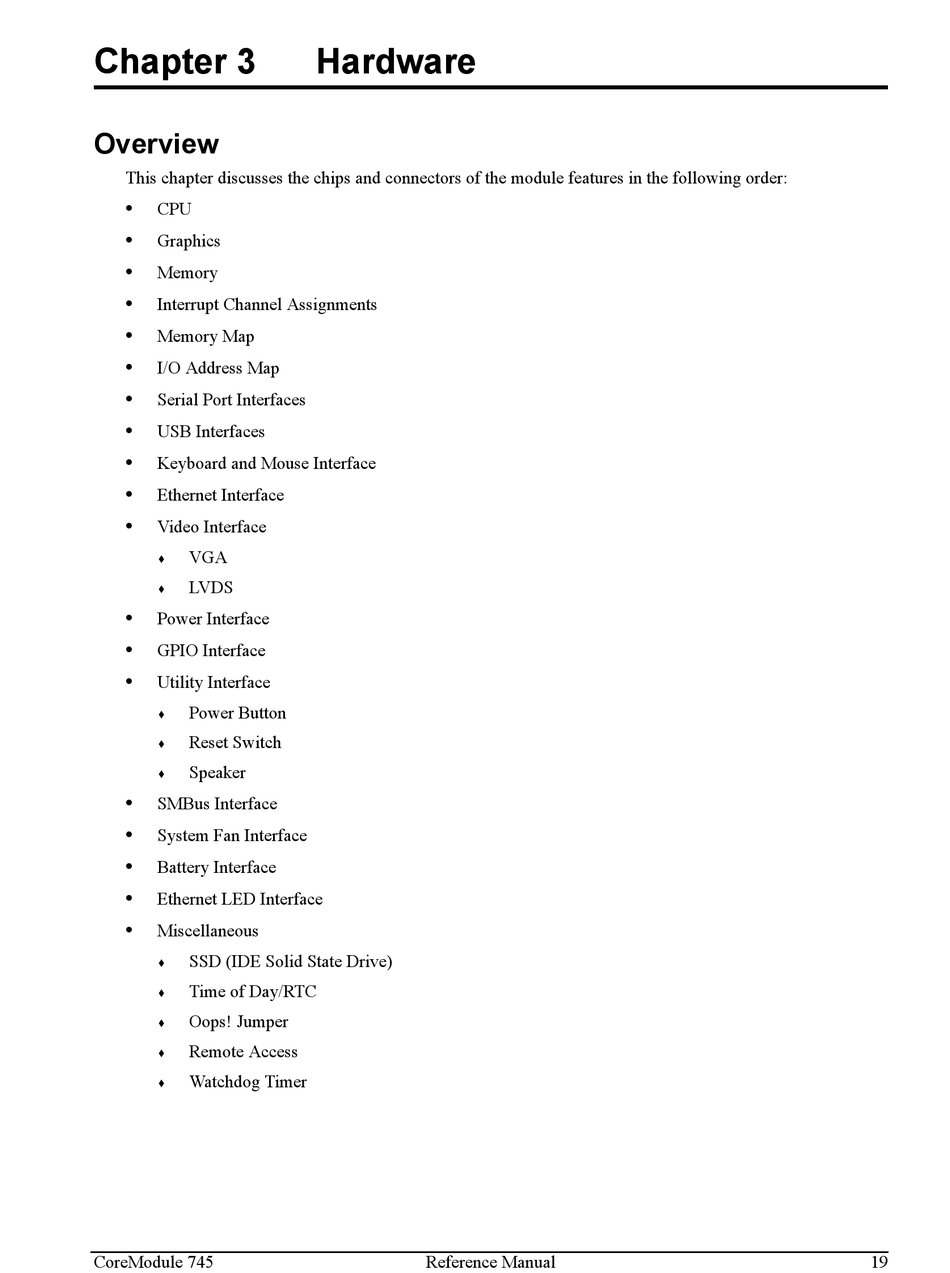

Chapter 3

Overview

This chapter discusses the chips and connectors of the module features in the following order:
•
CPU
•
Graphics
•
Memory
•
Interrupt Channel Assignments
•
Memory Map
•
I/O Address Map
•
Serial Port Interfaces
•
USB Interfaces
•
Keyboard and Mouse Interface
•
Ethernet Interface
•
Video Interface
VGA

LVDS

•
Power Interface
•
GPIO Interface
•
Utility Interface
Power Button

Reset Switch

Speaker

•
SMBus Interface
•
System Fan Interface
•
Battery Interface
•
Ethernet LED Interface
•
Miscellaneous
SSD (IDE Solid State Drive)

Time of Day/RTC

Oops! Jumper

Remote Access

Watchdog Timer

