Conversions: DLP-508
Page 2 of 4
NO PROTECTION
MODE 2 (AUA24 ONLY)
AB IN-SERVICE
CD IN-SERVICE
AB EQUIPPED
CD EQUIPPED
MJ ALARM-RT MISC1 (AUB21)
16 BIT ALARM FIELD (AUB24)†
MJ ALARM-RT MISC2 (AUB21)
UNUSED (AUB24)
* Always set switch 2 on AUB21 to OPEN.
† Reserved for future use.
‡ Always set switch 7 on AUB24 to OPEN.
FUSE
NOTE:
1. OPEN WHEN DEPRESSED AWAY FROM THE NUMBER
CLOSED WHEN DEPRESSED TOWARDS THE NUMBER

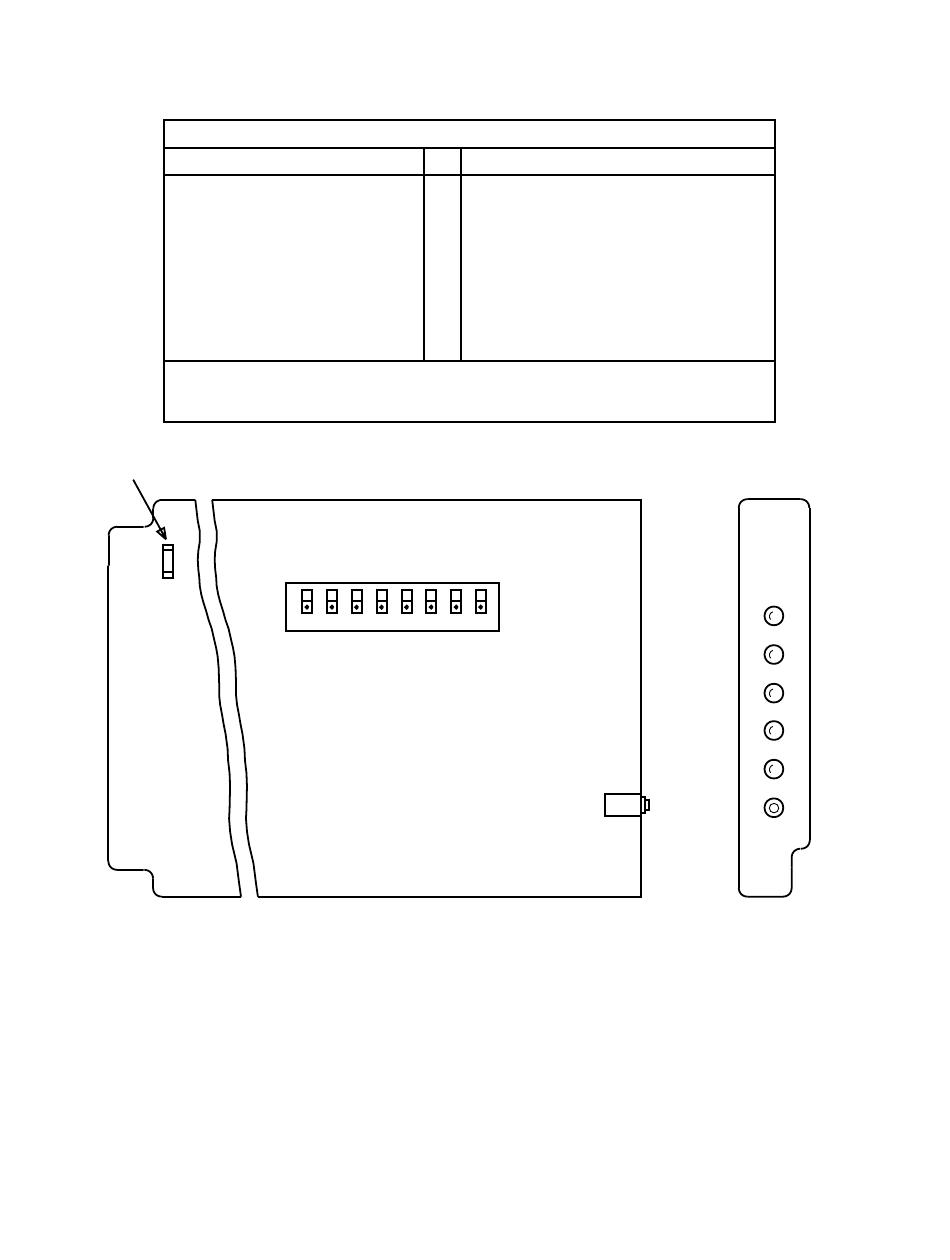

Figure 1 – AUB24 RT ADU Option Switch Settings
AUB21 and AUB24 SWITCH SETTINGS
CLOSED
(S2)
1 2 3 4 5 6
(NOTE 1)
OPEN
S2
1 PROTECTION LINE
2 DS1 (AUA21)*; MODE 1 (AUA24 ONLY)
3 AB PRE-SERVICE
4 CD PRE-SERVICE
5 AB UNEQUIPPED
6 CD UNEQUIPPED
7 MN ALARM-RT MISC1 (AUB21)
13 BIT ALARM FIELD (AUB24)‡
8 MN ALARM-RT MISC2 (AUB21)
UNUSED (AUB24)
7 8
363-205-401
Issue 7, March 1997
Lucent
AUB_
FAIL
MJ
MN
FE
NE
S3
LED
TEST
ADU
