11. Does DMM indicate between −43 and −56 volts?
If YES, then proceed to Step 13.
If NO, then continue with Step 12.
12. Refer to SD-7C158-01 to check connectors on 80E bulk power cabinet and
correct wiring problem. Repeat from Step 7.
6
5
3
P116-1
4
2 OR
3
P116-2
1
2
1
1
2
3
3
4
P117 5
2
6
1
7
8
9

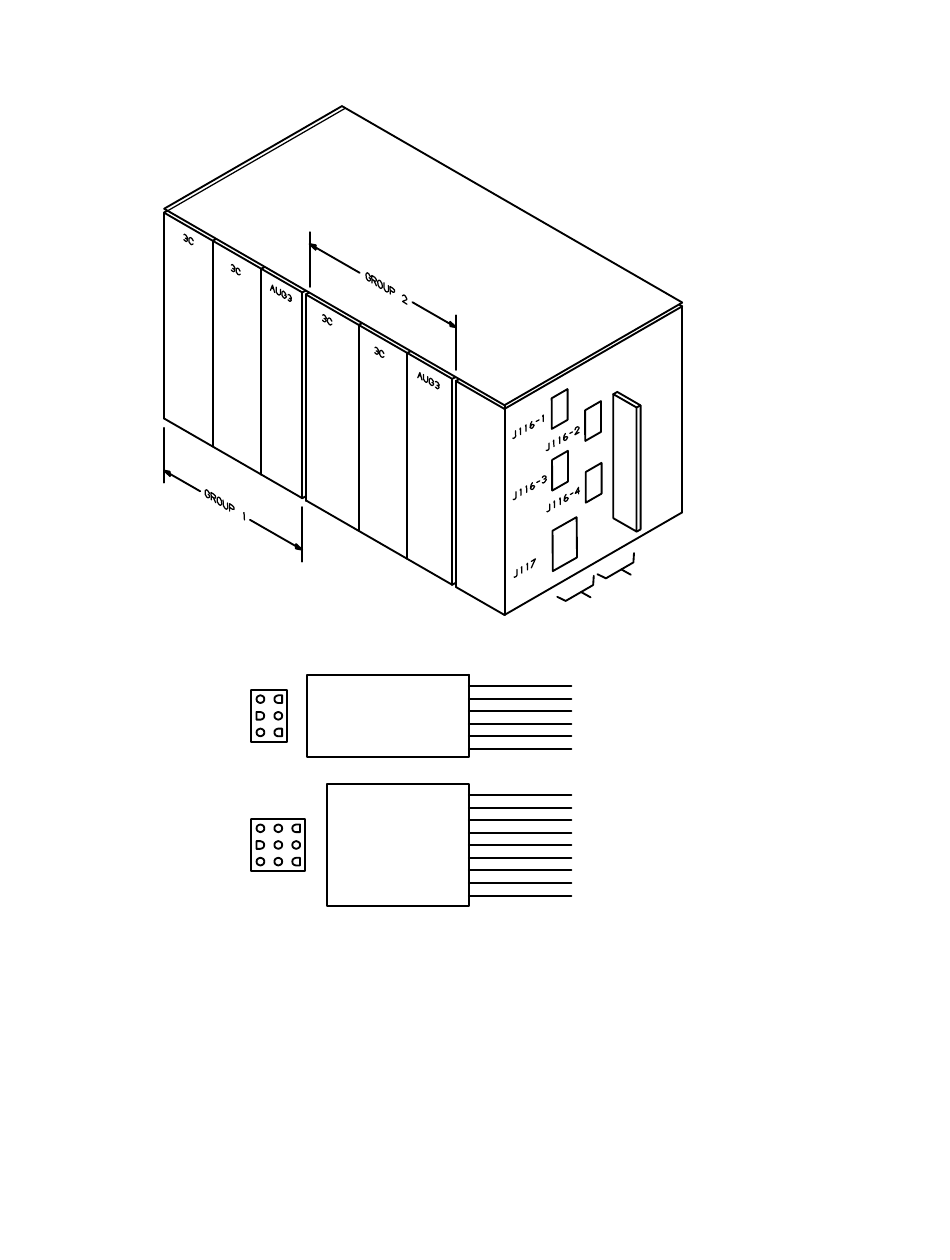

Figure 2 – Connections to Ring Shelf
PRELIMINARY DRAFT
J116-1 THRU J116-4
INPUT
J117
(-48V)
(G) +20 HZ-B
(0) 20 HZ RTN-B
(W-O) -20 HZ-B
(W-G) +20 HZ-A
(BL) 20 HZ RTN-A
(W-BL) -20 HZ-A
(BLU) MJ1
(YEL) MN1
(ORN) MJ2
(VIO) MN2
NC
(RED) FRQ
NC
(BLK) -48V
(WHT) -48 RTN
Power Up: DLP-528
Page 3 of 4
OUTPUT
(-20 HZ)
