9. Place all twelve batteries in the battery compartment as shown in Figure 1.
12
1
Interbattery Bus Bar
- +
1

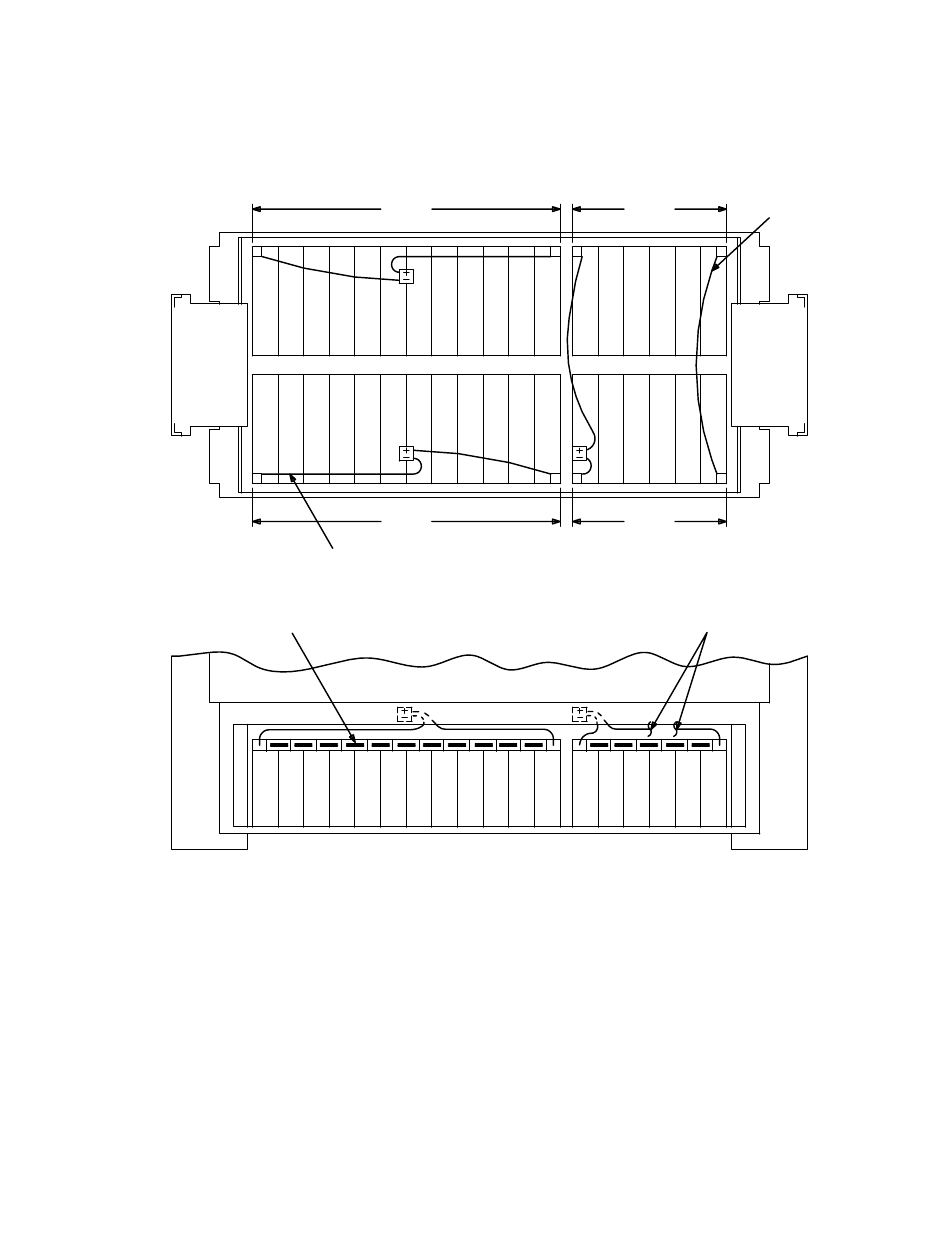

Figure 1 – Layout of Lineage 2000 VR Series Batteries in 80D Cabinet
10. Coat inter-battery bus bars with NO-OXid grease and install on the batteries as
shown in Figure 2. Install 1/4 inch lock washer and nut on battery post. Using
insulated torque wrench with the socket, tighten nut to 55 in-lbs torque. Repeat
for each battery post until all 12 batteries are connected together.
Comment:
String #2
11 10 9 8 7 6 5
2 3 4 5 6 7 8
String #1
Battery String Cable
Front View
- + - + - + - + - + - + - + - +
2 3 4 5 6 7 8
For battery string 3 the 12 batteries are connected in 2
groups of 6 batteries. A cable connects + of battery 6 to - of
battery 7 using the hardware to connect the inter-battery bus
bar.
Top View
Side 2
String #3
4 3 2 1 12 11 10
9 10 11 12 1 2 3
String #3
Side 1
- + - + - + - + - + - +
9 10 11 12 1 2 3
Power Up: DLP-534
