Lucent Technologies SLC 5 Series Manual page 183

Power Up: DLP-524
Page 2 of 8
CUT-OUT
FOR CABLE
ASSEMBLY
CHLORIDE*
BATTERY
CABLE
ASSEMBLY
NOTE: APPLY
PETROLEUM JELLY
OR EQUIVALENT TO
CABLE LUGS, BATTERY
TERMINALS AND
HARDWARE

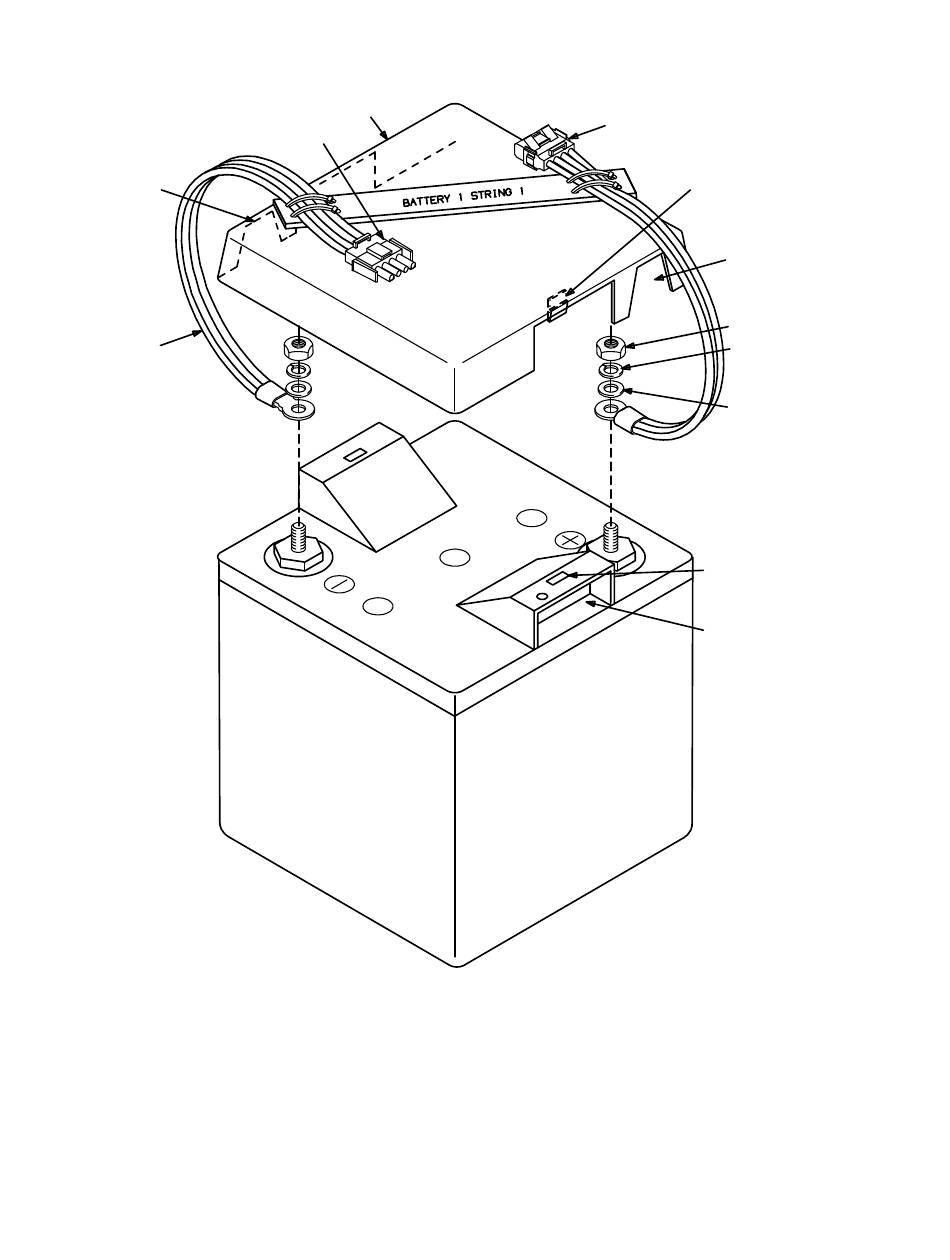

Figure 1 – Detail of Chloride Batteries and Cable Assembly
COVER
BAT(-)
363-205-401
Issue 7, March 1997
BAT (+)
COVER
LATCH
CUT-OUT
FOR CABLE
ASSEMBLY
NUT
SPRING
LOCK WASHER
FLAT WASHER
SLOT FOR
COVER LATCH
ACCESS TO
RELEASE
COVER LATCH
